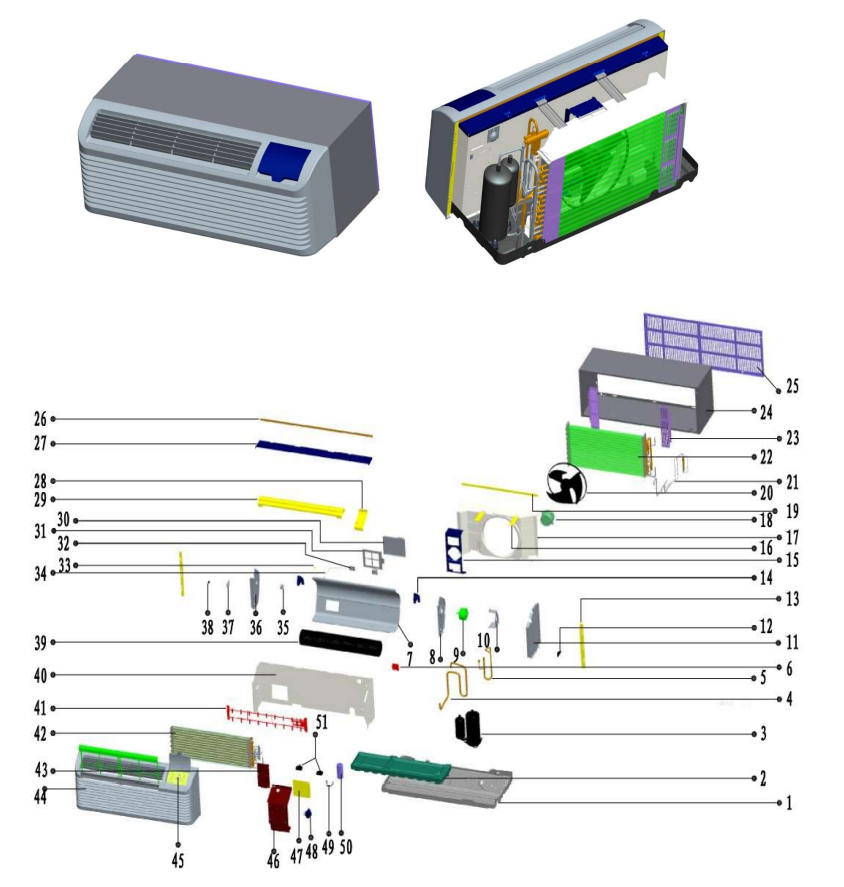

No. | Part Name | Quantity | Part Number | Comments | |
1 | Chassis Assembly | 1 | 801220390279 | ||
2 | Foam drain tray | 1 | 802220890006 | ||
3 | Compressor | 1 | 801401400148 | ||
4 | Air return pipe assy | 1 | 801620390307 | ||
5 | Discharge pipe assy | 1 | 801620590487 | ||
6 | Line press plate | 1 | 801120890051 | ||
7 | The main duct | 1 | 801220590678 | ||
8 | Right side board assy of air duct |
1 | 801220590681 | ||

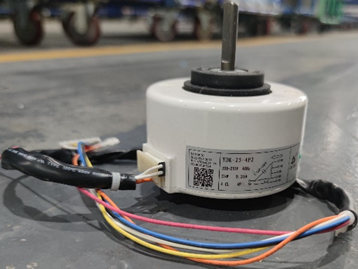

9 | Indoor fan motor | 1 | 802400300024 | ||
10 | Indoor fan motor bracket | 1 | 801220890158 | ||
11 | Cable harness assy for left side panel of E-box |
1 | 801220890395 | ||
12 | Crimp buckle | 1 | 801120890050 | For 20A | |
13 | Left fixing buckle part / Right fixing buckle part |
1 | 801220890167/801 220890170 |
||
14 | Left/Right duct deflector | 1 | 801120890013/801 120890014 |
||
15 | Outdoor fan motor bracket | 1 | 801220890144 | ||
16 | Connecting plate for outdoor air guide ring |
2 | 801220890166 | ||
17 | Air guide ring | 1 | 801120890019 | ||

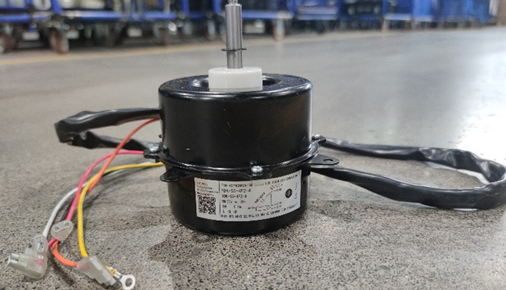

18 | Outdoor fan motor | 1 | 802400400771 | ||
19 | Fixing plate of air guide ring | 1 | 801220890190 | ||

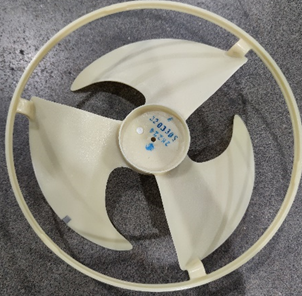

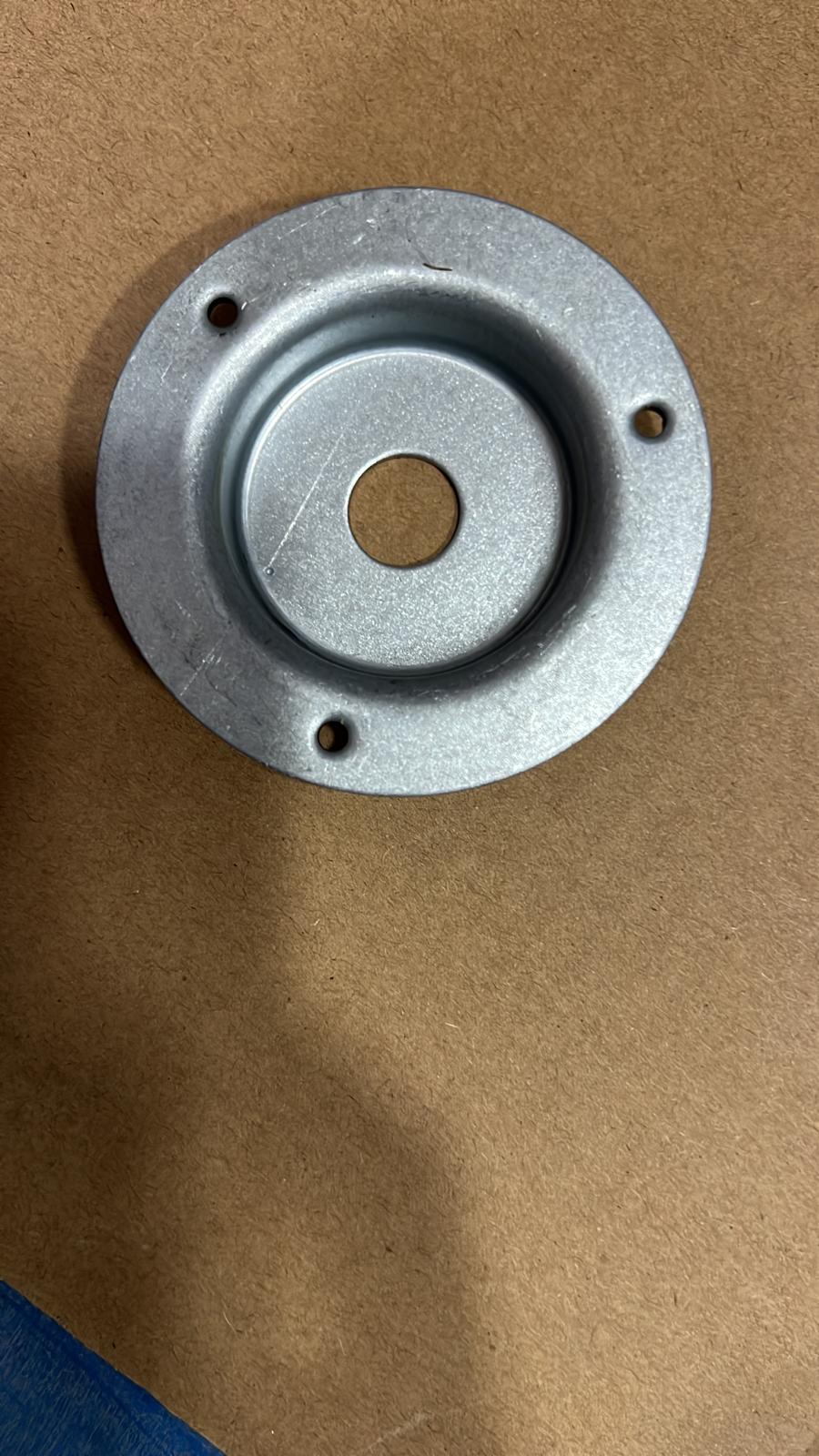

20 | Axial-flow fan blade | 1 | 801120890009 | ||
21 | Capillary assy | 1 | 801620590771 | ||
22 | Condenser assy | 1 | 801520590172 | ||
23 | Air grid | 1 | 801220890146 | ||
24 | Wall sleeve | 1 | 801220890441 | ||
25 | Outdoor grille assy | 1 | 801220690038 | ||
25.1 | Installation buckle of grille | 5 | 801120690007 | No 3-D drawing | |
25.2 | Outdoor grille | 1 | 801220690019 | No 3-D drawing | |
26 | Panel board support | 1 | 801220890165 | ||
27 | Top cover | 1 | 801220890179 | ||
28 | Seal board #2 assy | 1 | 801220590692 | ||
29 | Air outlet assy | 1 | 801220590690 | ||
30 | Fresh air inlet assy | 1 | 801220890225 | ||
31 | Fresh air inlet filter | 1 | 801120890010 | ||
32 | Fresh air inlet support | 2 | 801220890151 | ||
33 | Fresh air inlet clamp | 1 | 801120890017 | ||
34 | Fresh air inlet spring / tube | 1 | 802920890004/801 120890028 |
||
35 | Fixing board of bearing holder |
1 | 802720890002/801 220890156 |
||
36 | Left side board assy of air duct |
1 | 801220590679 | ||
37 | Fresh air inlet rail | 1 | 801120890012 | ||
38 | Fresh air inlet lever | 1 | 801120890011 | ||

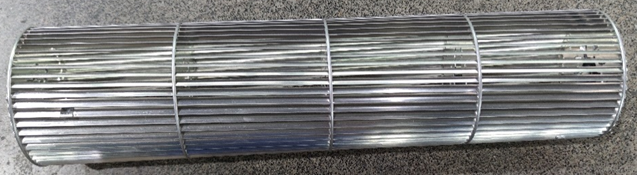

39 | Cross-flow fan blade/ Indoor blower wheel | 1 | 802920890005 | ||
40 | Septum plate assy | 1 | 801220890506 | ||

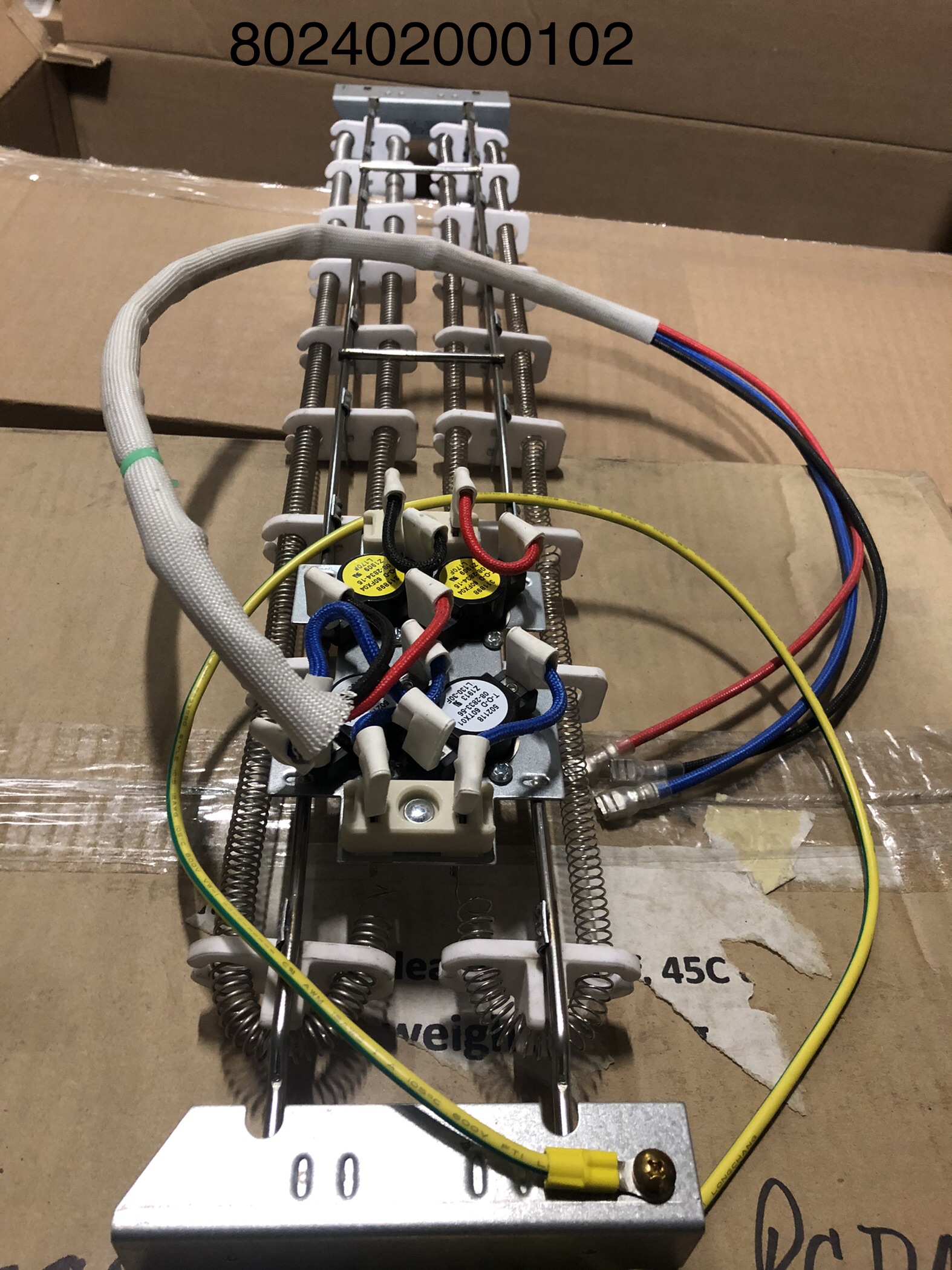

41 | Electric heater | 1 | 802402000102 | 230V/3KW | |
42 | Evaporator assy | 1 | 801520390057 | ||
43 | Seal board #1 assy | 1 | 801220890175 | ||

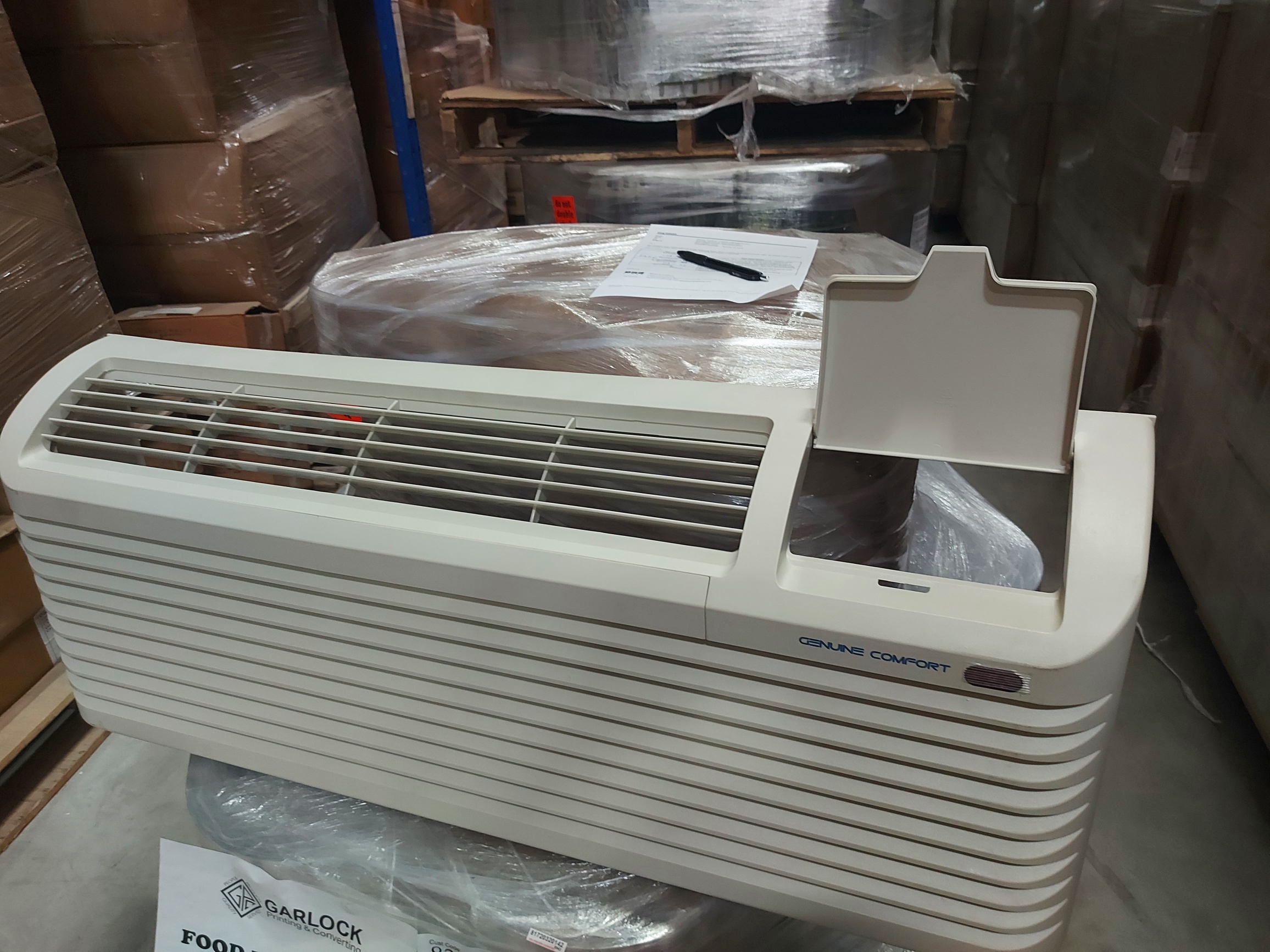

44 | Front panel with slide in filter | 1 | 8011220A0012 | ||
44.1 | Front panel | 1 | 801120890021 | No 3-D drawing | |
44.2 | Panel fixing buckle | 2 | 801220890192 | No 3-D drawing | |

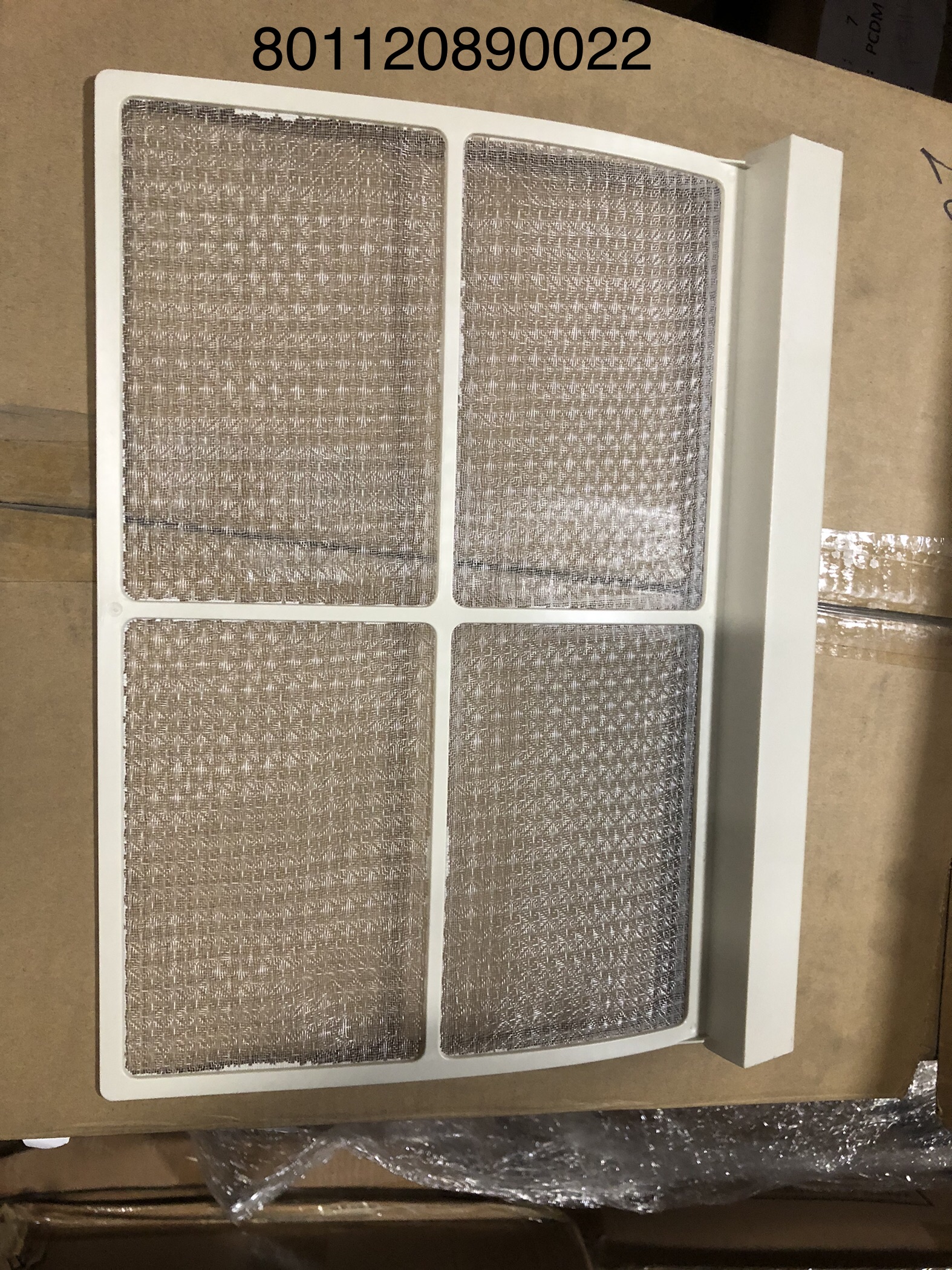

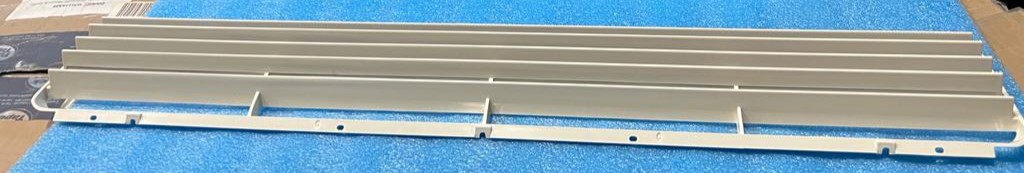

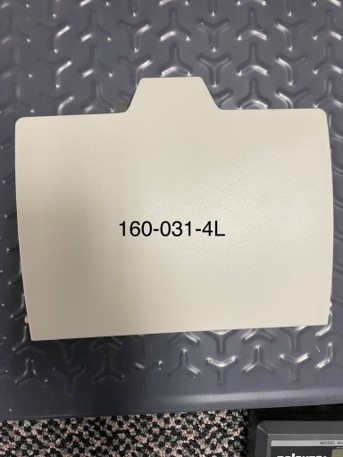

44.3 | Filter | 2 | 801120890022 | No 3-D drawing | |
44.4 | Filter rail | 1 | 801120890023 | No 3-D drawing | |
44.5 | Outlet air grille | 1 | 801120890024 | No 3-D drawing | |
44.6 | Cover of panel | 1 | 801120890025 | No 3-D drawing | |
45 | Operation board assy | 1 | 803320590193 | ||

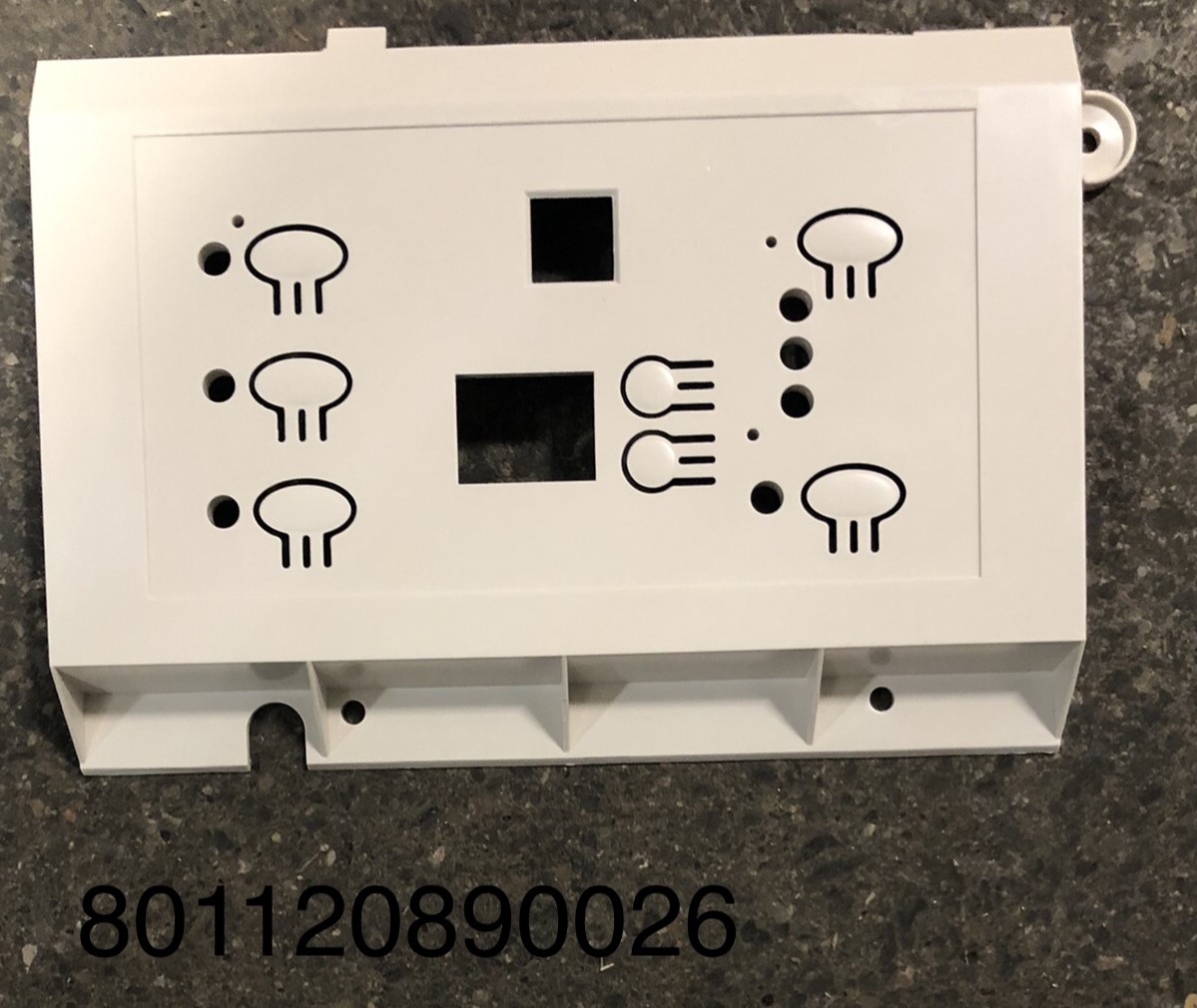

45.1 | Plastic display without board & sticker | 1 | 801120890026 | No 3-D drawing | |
45.2 | Mask control panel | 1 | 802020590467 | No 3-D drawing | |

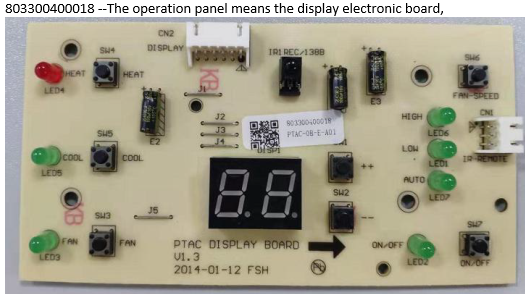

45.3 | Display Board | 1 | 803300400018 | No 3-D drawing | |
46 | Electric control box flip | 1 | 801220590684 | ||
47 | Mainboard | 1 | 803300301100 | ||
48 | Transformer | 1 | 802300200068 | ||
49 | Capacitor clip | 1 | 801200100002 | ||
50 | Compressor capacitor | 1 | 802401000059 | 20μF/450V/50/6 0Hz/φ50 |
|
51 | Fan motor capacitor (Indoor) / (Outdoor) |
1 | 802419900166/802 401100066 |
||
52 | Outlet protection net | 1 | 802920590006 | No 3-D drawing | |

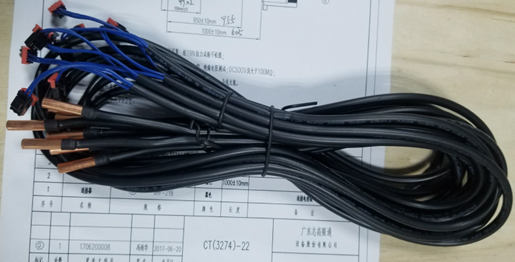

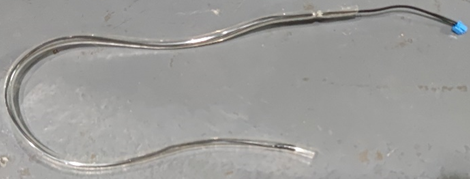

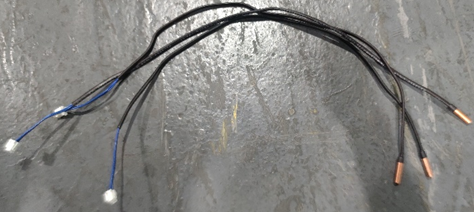

53 | Condenser temp. sensor | 1 | 802300400077 | No 3-D drawing (T3) | |
54 | Indoor evaporator temperature sensor | 1 | 802300400088 | No 3-D drawing (T2) | |
55 | Air return temp. sensor | 1 | 802300400129 | No 3-D drawing (T1) | |
56 | LCDI power cord | 1 | PC20S-P | No 3-D drawing | |
57 | Compressor connecting wire | 1 | 802420390053 | No 3-D drawing | |
58 | Refrigerant | 0.55KG | 800500100004 | No 3-D drawing |
Miscellaneous Parts
Part Number | Description | |

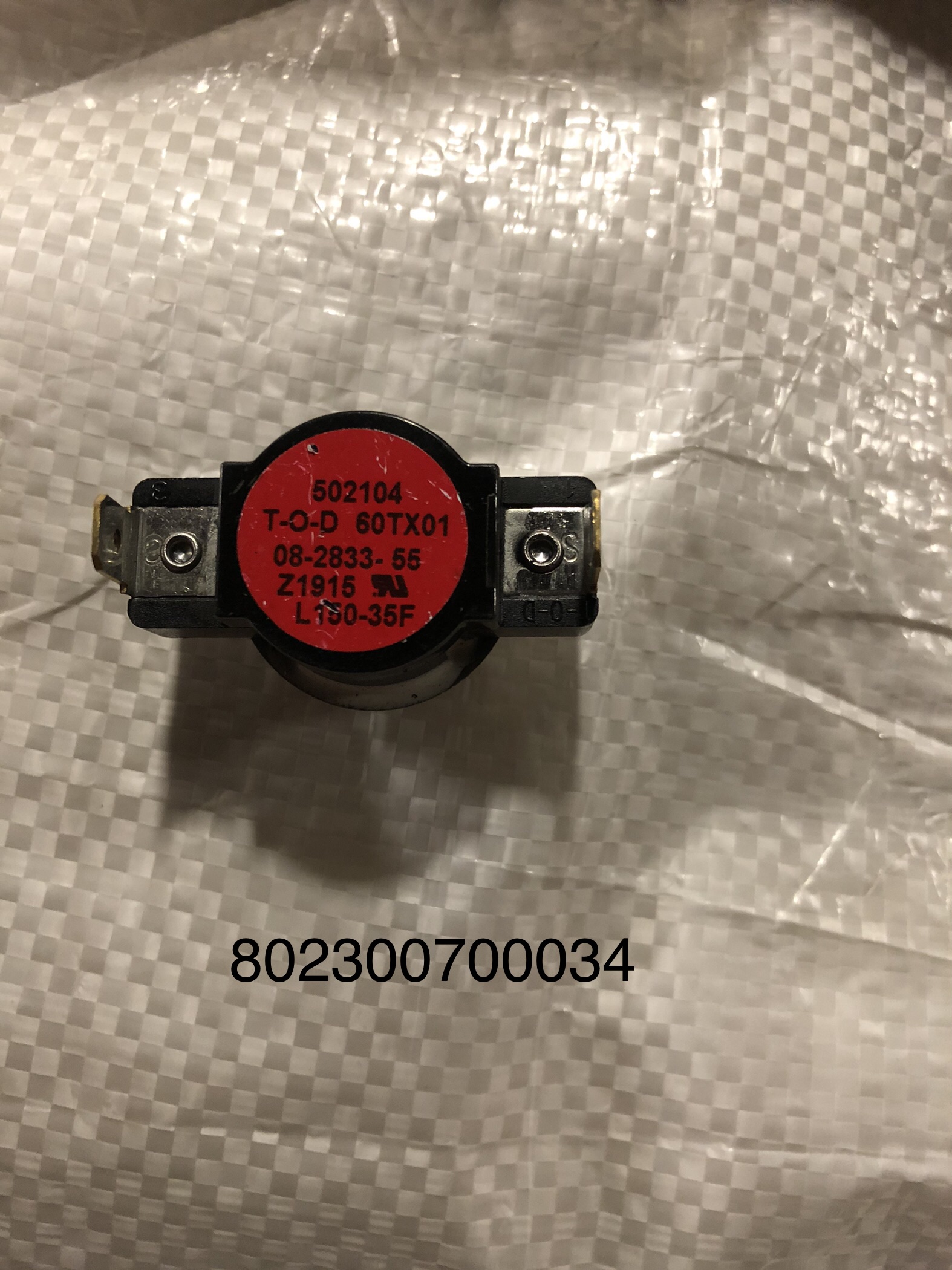

802300700034 | Temperature Limit on 3.4KW Electric Heater L150-35F | |

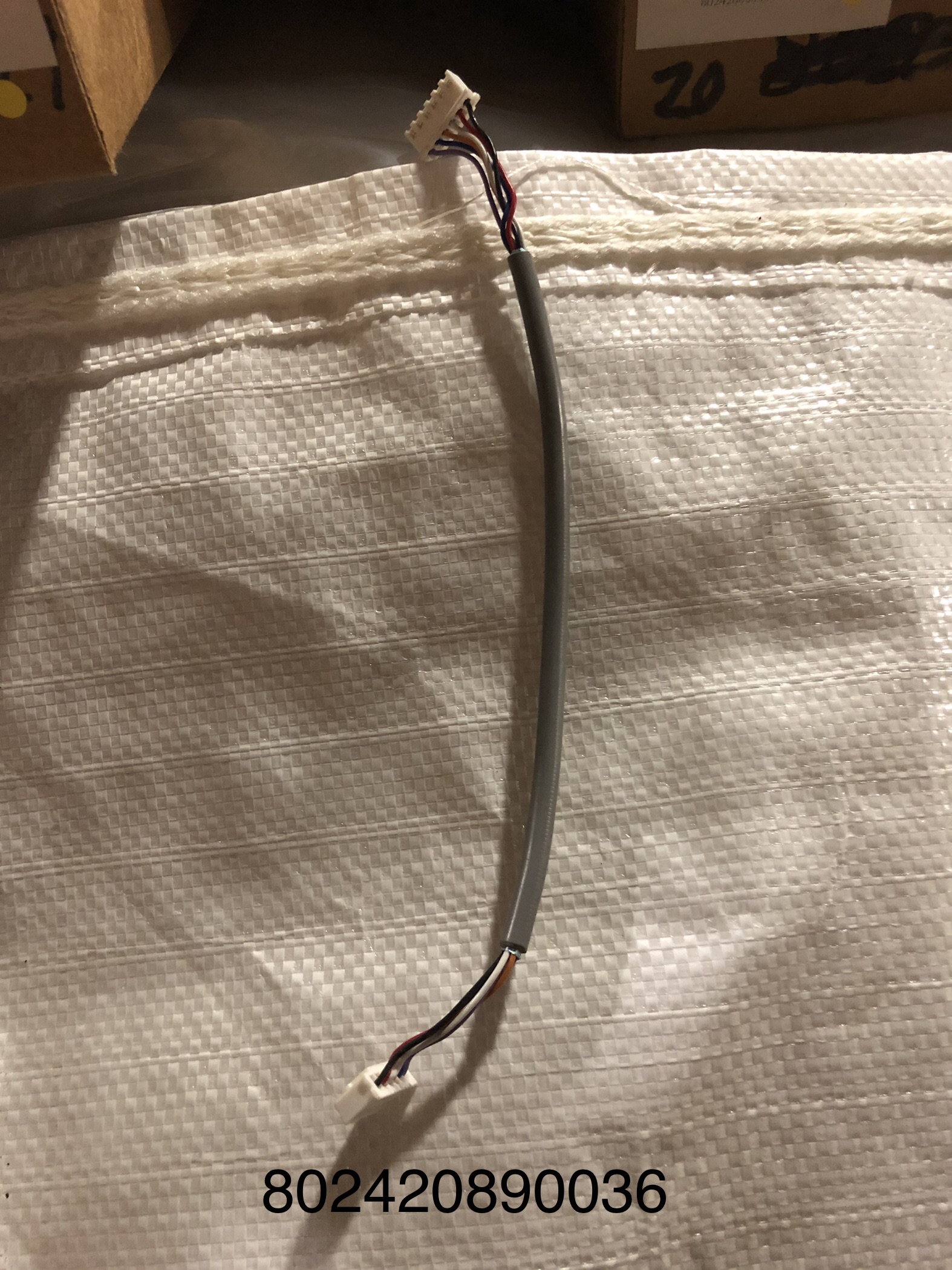

802420890036 | PCB Harness to Connect to Display Board |
