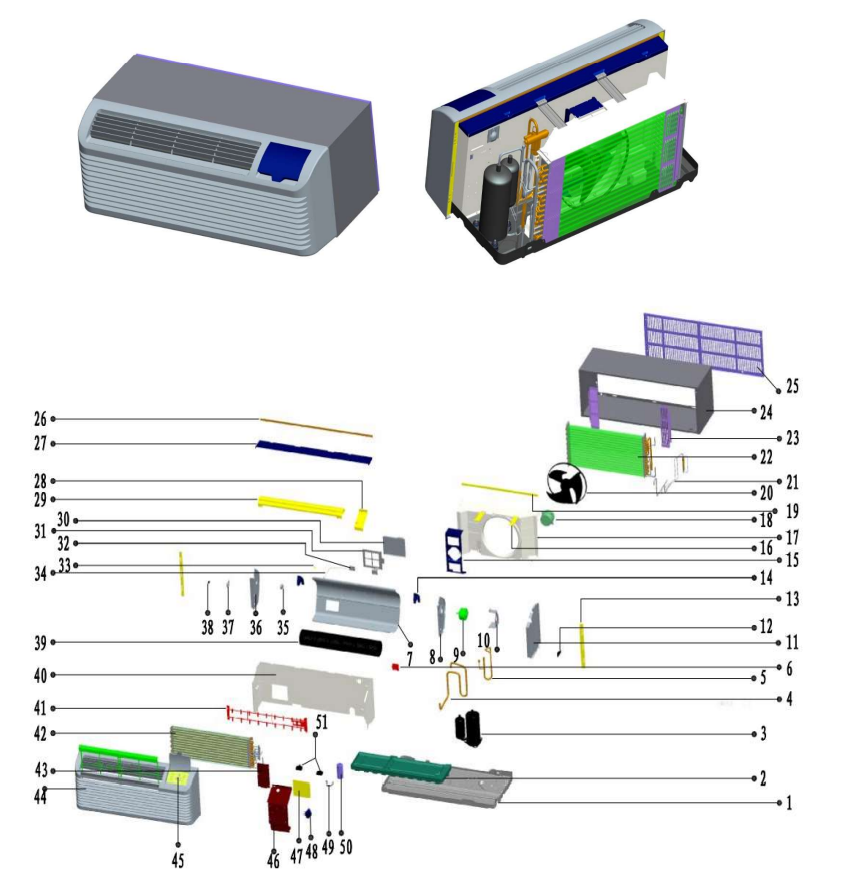

| No. | Part Name | Quantity | Part Number | Comments | |
| 1 | Chassis Assembly | 1 | 801220390279 | ||
| 2 | Foam drain tray | 1 | 802220890006 | ||
| 3 | Compressor | 1 | 801401400186 |  |
|
| 4 | Air return pipe assy | 1 | 801620390307 | ||
| 5 | Discharge pipe assy | 1 | 801620590487 | ||
| 6 | Line press plate | 1 | 801120890051 | ||
| 7 | The main duct | 1 | 801220590678 | ||
| 8 | Right side board assy of air duct |
1 | 801220590681 | ||

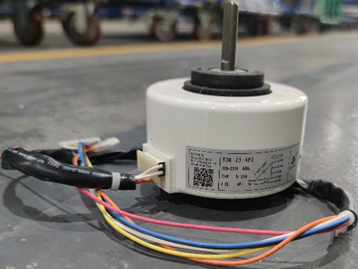

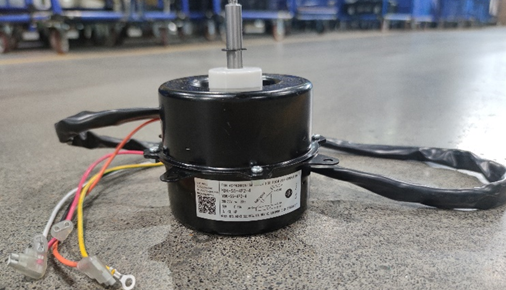

| 9 | Indoor fan motor | 1 | 802400300024 |  |
|
| 10 | Indoor fan motor bracket | 1 | 801220890158 | ||
| 11 | Cable harness assy for left side panel of E-box |
1 | 801220890395 | ||
| 12 | Crimp buckle | 1 | 801120890050 | For 20A | |
| 13 | Left fixing buckle part / Right fixing buckle part |
1 | 801220890167/801 220890170 |
||
| 14 | Left/Right duct deflector | 1 | 801120890013/801 120890014 |
||
| 15 | Outdoor fan motor bracket | 1 | 801220890144 | ||
| 16 | Connecting plate for outdoor air guide ring |
2 | 801220890166 | ||
| 17 | Air guide ring | 1 | 801120890019 | ||
| 18 | Outdoor fan motor | 1 | 802400400771 |  |
|
| 19 | Fixing plate of air guide ring | 1 | 801220890190 | ||

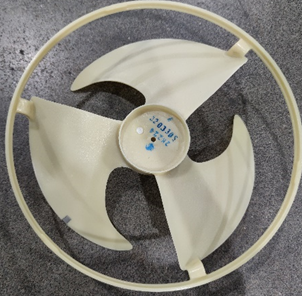

| 20 | Axial-flow fan blade | 1 | 801120890009 |  |
|
| 21 | Capillary assy | 1 | 801620390310 | ||
| 22 | Condenser assy | 1 | 801520590172 | ||
| 23 | Air grid | 1 | 801220890146 | ||
| 24 | Wall sleeve | 1 | 801220890441 | ||
| 25 | Outdoor grille assy | 1 | 801220690038 | ||
| 25.1 | Installation buckle of grille | 5 | 801120690007 | No 3-D drawing | |
| 25.2 | Outdoor grille | 1 | 801220690019 | No 3-D drawing | |
| 26 | Panel board support | 1 | 801220890165 | ||
| 27 | Top cover | 1 | 801220890179 | ||
| 28 | Seal board #2 assy | 1 | 801220590692 | ||
| 29 | Air outlet assy | 1 | 801220590690 | ||
| 30 | Fresh air inlet assy | 1 | 801220890225 | ||
| 31 | Fresh air inlet filter | 1 | 801120890010 | ||
| 32 | Fresh air inlet support | 2 | 801220890151 | ||
| 33 | Fresh air inlet clamp | 1 | 801120890017 | ||
| 34 | Fresh air inlet spring / tube | 1 | 802920890004/801 120890028 |
||

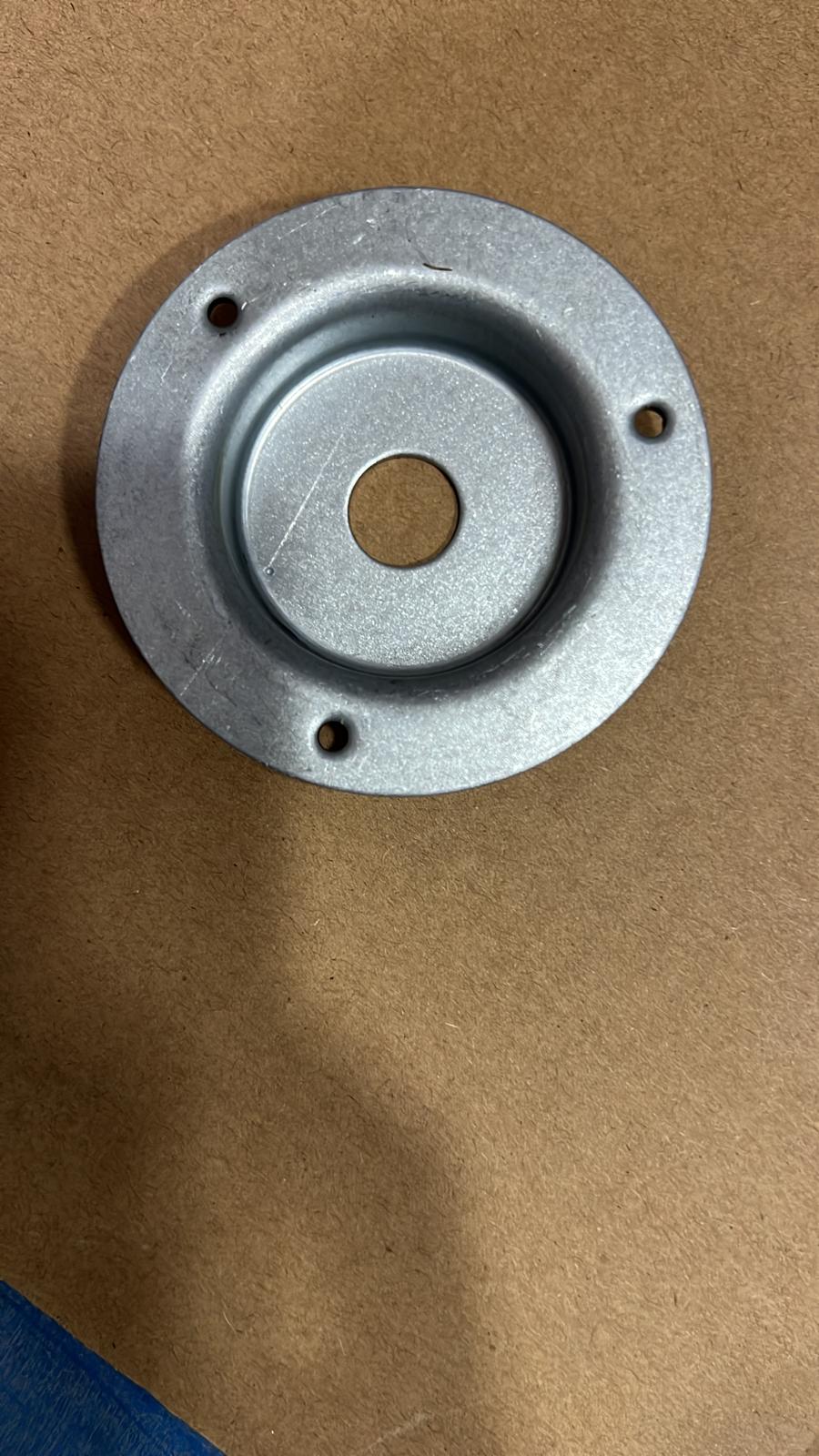

| 35 | Fixing board of bearing holder |
1 | 802720890002/801 220890156 |
 |
|
| 36 | Left side board assy of air duct |
1 | 801220590679 | ||
| 37 | Fresh air inlet rail | 1 | 801120890012 |  |
|
| 38 | Fresh air inlet lever | 1 | 801120890011 | ||

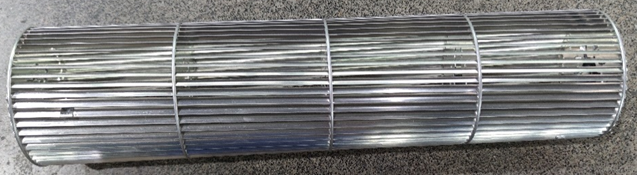

| 39 | Cross-flow fan blade/ Indoor blower wheel | 1 | 802920890005 |  |
|
| 40 | Septum plate assy | 1 | 801220890506 | ||
| 41 | Electric heater | 1 | 802402000104 | 230V/3KW | |
| 42 | Evaporator assy | 1 | 801520390057 | ||
| 43 | Seal board #1 assy | 1 | 801220890175 | ||

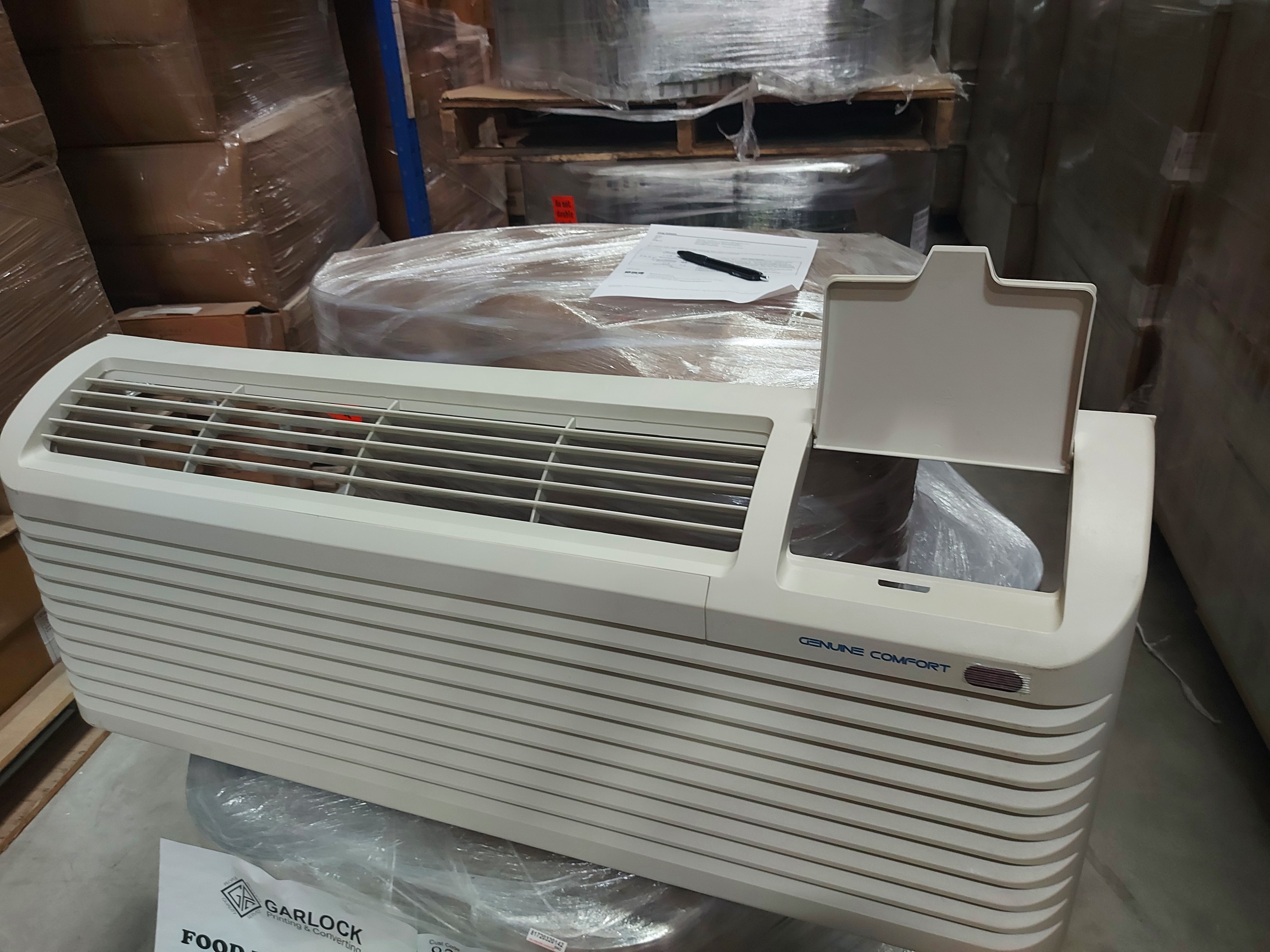

| 44 | Front Panel with slide in filter | 1 | 801120890020 | ||
| 44.1 | Front panel | 1 | 801120890021 | No 3-D drawing | |
| 44.2 | Panel fixing buckle | 2 | 801220890192 | No 3-D drawing | |

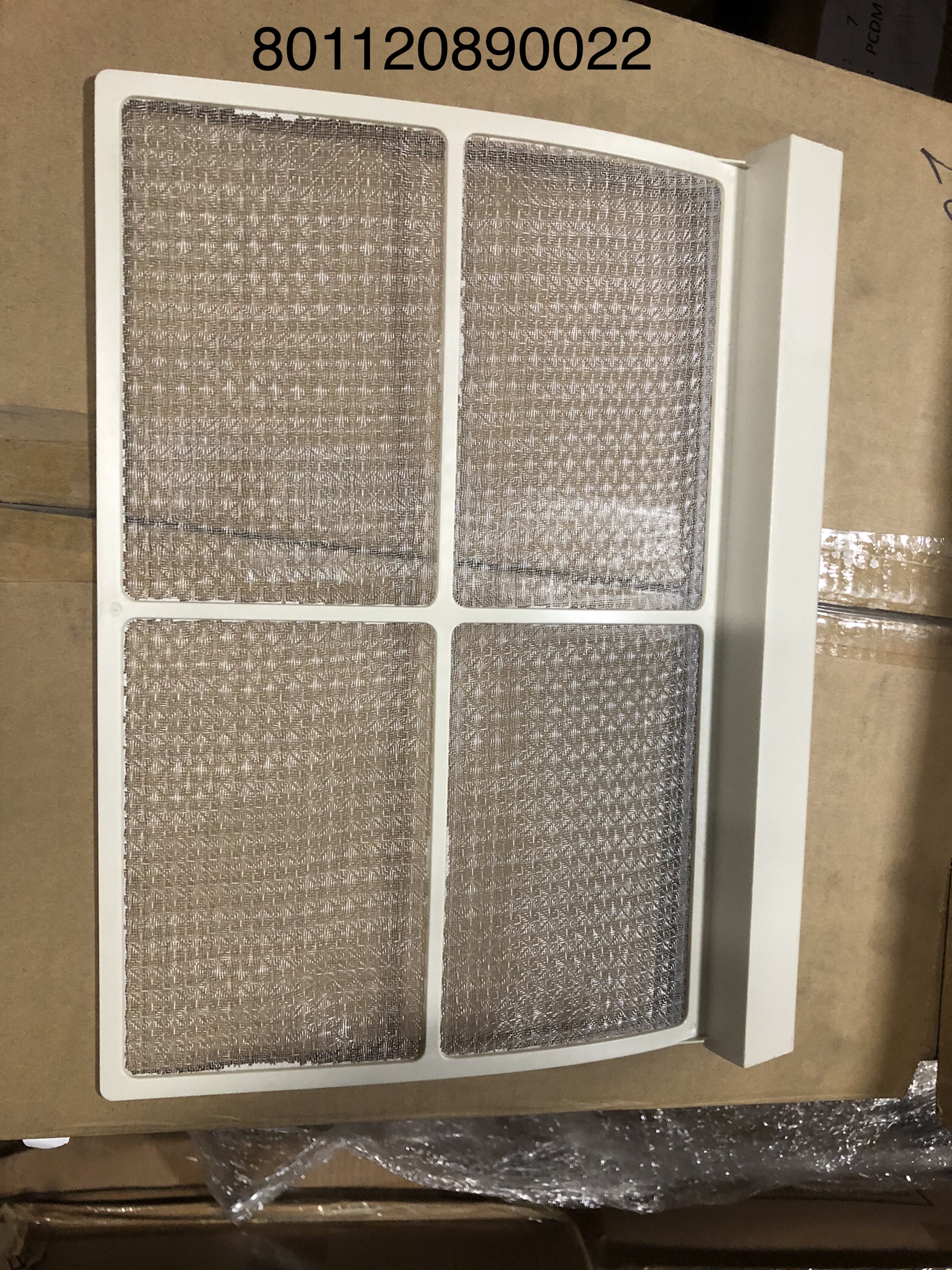

| 44.3 | Filter | 2 | 801120890022 | No 3-D drawing |  |
| 44.4 | Filter rail | 1 | 801120890023 | No 3-D drawing | |

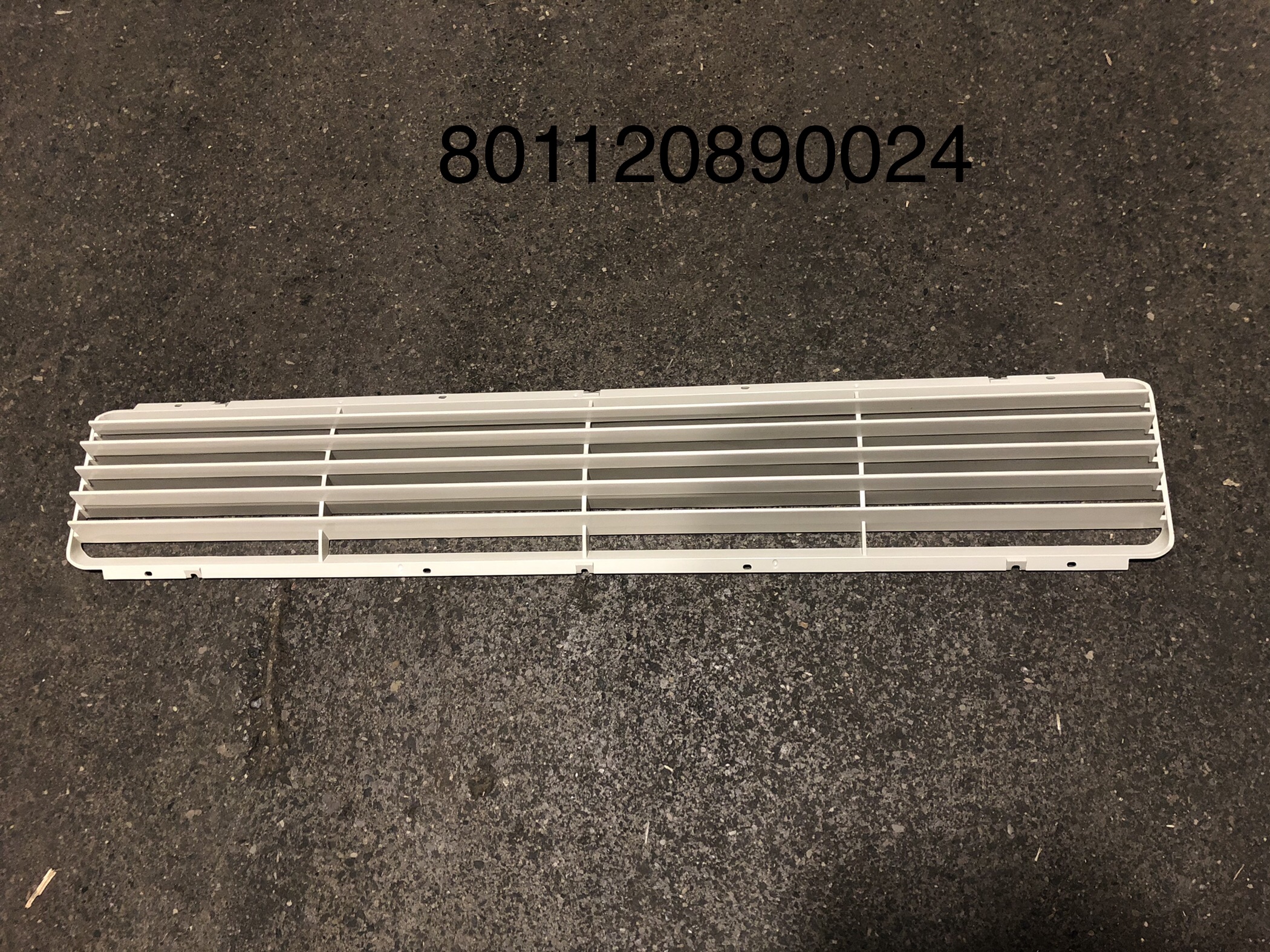

| 44.5 | Outlet air grille | 1 | 801120890024 | No 3-D drawing |  |
| 44.6 | Cover of panel | 1 | 801120890025 | No 3-D drawing |  |
| 45 | Operation board assy | 1 | 803320590193 | ||

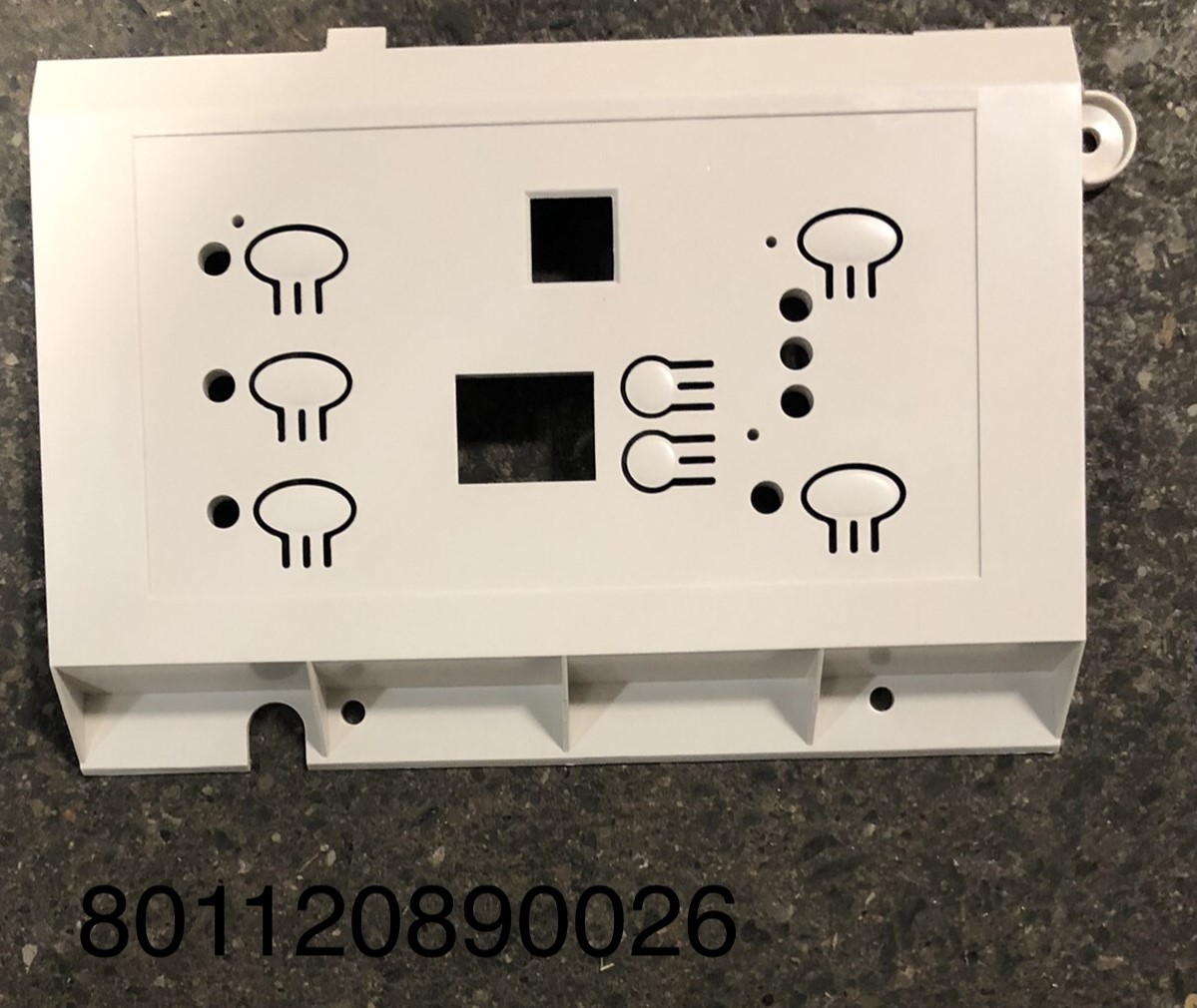

| 45.1 | Plastic display without board & sticker | 1 | 801120890026 | No 3-D drawing | |
| 45.2 | Mask control panel | 1 | 802020590467 | No 3-D drawing | |

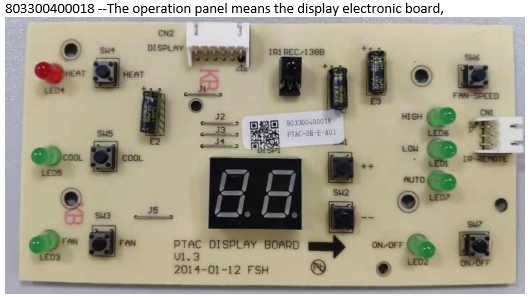

| 45.3 | Display Board | 1 | 803300400018 | No 3-D drawing | |
| 46 | Electric control box flip | 1 | 801220590684 | ||
| 47 | Mainboard | 1 | 803300301100 |  |
|
| 48 | Transformer | 1 | 802300200068 |  |
|
| 49 | Capacitor clip | 1 | 801200100002 | ||
| 50 | Compressor capacitor | 1 | 802401000059 | 20μF/450V |  |
| 51 | Capacitor indoor evaporator motor / Capacitor outdoor evaporator motor |
1 | 802419900166/802 401100066 |
||
| 52 | Outlet protection net | 1 | 802920590006 | No 3-D drawing | |

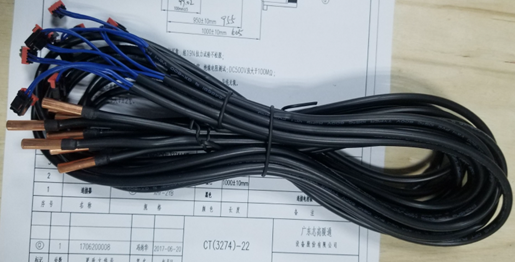

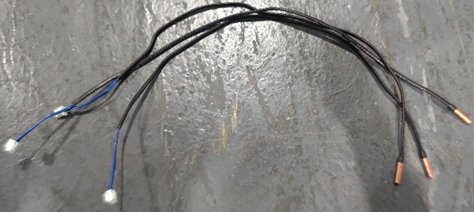

| 53 | Condenser temp. sensor | 1 | 802300400077 | No 3-D drawing (T3) |  |

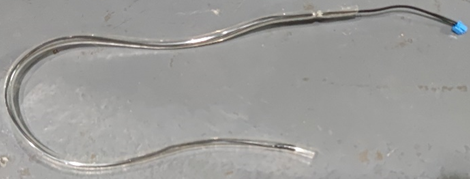

| 54 | Indoor evaporator temperature sensor | 1 | 802300400088 | No 3-D drawing (T2) |  |
| 55 | Air return temp. sensor | 1 | 802300400129 | No 3-D drawing (T1) |  |
| 56 | LCDI power cord | 1 | 802420690015 | No 3-D drawing | |
| 57 | Compressor connecting wire | 1 | 802420390053 | No 3-D drawing | |
| 58 | Refridgerant | 0.55KG | 800500100004 | No 3-D drawing |
