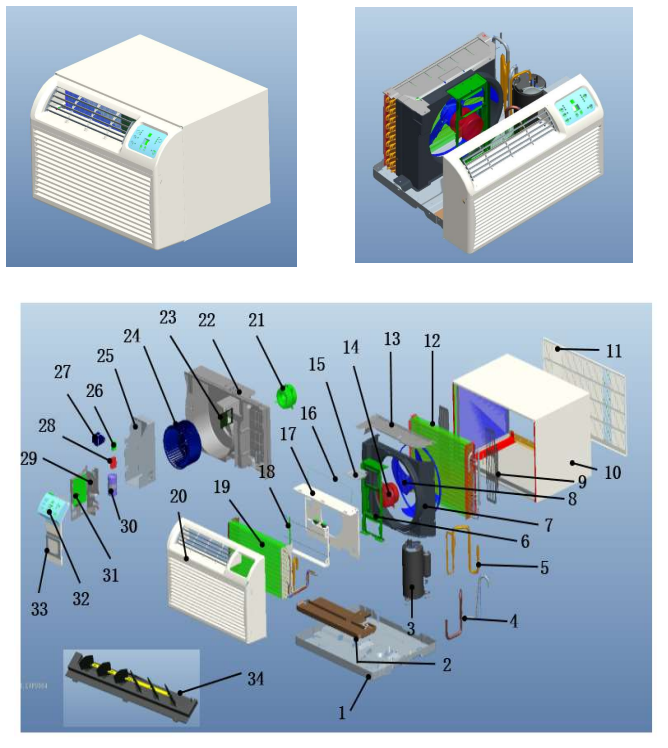

| No. | Part Name | Quantity | Part Number | Comments | |
| 1 | Pallet welding assembly | 1 | 801220590349 | ||
| 2 | Foam water tray | 1 | 802220590005 | ||

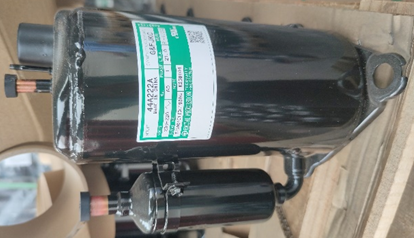

| 3 | Compressor | 1 | 801401600023 |  |
|
| 4 | Return pipe welding assembly | 1 | 801620590466 | ||
| 5 | Exhaust pipe welding assembly |
1 | 801620590463 | ||
| 6 | Outdoor motor bracket | 1 | 801220590339 | ||
| 7 | Outdoor wind guide | 1 | 801120590009 | ||
| 8 | Outdoor fan | 1 | 801100300025 |  |
|
| 9 | Air guide plate | 1 | 801220890146 | ||
| 10 | Wall cover components | 1 | 801220890482 | ||
| 11 | Aluminum back mesh assy | 1 | 802920590004 | ||
| 12 | Condenser pre-welded components |
1 | 801520590164 | ||
| 13 | Wind guide cover | 1 | 801120590010 | ||

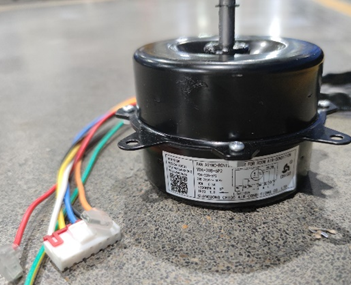

| 14 | Outdoor motor | 1 | 802400400645 |  |
|
| 15 | Outdoor air duct connection plate |
1 | 801220590340 | ||
| 16 | Outlet protection network | 2 | 801220590343 | ||
| 17 | Electric heating installation plate |
1 | 801220590344 | ||
| 19 | Evaporator pre-welded components |
1 | 801520590100 | ||

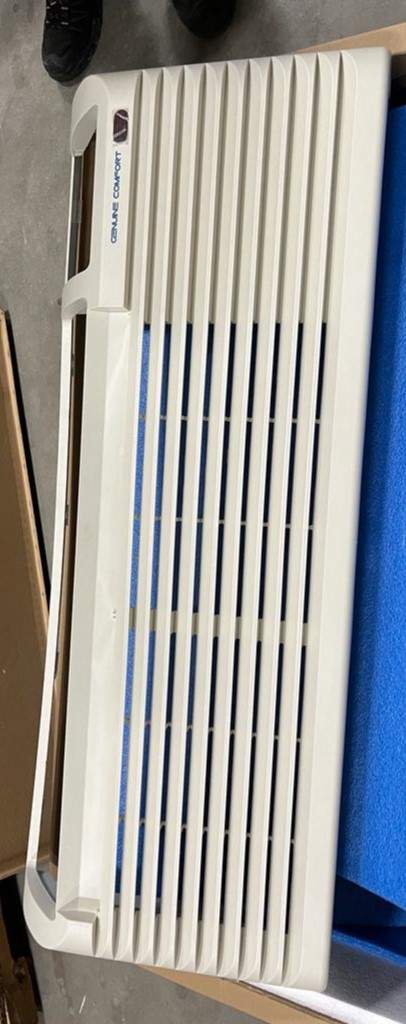

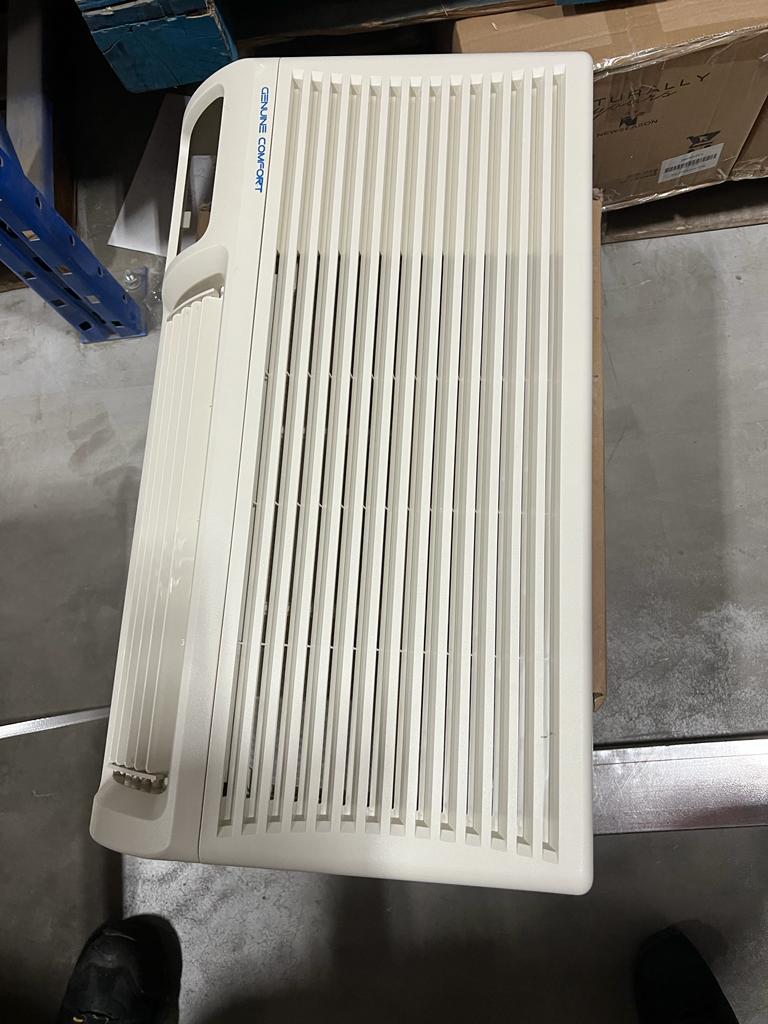

| 20 | Front Panel components | 1 | 801120590029 | ||

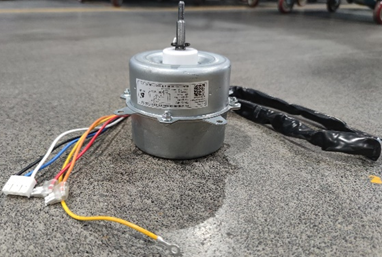

| 21 | Indoor motors | 1 | 802400400646 |  |
|
| 22 | Plastic partition board | 1 | 801120590011 | ||
| 23 | New throttle | 1 | 801120590014 | ||
| 24 | Indoor wind wheel | 1 | 801120590008 |  |
|
| 25 | Electronic control box components |
1 | 801220590353 | ||
| 26 | Indoor fan motor capacitor | 1 | 802419900166 | 6μF/450VAC |  |
| 27 | Transformer | 5 | 802300200081 |  |
|
| 28 | Outdoor motor capacitor | 1 | 802401100098 | 8μF/450VAC |  |
| 29 | Electrical installation board | 1 | 801120590028 | ||
| 30 | Capacitor compressor | 1 | 802401000040 | 60μF/250V/50/60Hz/φ50 |  |
| 31 | Electronic control board | 1 | 803300301004 |  |
|
| 32 | Operation panel assembly | 1 | 803320590064 | ||
| 32.1 | Operation panel fixing box | 1 | 801120590024 | ||

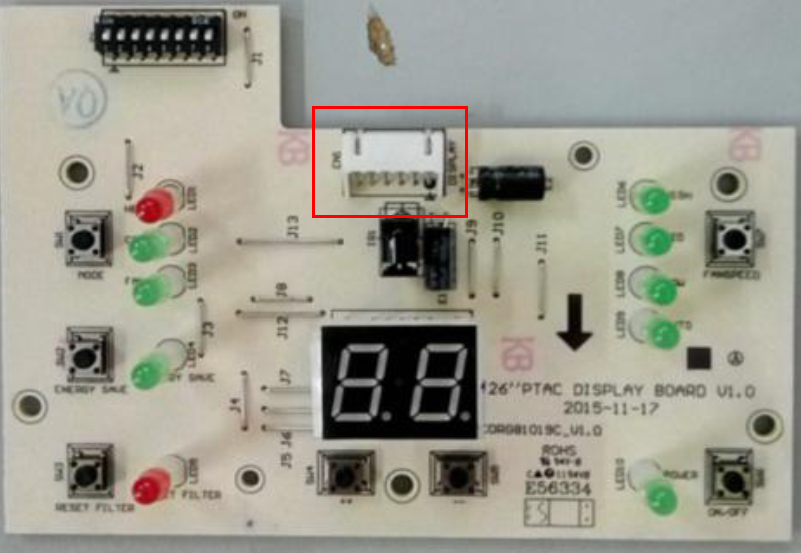

| 32.2 | Operating the board | 1 | 803300400024 | ||

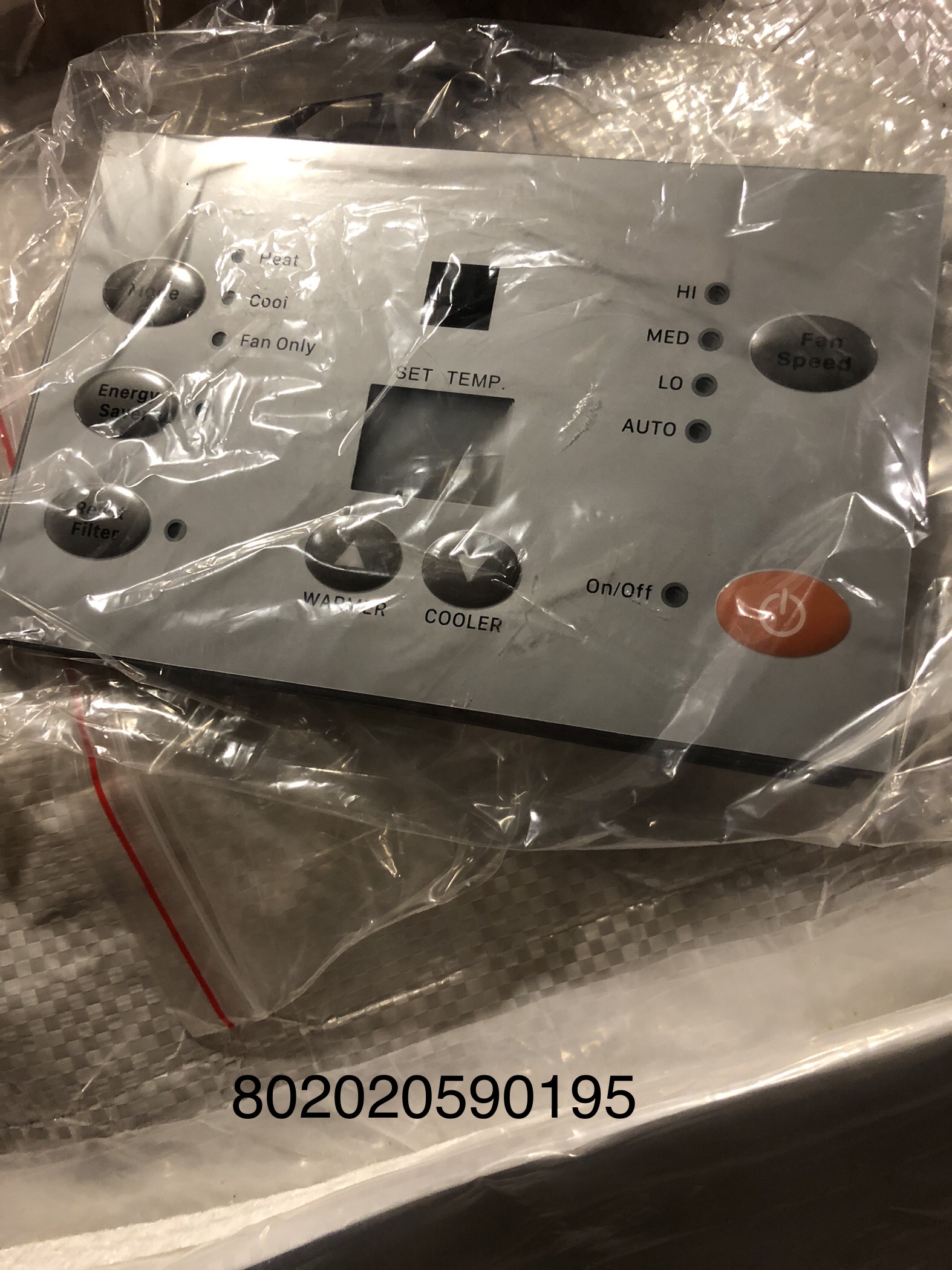

| 32.3 | Control mask/ Touchpad membrane | 2 | 802020590195 | ||
| 33 | Electric control box clamshell assembly |
1 | 801220590370 | ||
| 34 | Main parts of the air outlet | 1 | 801120590030 |  |
|
| 34.1 | The base of the vent | 801120590025 | |||
| 34.2 | Out of the vent | 801120590026 | |||
| 34.3 | Vent CLIP | 801120590027 | |||
| 35 | Capillary welding assembly | 1 | 801620590732 | No 3d drawing | |

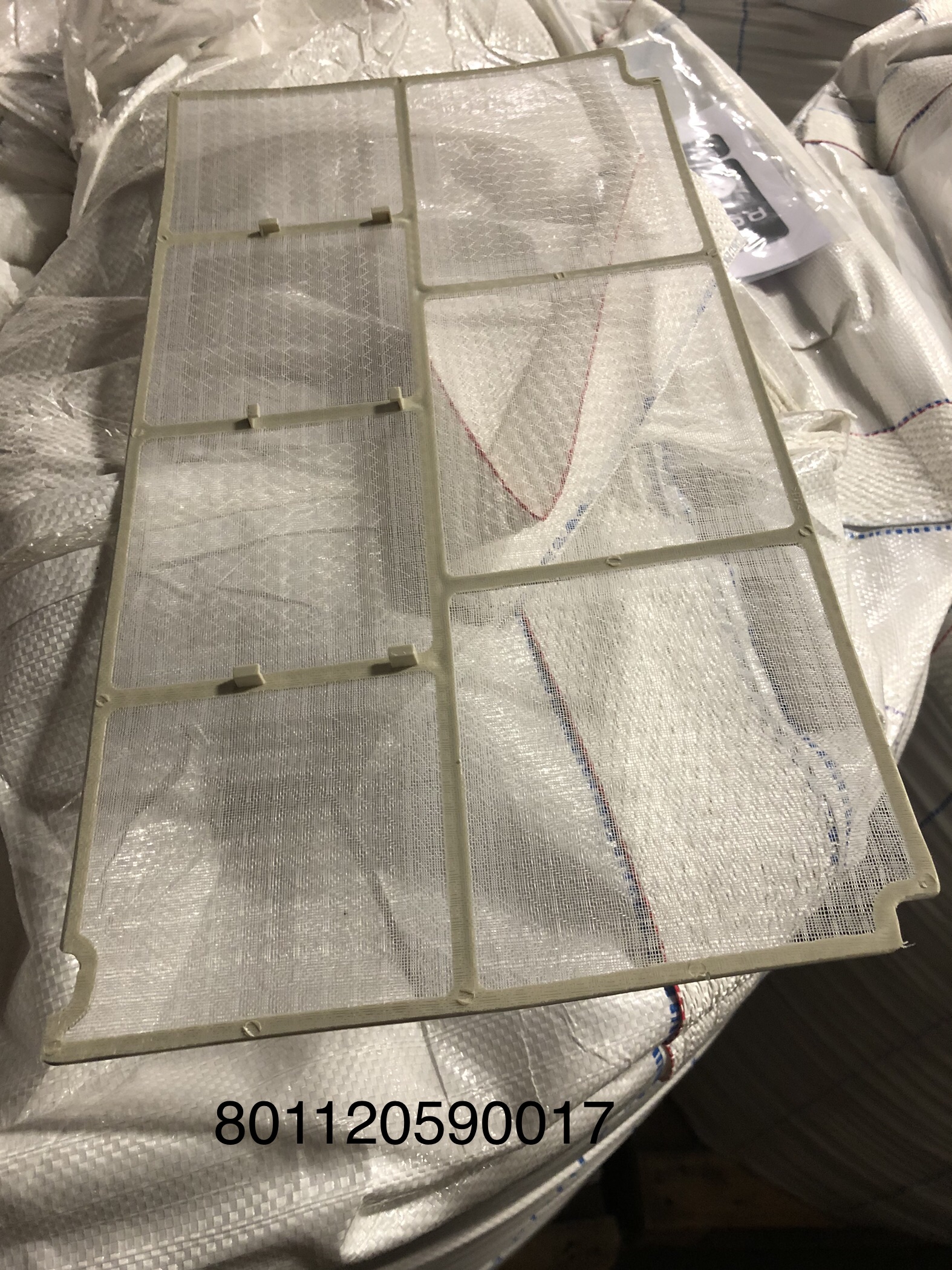

| 35.1 | Filter | 1 | 801120590017 | No 3d drawing |  |
| 36 | Wiring board | 1 | 802401800093 | No 3d drawing | |
| 37 | Capacitor clip | 1 | 801200100062 | No 3d drawing | |
| 38 | LCDI-power cord | 1 | 802420790007 | No 3d drawing | |
| 39 | Power line pressure line deduction |
1 | 801102000041 | No 3d drawing | |

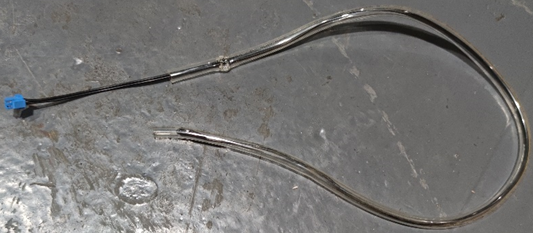

| 40 | Temperature Sensor | 1 | 802301500012 | No 3d drawing（T4 |  |

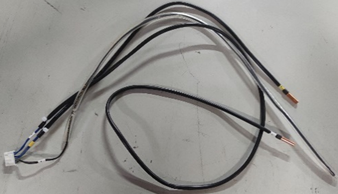

| 41 | 3 Temperature sensor group - harness | 1 | 802320890007 |
No 3d drawing（T1/T2/T3） |
|
| 42 | Compressor connection cable | 1 | 802401601311 | No 3d drawing | |
| 43 | Refrigerant | 20.8oz | 800500100004 | No 3d drawing |
