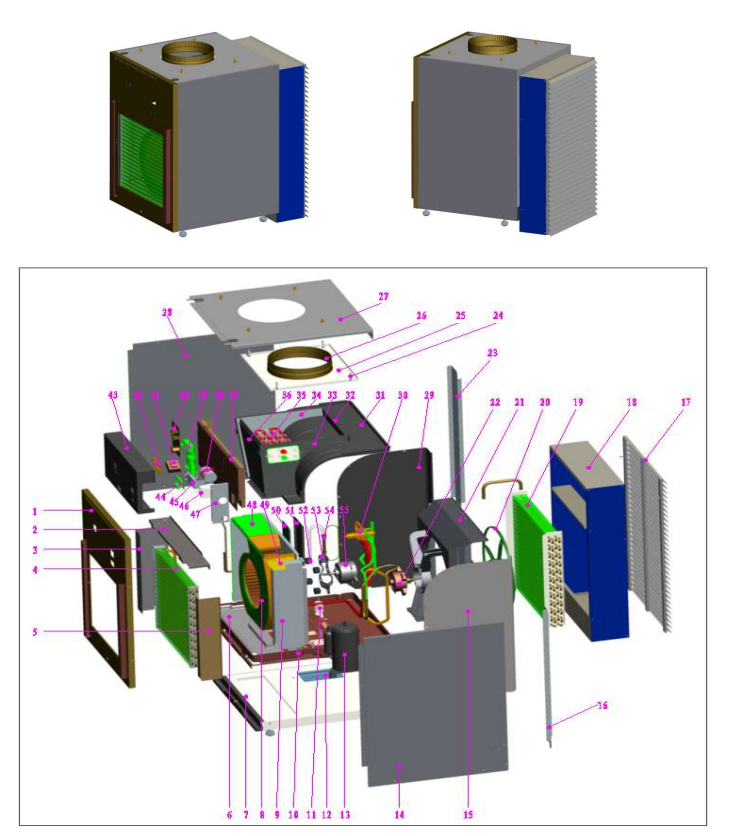

| No. | Part Name | Quantity | Part Number | Comments | |
| 1 | Outer frame front panel welding assembly |
1 | 801220590584 | ||
| 2 | Evaporator cover | 1 | 801220590627 | ||
| 3 | Evaporator left side plate | 1 | 801220590591 | ||
| 4 | Evaporator pre-welded components | 1 | 801521490038 | ||
| 5 | Evaporator right side plate | 1 | 801220590592 | ||
| 6 | Foam water tray | 1 | 802220890012 | ||
| 7 | Outer frame base welding assembly | 1 | 801220590633 | ||
| 8 | Indoor wind turbine volute assembly |
1 | 801200200046 | ||
| 9 | Middle partition cotton assembly | 1 | 801220590594 | ||
| 10 | Warm and cold tray welding assembly | 1 | 801221490098 | ||
| 11 | Drain valve | 1 | 801600900095 | ||
| 12 | Plastic drain pan | 1 | 801120590041 | ||
| 13 | Compressor | 1 | 801401200009 | ||
| 14 | Outer frame right side panel | 1 | 801220590642 | ||
| 15 | Outdoor right wall panel cotton component | 1 | 801222000003 | ||
| 16 | Outer frame right column | 1 | 801220590640 | ||
| 17 | Back mesh component | 1 | N/A | ||
| 18 | Wall sleeve assembly | 1 | N/A | ||
| 19 | Condenser pre-welded components | 1 | 801521490033 | ||
| 20 | Outdoor fan blade/ Axial- flow fan blade | 1 | 801100300037 |  |
|
| 21 | Outdoor air guide ring | 1 | 801120590040 | ||
| 22 | Single axis outdoor DC motor | 1 | 802400400743 |  |
|
| 23 | Outer frame left column | 1 | 801220590639 | ||
| 24 | Flange fixing bolt | 4 | 802500600192 | ||
| 25 | Flange fixing plate | 1 | P0000304435 | ||
| 26 | Flange | 1 | P0000304433 | ||
| 27 | Outer frame top cover assembly | 1 | 801220590637 | ||
| 28 | Frame left side panel | 1 | 801220590641 | ||
| 29 | Outdoor left wall panel sticker assembly |
1 | 801222000001 | ||
| 30 | Four-way valve welding components |
1 | 801621490096 | ||
| 31 | Air outlet body cotton component | 1 | 801220590607 | ||
| 32 | Air outlet rear side panel cotton assembly |
1 | 801220590617 | ||
| 33 | Air outlet right side panel cotton component |
1 | 801220590613 | ||
| 34 | Air outlet left side panel cotton component |
1 | 801220590608 | ||
| 35 | Electric heating | 1 | 802402000247 | ||
| 36 | Air outlet front side panel cotton assembly |
1 | 801220590615 | ||
| 37 | Electronically controlled mounting plate welding assembly |
1 | 801220590745 | ||

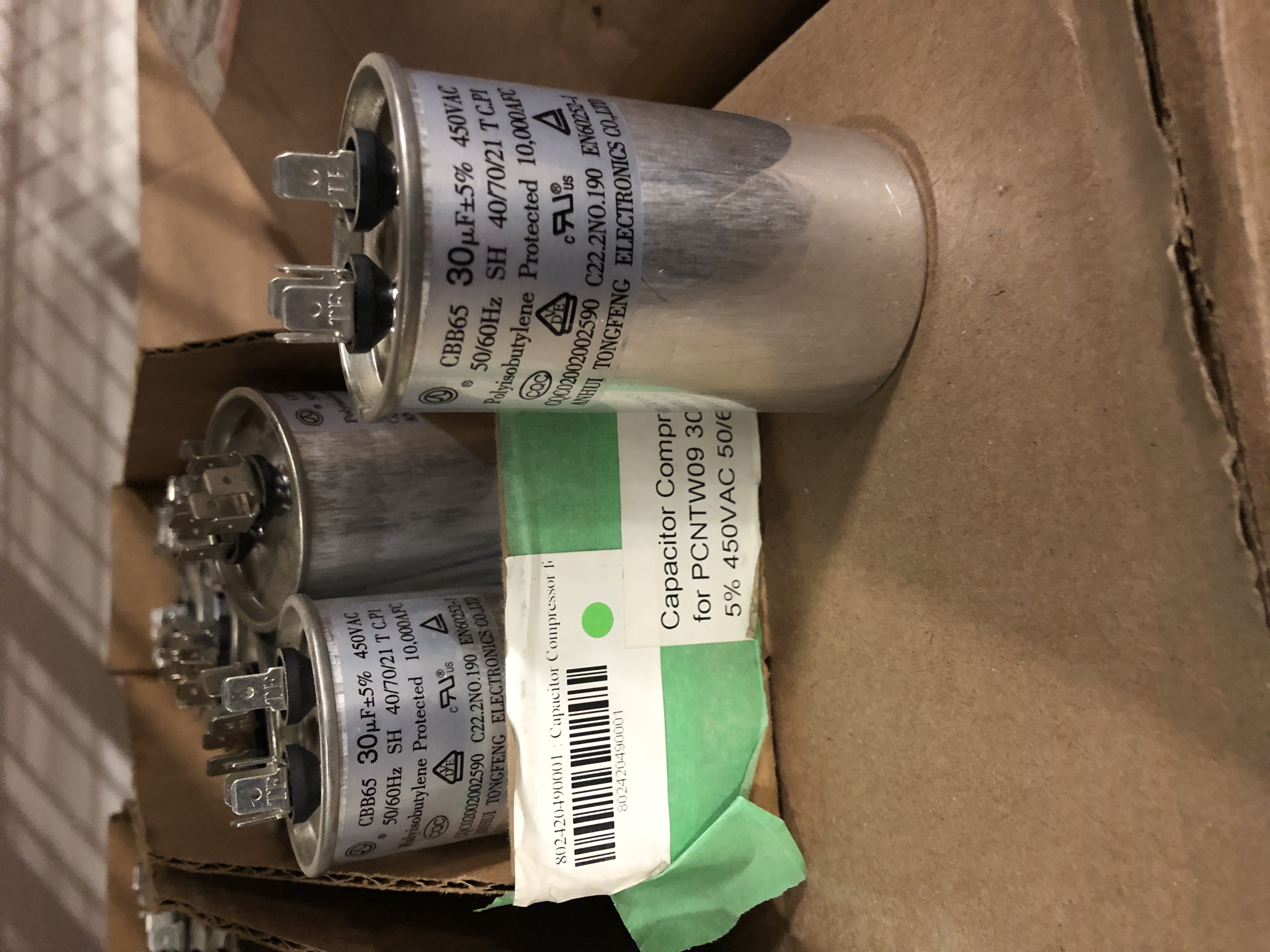

| 38 | Capacitor compressor | 1 | 802420490001 | ||
| 39 | Electric control board assembly | 1 | 802301700447 |  |
|
| 40 | DC motor drive board | 1 | 803300301071 | ||
| 41 | Transformer | 1 | 802300200086 |  |
|
| 42 | Operation panel | 1 | 803300400017 | ||
| 43 | Electric control box cover assembly | 1 | 801221090003 | ||
| 44 | Remote controller adapter board | 1 | 803300300919 | ||
| 45 | Wire controller support plate assembly |
1 | 801220590624 | ||
| 46 | Switch (black) | 1 | 802320890013 | ||
| 47 | Electric control box wiring plate | 1 | 802401800093 | ||
| 48 | Middle partition connecting plate A | 1 | 801220590601 | ||
| 49 | Middle partition connecting plate B | 1 | 801220890636 | ||
| 50 | Middle partition new damper | 1 | 801120590042 | ||
| 51 | New Air Door Cover Plate Cotton Packing Component |
1 | 801220590763 | ||
| 52 | Indoor motor damping pad | 4 | 802720590005 | ||
| 53 | Indoor motor bracket | 1 | 801220590576 | ||
| 54 | Capillary tube assembly | 1 | 801621490105 | ||
| 55 | Single-axis indoor DC motor | 1 | 802401700412 |  |
|
| 56 | Button mask | 1 | 802020590476 | No picture | |
| 57 | Temperature Sensor | 1 | 802301500012 | T1, no picture | |
| 58 | Temperature Sensor | 1 | 802300400079 | T2, no picture | |
| 59 | Temperature Sensor | 1 | 802300400172 | T3, no picture | |
| 60 | Capacitor clip | 1 | 801200100016 | No picture | |
| 61 | Compressor power cord | 1 | 802420890114 | No picture | |
| 62 | LCDI-Powe Cord（20A） | 1 | 802420690014 | No picture | |
| 63 | Wiring adapter group | 1 | 802401601176 | No picture | |
| 64 | R410A | 44.1oz | 800500100004 | No picture |
