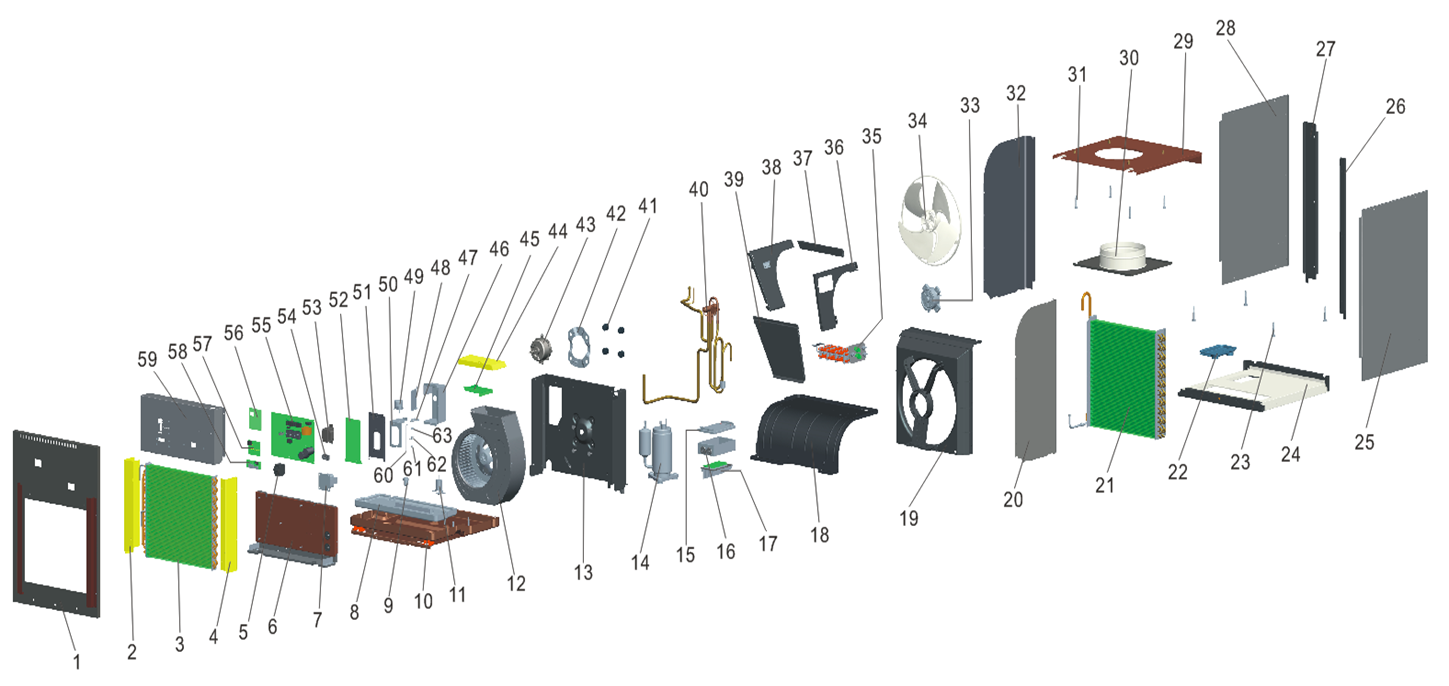

| No. | Part Name | Quantity | Part Number |
| 1 | Outer frame front panel welding assembly |
1 | 801220590584 |
| 2 | Air duct left side plate assembly | 1 | 801220590738 |
| 3 | Evaporator pre-welded components | 1 | 801520590153 |
| 4 | Air duct right side plate assembly | 1 | 801220590739 |
| 5 | Main power switch | 1 | 802320890013 |
| 6 | Electronic control box structure assembly 1 | 1 | 801220590749 |
| 7 | Reactor | 1 | 802300300066 |
| 8 | Foam water tray cotton assembly | 1 | 802220590006 |
| 9 | Rubber stopper | 1 | 802700200031 |
| 10 | Warm and cold tray welding assembly | 1 | 801220590577 |
| 11 | Drain valve | 1 | 801600900095 |
| 12 | Indoor wind turbine volute assembly | 1 | 801200200046 |
| 13 | Middle partition cotton assembly | 1 | 801220590594 |
| 14 | Inverter rotary compressor | 1 | 801401400190 |
| 15 | Electronic control box structure assembly 2 | 1 | 801220590750 |
| 16 | Electronic control box | 1 | 801220590751 |
| 17 | Inverter module | 1 | 801322000004 |
| 18 | Rear wall panel assembly (inverter) | 1 | 801220590761 |
| 19 | Outdoor air guide ring | 1 | 801120590040 |
| 20 | Outdoor right wall panel cotton component | 1 | 801222000003 |
| 21 | Condenser coil | 1 | 801521490033 |
| 22 | Plastic drain pan | 1 | 801120590041 |
| 23 | Base support bolts | 4 | 802500600198 |
| 24 | Outdoor frame base welding assembly | 1 | 801220590633 |
| 25 | Outer frame right side panel | 1 | 801220590642 |
| 26 | Outer frame right column | 1 | 801220590640 |
| 27 | Outer frame left column | 1 | 801220590639 |
| 28 | Outer frame left side panel | 1 | 801220590641 |
| 29 | Outer frame top cover assembly | 1 | 801220590637 |
| 30 | Air outlet flange component | 1 | 801220590765 |
| 31 | Cross grooved socket cylindrical head flange bolts | 4 | 802500600206 |
| 32 | Outdoor left wall panel sticker assembly | 1 | 801222000001 |
| 33 | Single axis outdoor motor | 1 | 802400400743 |
| 34 | Outdoor axial fan blade | 1 | 801100300037 |
| 35 | Electric heater assembly | 1 | 802402000248 |
| 36 | Air outlet front side panel cotton assembly |
1 | 801220590613 |
| 37 | Air outlet rear side panel cotton assembly | 1 | 801220590617 |
| 38 | Air outlet rear side panel cotton assembly | 1 | 801220590608 |
| 39 | Air outlet front side panel cotton assembly | 1 | 801220590615 |
| 40 | Four way valve component | 1 | 801620590803 |
| 41 | Indoor motor damping pad | 4 | 802720590005 |
| 42 | Indoor motor bracket | 1 | 801220590576 |
| 43 | Single-axis indoor motor | 1 | 802401700412 |
| 44 | Middle partition connecting plate A sticking cotton component | 1 | 801220590667 |
| 45 | Heat shield right connection plate assembly | 1 | 801220890636 |
| 46 | Motor gland (fresh air) | 1 | 801220590767 |
| 47 | Active lever of fresh air door | 1 | 801220590459 |
| 48 | Fresh air door assembly 2 | 1 | 801220590769 |
| 49 | Synchronous motor | 1 | 802400100004 |
| 50 | Indoor motor bracket | 1 | 801220590766 |
| 51 | Fresh air door assembly 2 | 1 | 801220590763 |
| 52 | Middle partition new damper | 1 | 801120590042 |
| 53 | Transformer | 1 | 802300200083 |
| 54 | Terminal block | 1 | 802401800093 |
| 55 | Mainboard assembly | 1 | 801322000011 |
| 56 | Button mask | 1 | 802020590476 |
| 57 | Display board | 1 | 803300400017 |
| 58 | Remote controller adapter board | 1 | 803300300919 |
| 59 | Electric control box structure assembly | 1 | 801221090003 |
| 60 | Fresh air door shaft | 1 | 801220590768 |
| 61 | Drive ring | 1 | 801120390012 |
| 62 | Fresh air door spring | 1 | 802920590008 |
| 63 | Fixing plate of fresh air motor | 1 | 801220590460 |
| 64 | Temperature Sensor | 1 | 802301500012 |
| 65 | Temperature Sensor | 1 | 802300400148 |
| 66 | Temperature Sensor | 1 | 802300400135 |
| 67 | Temperature Sensor | 1 | 802339290005 |
| 68 | Temperature Sensor | 802339290006 | |
| 69 | LCDI-Powe Cord（20A） | 802420690015 | |
| 70 | Compressor power cord | 802401601699 | |
| 71 | Wiring adapter group | 802401601176 |
