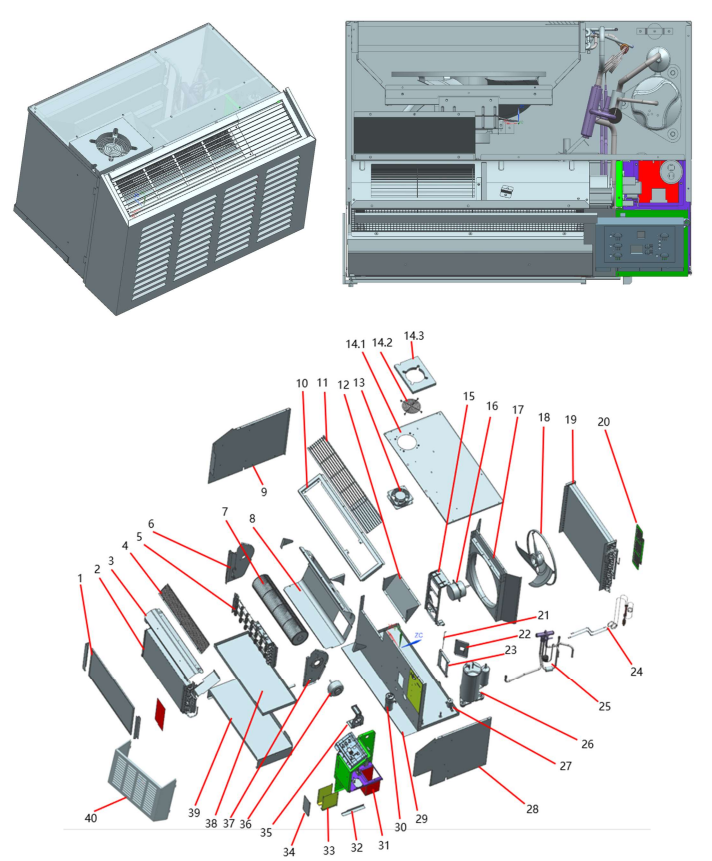

| No. | Part Name | Quantity | Part Number | Comments | |
| 1 | Filter | 1 | 802903200002 | ||
| 2 | Evaporator assy | 1 | 801522000013 | ||
| 3 | Air outlet assy | 1 | 801222000092 | ||
| 4 | Outlet air metal mesh cover | 1 | 801222000063 | ||
| 5 | Electric heater | 1 | 802422000005 | ||
| 6 | Air duct right side panel sponge assembly | 1 | 801222000128 | ||
| 7 | Cross-flow fan blade | 1 | 802907500001 | ||
| 8 | Air duct body sponge assembly 2 | 1 | 801222000120 | ||
| 9 | Air duct left side panel sponge assembly | 1 | 801222000081 | ||
| 10 | Air outlet bracket sponge assembly | 1 | 801222000074 | ||
| 11 | Indoor side outlet grille assembly (metal) | 1 | 802922000010 | ||
| 12 | Rear side panel sponge assembly of air duct | 1 | 801222000099 | ||
| 13 | Ventilation fan assembly |
1 | 802422000004 | ||
| 14 | Top cover plate sponge assembly 2 |
1 | 801222000067 | ||
| 14.1 | Top cover 2 | 1 | 801222000066 | ||
| 14.2 | Air outlet protective net |
1 | 802922000006 | ||
| 14.3 | Special shaped sponge 2 (top cover plate) |
1 | 802122000024 | ||
| 15 | Outdoor fan motor bracket | 1 | 801220890144 | ||
| 16 | Outdoor fan motor | 1 | 802400400771 |  |
|
| 17 | Air guide ring assembly | 1 | 801222000103 | ||
| 18 | Axial-flow fan blade | 1 | 801120890009 | ||
| 19 | Condenser assembly | 1 | 801522000010 | ||
| 20 | Air grille | 1 | 801220890146 | ||
| 21 | Fresh air door shaft | 1 | 802920590007 | ||
| 22 | Fresh air door cover sponge assembly | 1 | 801222000112 | ||
| 23 | Fresh air door fixing plate sticking cotton assembly | 1 | 801222000114 | ||
| 24 | Capillary assembly | 1 | 801622000070 | ||
| 24 | Air return pipe assembly of compressor | 1 | 801622000096 | ||
| 25 | 4-way valve welding assembly |
1 | 801622000075 | ||
| 26 | Compressor ASM135N1UEZ | 1 | 801401400136 |  |
|
| 27 | Drain valve | 1 | 801600900095 | ||
| 28 | Air duct right side panel sponge assembly | 1 | 801222000080 | ||
| 29 | Chassis base pan sponge assembly | 1 | 801222000118 | ||
| 30 | Compressor capacitor | 1 | 802420490009 | 40 μ F±5%/450VAC |  |
| 32 | Electric control box assembly | 1 | 803322000003 | ||
| 32.1 | Mainboard | 1 | 801322000002 | ||

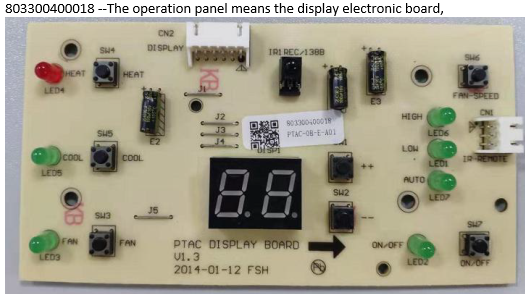

| 32.2 | Display Board | 1 | 803300400018 | ||
| 32.3 | Control mask | 1 | 8020208A1415 |  |
|
| 32.4 | Transformer | 1 | 802300200086 | ||
| 32.5 | Outdoor motor capacitor | 1 | 802401100066 | 3μ F/450VAC |
 |
| 32.6 | Capacitor indoor evaporator motor | 1 | 802419900166 | 1.5μ F/450VAC |
 |
| 32.7 | Fan power module | 1 | 803349300010 | ||
| 32 | Fresh air door pull rod (sheet metal) | 1 | 801222000088 | ||
| 33 | Power cord cover weldment | 1 | 801222000130 | ||
| 34 | Power cord cover3 | 1 | 801222000132 | ||
| 35 | Indoor fan motor bracket | 1 | 801220890158 | ||
| 36 | Indoor evaporator motor | 1 | 802400300023 |  |
|
| 37 | Air duct right side panel assembly | 1 | 801220890381 | ||
| 38 | Water tray sponge assembly (sheet metal) | 1 | 801222000109 | ||
| 39 | Water tray support plate | 1 | 801222000110 | ||
| 40 | Front panel (metal) | 1 | 801222000073 | ||
| 41 | R410A refrigerant | 880g/31.04oz | 800500100004 |
