HORIZONTAL MONOBLOC | GCMB SERIES

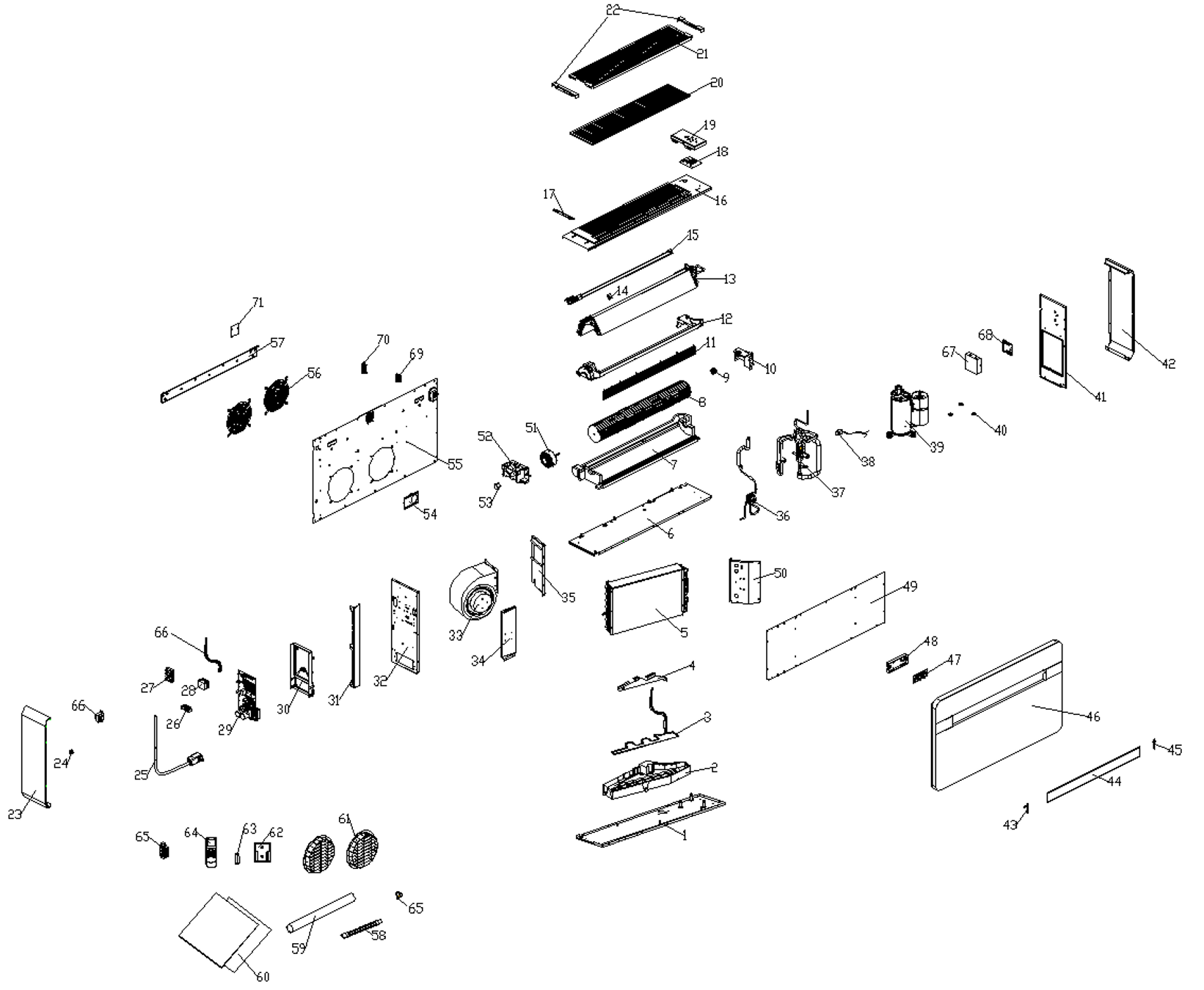

GCMB Horizontal Parts List - GCMB-H12KX1-1
| No. | Part name | Quantity | Part Number |
| 1 | Chassis Components | 1 | 23024189 |
| 2 | Water Tank | 1 | 210000556 |
| 3 | Electric Heating Wire | 1 | 31500718 |
| 4 | Water Baffle | 1 | 23028446 |
| 5 | Condenser Components | 1 | 24014719 |
| 6 | Middle Plate | 1 | 23024193 |
| 7 | Evaporator Duct EPP | 1 | 30300530 |
| 8 | Cross Flow Fan | 1 | 31900088 |
| 9 | Bearing | 1 | 31000402 |
| 10 | Bearing Installation Seat | 1 | 210000558 |
| 11 | Air Outlet Protective Net | 1 | 31100436 |
| 12 | Upper Cover of Air Duct | 1 | 210000559 |
| 13 | Evaporator Components | 1 | 24019724 |
| 14 | Temperature Sensor Seat | 1 | 31700032 |
| 15 | PTC Heater | 1 | 31500860 |
| 16 | Top Cover Plate Components | 1 | 23029681 |
| 17 | Air Intake Grille Support Plate | 1 | 25044534 |
| 18 | Wire Control Board | 1 | 31700385 |
| 19 | Wire Controller Box | 1 | 210000460 |
| 20 | Air Inlet Filter | 1 | 31100435 |
| 21 | Air Intake Grille | 1 | 25054761 |
| 22 | Handle | 2 | 210000457 |
| 23 | Left Sealing Plate | 1 | 25054358 |
| 26 | Power Connector | 1 | 31500165 |
| 27 | Cable Connector | 1 | 31500703 |
| 28 | Relay | 1 | 31500642 |
| 29 | Main PCB | 1 | 31700384 |
| 30 | PCB Mounting Seat | 1 | 210000519 |
| 31 | Panel Fixing Plate | 1 | 25054345 |
| 32 | Electric Control Installation Plate | 1 | 25054339 |
| 33 | Condenser Fan Motor | 1 | 3200014 |
| 34 | Condenser Fan Motor Fixing Plate | 1 | 25054322 |
| 35 | Condenser Fan Housing Fixing Plate | 1 | 23021053 |
| 36 | Capillary Component | 1 | 24016925 |
| 37 | Four-Way Valve Component | 1 | 24020670 |
| 38 | Four-Way Valve Coil | 1 | 30700035 |
| 39 | Compressor and Accessories | 1 | 31400168 |
| 40 | Nut | 3 | 30201205 |
| 41 | Right Cover Plate | 1 | 23030162 |
| 42 | Right Sealing Plate | 1 | 25077075 |
| 43 | Stepper Motor Shaft Sleeve | 1 | 210000561 |
| 44 | Guide Vane | 1 | 25054328 |
| 45 | Fan Blade Shaft | 1 | 210000560 |
| 46 | Panel | 1 | 210000562 |
| 47 | Display | 1 | 31700311 |
| 48 | Display Mounting Seat | 1 | 210000563 |
| 49 | Front Cover Plate | 1 | 25063938 |
| 50 | Condenser Fixing Plate | 1 | 25054318 |
| 51 | Evaporator Fan Motor | 1 | 32000141 |
| 52 | Evaporator Fan Motor Mounting Seat | 1 | 210000557 |
| 53 | Stepper Motor | 1 | 32000083 |
| 54 | Fresh Air Filter | 1 | 210000501 |
| 55 | Rear Cover Plate | 1 | 23032660 |
| 56 | Condenser Motor Protective Net | 2 | 31100432 |
| 57 | Wall Mounting Bracket | 1 | 25054757 |
| 58 | Drain Pipe | 1 | 31000746 |
| 59 | Fresh Air Duct | 1 | 30901909 |
| 60 | Plastic Sheet Air Pipe | 2 | 30900434 |
| 61 | Grille | 2 | 210000025 |
| 62 | Remote Control Seat | 1 | 210000303 |
| 63 | Battery | 2 | 5200024 |
| 64 | Remote Control | 1 | 31700183 |
| 65 | 8-Pin Male Connector | 1 | 31500914 |
| 66 | 24V AC Transformer | 1 | 31500863 |
| 67 | Adapter Board Cover | 1 | 25075935 |
| 68 | 24V Thermostat Adapter Board | 1 | 31700568 |
| 69 | 8-Pin Female Connector | 1 | 31500913 |
| 70 | 8-Pin Terminal Housing | 1 | 31500912 |
| 71 | Junction Box Cover | 1 | 25077065 |
