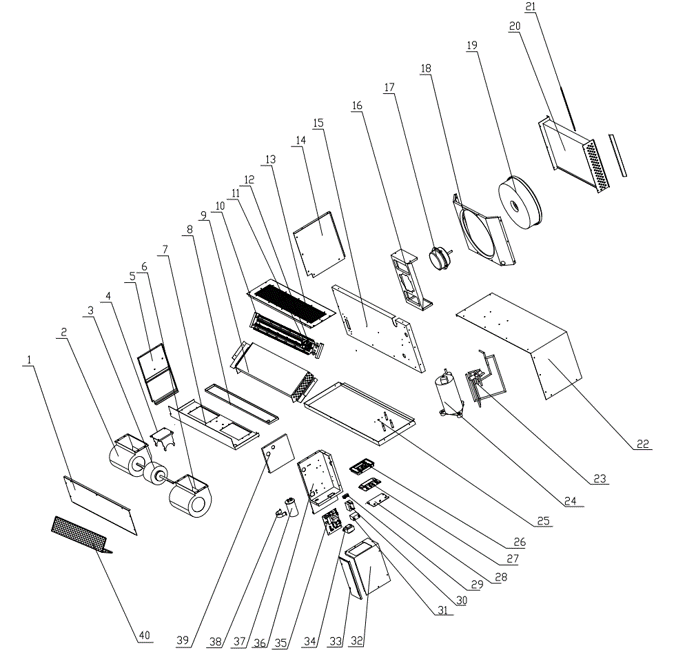

| No. | Part Number | Description | Material | Qty | Remarks | |
| 1 | PCAA-GD12U-06201 | (front panel) | 1.0/ (armor plate of zinc-gilt) | 1 | ||
| 2 | PCEA-GD12U-03104 | (left indoor fan and casing) | (component） | 1 | ||
| 3 | PCAA-GD12U-03101 | (indoor motor) | (component） | 1 | ||
| 4 | PCEA-GD12U-03102 | (indoor motor mounting seat) | 2.0/ (armor plate of zinc-gilt) |
1 | ||
| 5 | PCAA-GD12U-03311 | (left panel of duct) | 1.0/ (armor plate of zinc-gilt) |
1 | ||
| 6 | PCEA-GD12U-03105 | (right indoor fan and casing) | (component） | 1 | ||
| 7 | PCAA-GD12U-03111 | (indoor motor fixed plate) | 1.0/ (armor plate of zinc-gilt) |
1 | ||
| 8 | PCAA-GD12U-03210 | (Water plate welding assembly) | (component） | 1 | ||
| 9 | PCAA-GD12U-03510 | (evaporator component) | (component） | 1 | ||
| 10 | PCEA-GD12U-03700 | (heater assembly) | (component） | 1 | ||
| 11 | KSD 301C-01A | (Self-resetting thermal cut-out forelectric heater) | (component） | 2 | ||
| 12 | KSD 301CC-001R | (Manual-resetting thermal cut-out for electric heater) | (component） | 2 | ||
| 13 | PCAA-GD12U-06101 | (air out panel) | 1.0/ (armor plate of zinc-gilt) |
1 | ||
| 14 | PCAA-GD12U-01201 | (right board) | 1.0/ (armor plate of zinc-gilt) |
1 | ||
| 15 | PCAA-GD12U-01201 | (middle partition board) | 1.0/ (armor plate of zinc-gilt) |
1 | ||
| 16 | PCAA-GD12U-02001 | (outer fan fixing plate) | 1.0/ (armor plate of zinc-gilt) |
1 | ||
| 17 | PTACH-GD12U-05301 | (outdoor motor) | (component） | 1 | ||
| 18 | PCAA-GD12U-02002 | (outer fan mounting plate) | 1.0/ (armor plate of zinc-gilt) |
1 | ||

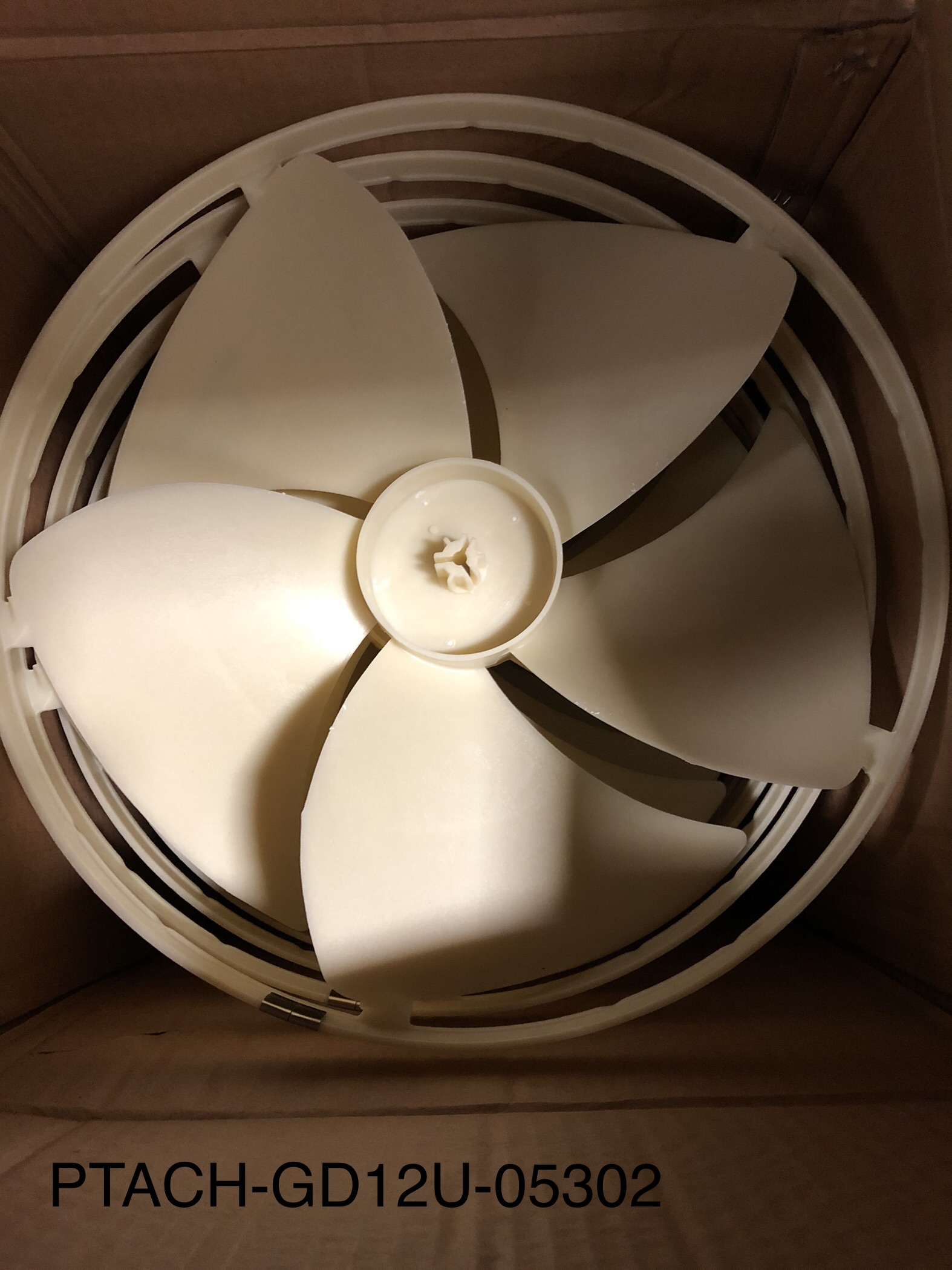

| 19 | PTACH-GD12U-05302 | Outdoor Condenser Fan Blade | (component） | 1 | ||
| 20 | PCAA-GD12U-02100 | (condenser assembly) | (component） | 1 | ||
| 21 | PCAA-GD12U-02003 | (condenser fan board) | 1.0/ (armor plate of zinc-gilt) |
2 | ||
| 22 | PCAA-GD12U-02003 | (top cover) | 1.0/ (armor plate of zinc-gilt) |
1 | ||
| 23 | PCAA-GD12U-02003 | (four-way valve assemably) | (component） | 1 | ||
| 24 | ASN82N1UDZ | (compressor ) | (component） | 1 | for 9000BTU | |
| 24 | PA108M1C-3DZDU1 | (compressor ) | (component） | 1 | for 12000BTU | |

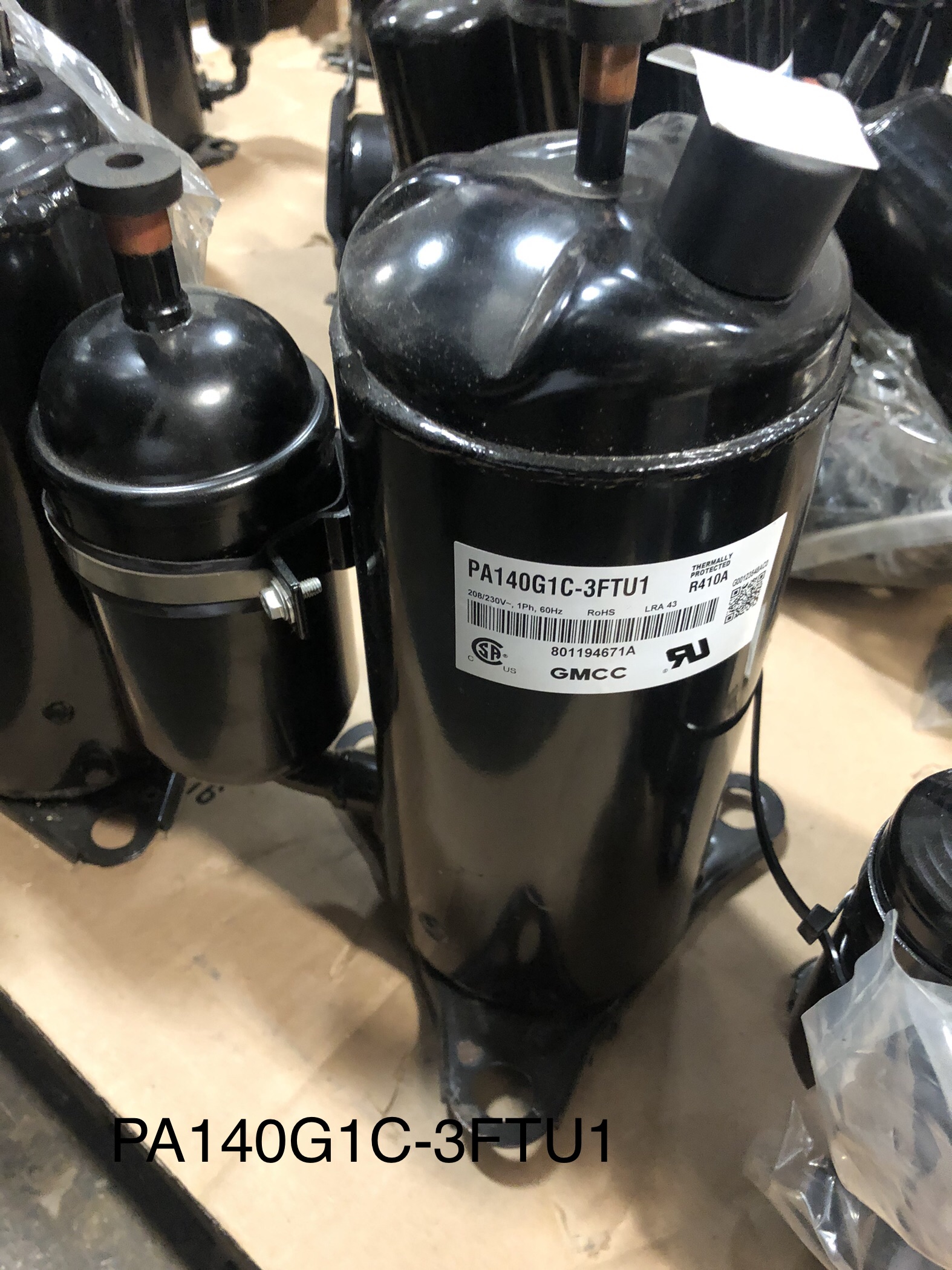

| 24 | PA140G1C-3FTU1 | (compressor ) | (component） | 1 | for 15000BTU | |
| 25 | PCAA-GD12U/TY-01110 | (chassis welding assembly) | (component） | 1 | ||
| 26 | PCAA-GD12U-05600 | (display control box components) |
(component） | 1 | ||
| 27 | PCAA-GD12U-05600 | (display control PCB) |
(component） | 1 | ||
| 28 | PCAA-GD12U-05600 | (display box baseplate) |
ABS | 1 | ||
| 29 | PCAA-GD12U-05103 | HP-T4004(terminal) | (component） | 1 | ||
| 30 | PCAA-12U-05106 | (relay) | (component） | 1 | ||
| 31 | TY-20414 | (capacitor of outdoor fan) | (component） | 1 | ||
| 32 | PCAA-GD12U-05002 | (right side plate of the electric control box) | 1.0/ (armor plate of zinc-gilt) |
1 | ||
| 33 | PCAA-GD12U-05001 | (electric control box cover) | 1.0/ (armor plate of zinc-gilt) |
1 | ||
| 34 | PTAC-GD12U-06303 | (transformer) | (component） | 1 | ||
| 35 | PCAA-GD12U-05201 | (main board) | (component） | 1 | ||
| 36 | PCAA-GD12U-05101 | (electric control box) |
1.0/ (armor plate of zinc-gilt) |
1 | ||
| 37 | 25μF | (capacitor of compressor) | (component） | for 9000BTU | ||
| 37 | 35μF | (component） | 1 | for 12000BTU | ||
| 37 | 40μF | (component） | for 15000BTU | |||
| 38 | (capacitor clip) | 1.0/ (armor plate of zinc-gilt) |
1 | |||
| 39 | PCAA-GD12U-03411 | (right panel of duct) | 1.0/ (armor plate of zinc-gilt) |
1 | ||
| 40 | PCAA-GD12U-03511 | (filter net) | (component） | 1 | ||
| 41 | R410A | |||||
| 42 | Power cord 30A | |||||
| 43 | Carton box:Inner protector + Out carton cover | |||||
| 44 | Insulation assy. | |||||
| 45 | Kinds of Screw ,Standard cable tie etc. | |||||
| 46 | Stickers | |||||
| 47 | Inland transportation cost of container |
Miscellaneous Parts
| Part Number | Description | |
| PTACH-GD12U-05302 | Outdoor Condenser fan blade for PCEA, PCKK, PCDM, PCAA..K235, 9K, 12K, 15K | |
| PCEA-GD12U-05707 | Female harness to connect PCB board and external thermostat pad, PCEA, PCAA, PCKK & PCDM ...K235 series | |
| PCEA-GD12U-05203 | Indoor evaporator coil sensor and Indoor temperature sensor for PCEA,PCAA,PCKK,PCDM,PCWSHP.. HTM series | |
| PCDM-12U-05500 | Female wire assembly for power plug and PCB board - PCDM, PCEA, PCKK, PCAA... K235 series | |
| PCDM-GD9U-03200A | 9K Reversing valve and capillary assy PCEA, PCAA, PCDM, PCKK...K235 series *Capillary assy sold separately (PCDM-GD9U-03200)* | |
| PCEA-GD12U-03101 | Indoor Evaporator motor for PCEA/PCKK/PCAA...K235 series | |
| PCDM-GD12U-03200A | 12K Reversing valve and capaillary assy PCEA, PCAA, PCDM, PCKK...K235 series *Capillary sold separately, SKU#PCDM-GD12U-03200* |
|
| PCDM-GD15U-03200A | 15K Reversing Valve assembly PCDM,PCEA,PCAA,PCKK...K235 series |
