| No. | Part Number | Part Name | Material | Qty | |
| 1 | PCEA-12U/TY-01110 | Chassis assembly | Components | 1 | |
| 2 | PCEA-12U/TY-06201 | Front panel | 1.0 thickness of the galvanized steel sheet |
1 | |
| 3 | PCEA-12U/TY-01002 | Chassis strengthening plate on right side |
1.0 thickness of the galvanized steel sheet |
1 | |
| 4 | PCEA-12U/TY-01001 | Chassis strengthening plate on left side |
1.0 thickness of the galvanized steel sheet |
1 | |
| 5 | PCEA-12U/TY-01201 | Middle partition board | 1.0 thickness of the galvanized steel sheet |
1 | |
| 6 | PCEA-12U/TY-03311 | Left plate of air duct | 1.0 thickness of the galvanized steel sheet |
1 | |
| 7 | PCEA-12U/TY-03210 | Water drain pan assembly | Components | 1 | |
| 8 | PCEA-12U/TY-06103 | Lining plate of Air out panel | 0.8 thickness of the galvanized steel sheet |
1 | |
| 9 | PCEA-12U/TY-06102 | Wind protective net | Wire mesh | 1 | |
| 10 | PCEA-12U/TY-03501 | Left connecting plate of Evaporator | 1.0 thickness of the galvanized steel sheet |
1 | |
| 11 | PCEA-12U/TY-03703 | Automatic Reset thermostat component for air outlet protection |
Components | 1 | |
| 12 | PCEA-12U/TY-03701 | Left fixed plate for electrical heater | Stainless steel plate | 1 | |
| 13 | PCEA-12U/TY-06101 | Air out panel | 1.0 thickness of the galvanized steel sheet |
1 | |
| 14 | PCEA-12U/TY-03702 | Right fixed plate for electrical heater | Stainless steel plate | 1 | |
| 15 | PCEA-12U/TY-03502 | Right connecting plate of Evaporator | 1.0 thickness of the galvanized steel sheet |
1 | |
| 16 | PCEA-12U/TY-03111 | Indoor motor fixed plate | 1.0 thickness of the galvanized steel sheet |
1 | |
| 17 | PCEA-12U/TY-03510 | Evaporator component | Components | 1 | |
| 18 | PCEA-12U/TY-03104 | Left indoor fan and wind casing | Components | 1 | |
| 19 | PCEA-12U/TY-03105 | Right indoor fan and wind casing | Components | 1 | |
| 20 | PCEA-12U/TY-03102 | Indoor motor mounting seat | 2.0 Stainless steel plate | 1 | |
| 21 | PCEA-12U/TY-03101 | Indoor motor | Components | 1 | |
| 22 | PCEA-12U/TY-05107 | Knob switch mounting seat | 1.0 thickness of the galvanized steel sheet |
1 | |
| 23 | PCEA-12U/TY-06301 | Right baffler for Indoor motor | 1.0 thickness of the galvanized steel sheet |
1 | |
| 24 | PCEA-12U/TY-03411 | Right plate for air duct | 1.0 thickness of the galvanized steel sheet |
1 | |
| 25 | PCEA-12U/TY-03705 | Electrical heater assy. | Components | 4 | |
| 26 | PCEA-12U/TY-05106 | Relay | Components | 1 | |
| 27 | PCEA-12U/TY-06303 | Transformer | Components | 1 | |
| 28 | TY-20414 | Capacitor of outdoor fan | Components | 1 | |
| 29 | PCEA-12U-05103 | Terminal block HP-T4002 | Components | 1 | |
| 30 | PCEA-12U-05600 | Display control box components | Components | 1 |  |
| 31 | PCEA-12U-05101 | Electric control box | 0.8 thickness of the galvanized steel sheet |
1 | |
| 32 | PCEA-12U-05201 | Main board | Component | 1 | |
| 33 | PCEA-12U-05001 | Electric control box cover | 0.8 thickness of the galvanized steel sheet |
1 | |
| 34 | PCEA-12U-03704 | Manually Reset thermostat component for air outlet protection |
Component | 1 | |
| 35 | BL-815B1/2-0.3-5 | Terminal block HP-T3031 | Components | 1 | |
| 36 | PCEA-12U-05002 | Right side plate of electric control box |
0.8 thickness of the galvanized steel sheet |
1 | |
| 37 | PCEA-12U-03614 | Evaporator inlet pipe | T2M φ8*0.7 | 1 | |
| 38 | PCEA-12U-03611 | Evaporator inlet pipe A | T2M φ7*0.6 | 1 | |
| 39 | PCEA-12U-03612 | Evaporator inlet pipe B | T2M φ7*0.6 | 1 | |
| 40 | PCEA-12U-03613 | Evaporator inlet pipe C | T2M φ7*0.6 | 1 | |
| 41 | PCEA-12U-03621 | Evaporator outlet pipe A | T2M φ7*0.6 | 1 | |
| 42 | PCEA-12U-03622 | Evaporator outlet pipe B | T2M φ7*0.6 | 2 | |
| 43 | PCEA-12U-02201 | Liquid discharging pipe of condenser |
T2M φ7*0.6 | 1 | |
| 44 | PCEA-12U/TY-04002 | Exhaust pipe of compressor | T2M φ8*0.7 | 1 | |
| 45 | PCEA-9U/TY-04101 | Capillary | φ2.7*1.2 | 1 | |
| 45 | PCEA-15U/TY-04101 | Capillary | φ2.7*1.6 | ||
| 46 | PCEA-9U/TY-04001 | Suction pipe of compressor | T2M φ9.52*0.7 | 1 | |
| 47 | PA82GOC-3BZDU1 | Compressor | Components | 1 | |
| 48 | TY-20502 | Capacitor of compressor | Components | 1 | |
| 49 | PTACH-12U-05302 | Outdoor condenser /Axial flow fan blade | Components | 1 | |
| 50 | PCEA-GD12U-05301 | Outdoor condesner motor YDF-80-4A | Components | 1 | |
| 51 | PCEA-12U-02001 | Outer fan fixed plate | 1.2 thickness of the galvanized steel sheet | 1 | |
| 52 | PCEA-12U-02004 | Condenser cover | 1.0 thickness of the galvanized steel sheet | 1 | |
| 53 | PCEA-12U-02002 | Outer fan mounting plate | 0.8 thickness of the galvanized steel sheet | 1 | |
| 54 | PCEA-09U-02100 | Condenser assembly | Components | 1 | |
| 55 | PCEA-12U-02003 | Leading wind plater for Condenser |
0.8 thickness of the galvanized steel sheet | 2 | |
| 56 | PCEA-12U | Out package carton box | 1 | ||
| 57 | Power cord 6-20P/20amp /240VAC, with length 1750mm |
1 |
Miscellaneous Parts
| Part Number | Description | |
| PTACH-GD12U-05302 | Outdoor Condenser fan blade for PCEA, PCKK, PCDM, PCAA..K235, 9K, 12K, 15K | |

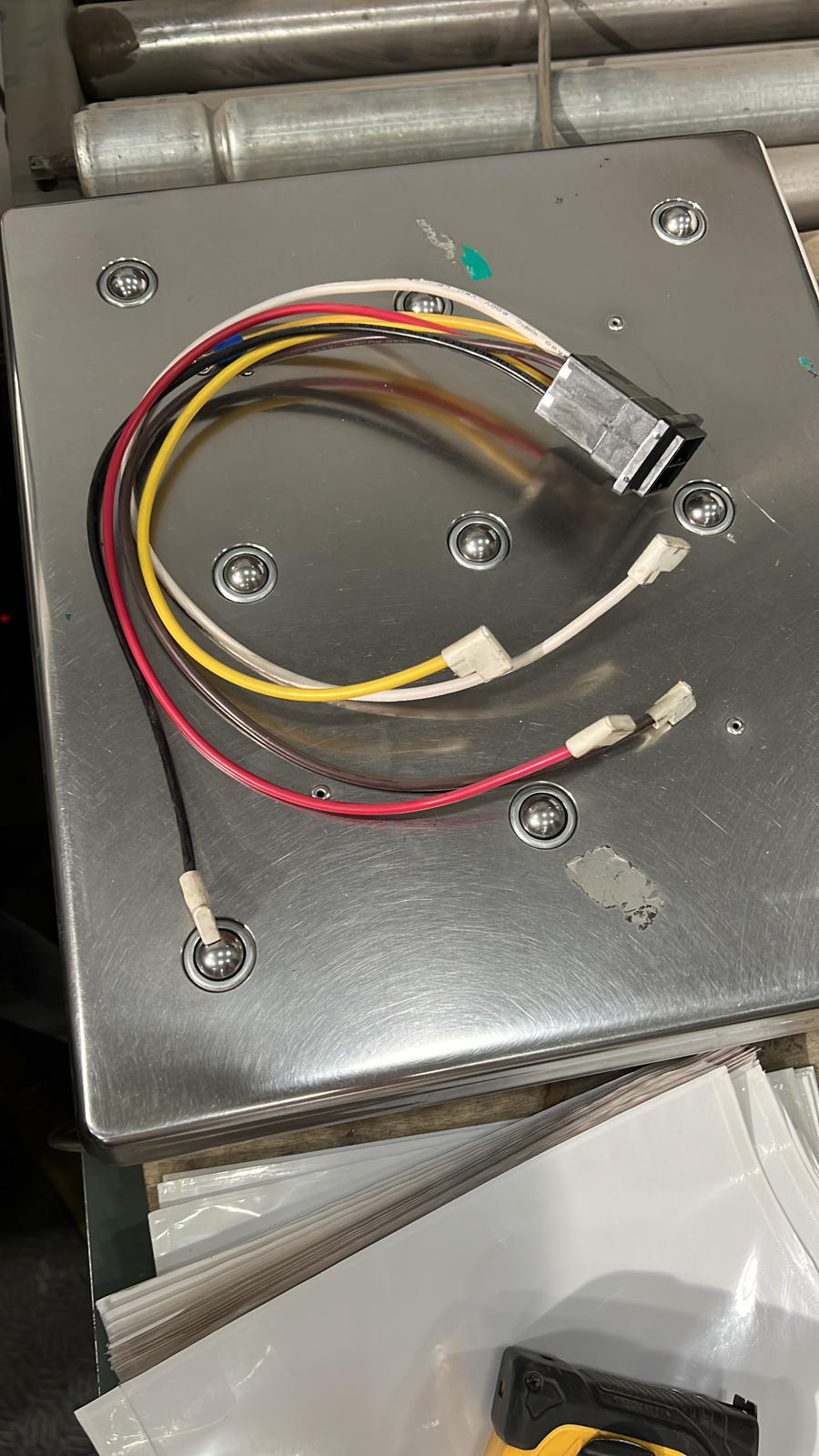

| PCEA-GD12U-05707 | Harness to connect PCB board and external thermostat pad, PCEA, PCAA, PCKK & PCDM ...K235 series | |
| PCEA-GD12U-05203 | Indoor evaporator coil sensor and Indoor temperature sensor for PCEA,PCAA,PCKK,PCDM,PCWSHP.. HTM series | |
| PCDM-12U-05500 | Female wire assembly for power plug and PCB board - PCDM, PCEA, PCKK, PCAA... K235 series | |

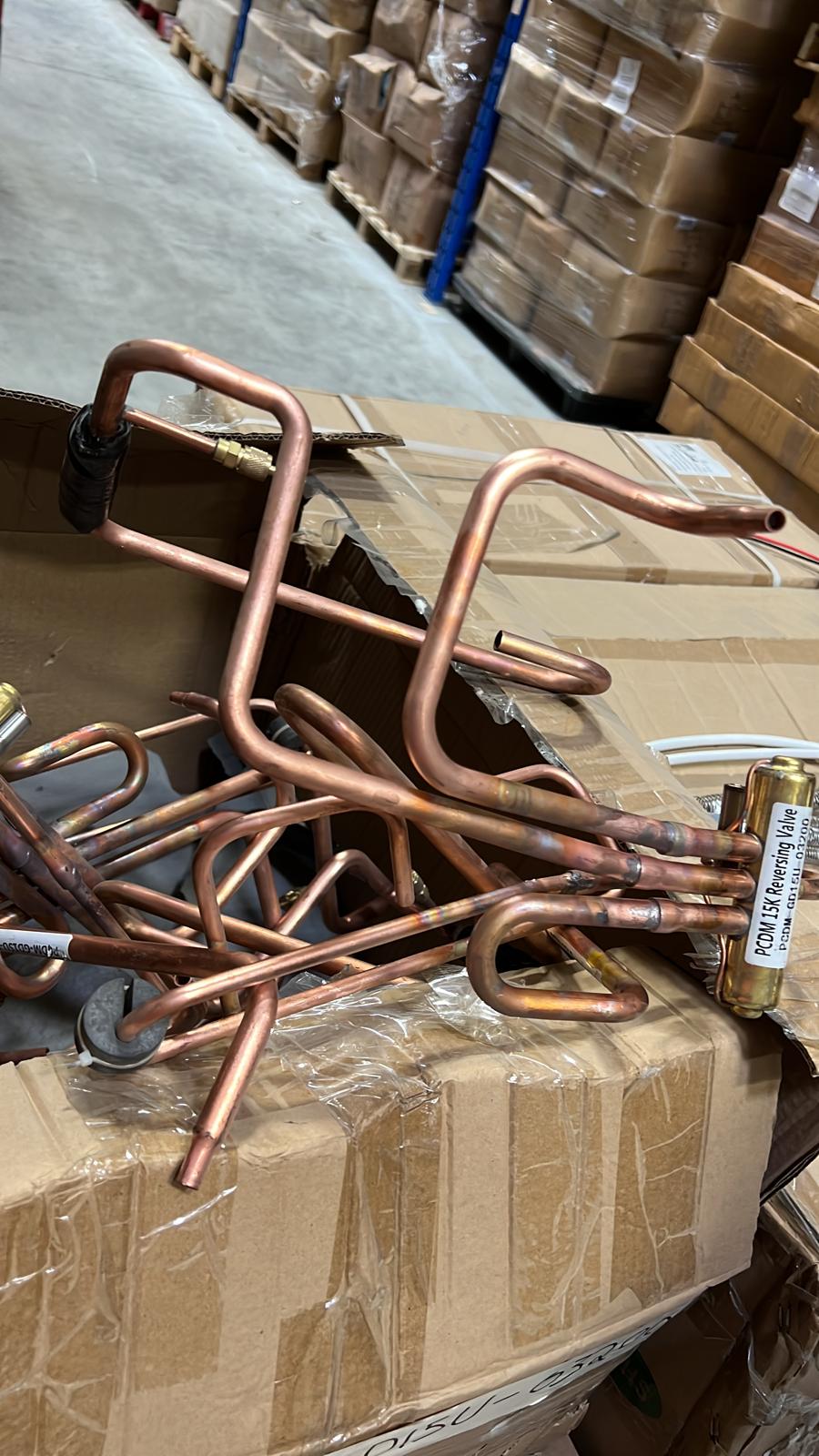

| PCDM-GD9U-03200A | 9K Reversing valve and capillary assy PCEA, PCAA, PCDM, PCKK...K235 series *Capillary assy sold separately (PCDM-GD9U-03200)* | |
| PCEA-GD12U-03101 | Indoor Evaporator motor for PCEA/PCKK/PCAA...K235 series | |
| PCDM-GD12U-03200A | 12K Reversing valve and capaillary assy PCEA, PCAA, PCDM, PCKK...K235 series *Capillary sold separately, SKU#PCDM-GD12U-03200* |
|
| PCDM-GD15U-03200A | 15K Reversing Valve assembly PCDM,PCEA,PCAA,PCKK...K235 series |
