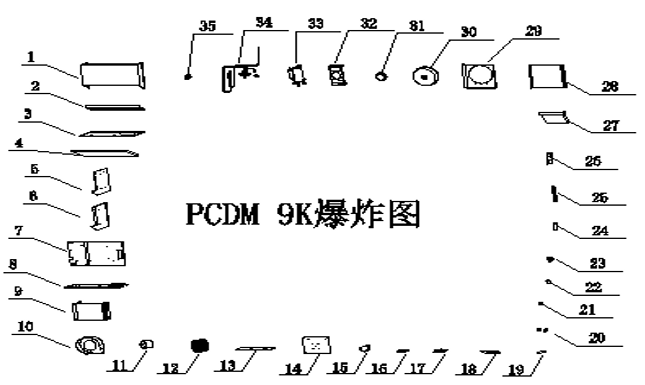

| Item | Part/Drawing No. | Description | Material | Quantity/set | |
| 1 | PCDM-GD9U/TY-01000 | Front Panel | 1.0Galvanized steel sheet | 1 | |
| 2 | PCDM-GD9U/TY-01100 | Front aluminum grill | Assy. | 1 | |
| 3 | PCDM-GD9U-01600 | Top cover | 1.0Galvanized steel sheet | 1 | |
| 4 | PCDM-GD9U-0900 | Chassis Assy. | Assy. | 1 | |
| 5 | PCDM-GD9U-01300 | Left plate | 1.0Galvanized steel sheet | 1 | |
| 6 | PCDM-GD9U-01400 | Right plate | 1.0Galvanized steel sheet | 1 | |
| 7 | PCDM-GD9U-01500 | Middle separated plate | 1.0Galvanized steel sheet | 1 | |
| 8 | PCDM-GD9U-01800 | Fixture plate for PCB board | 1.0Galvanized steel sheet | 1 | |

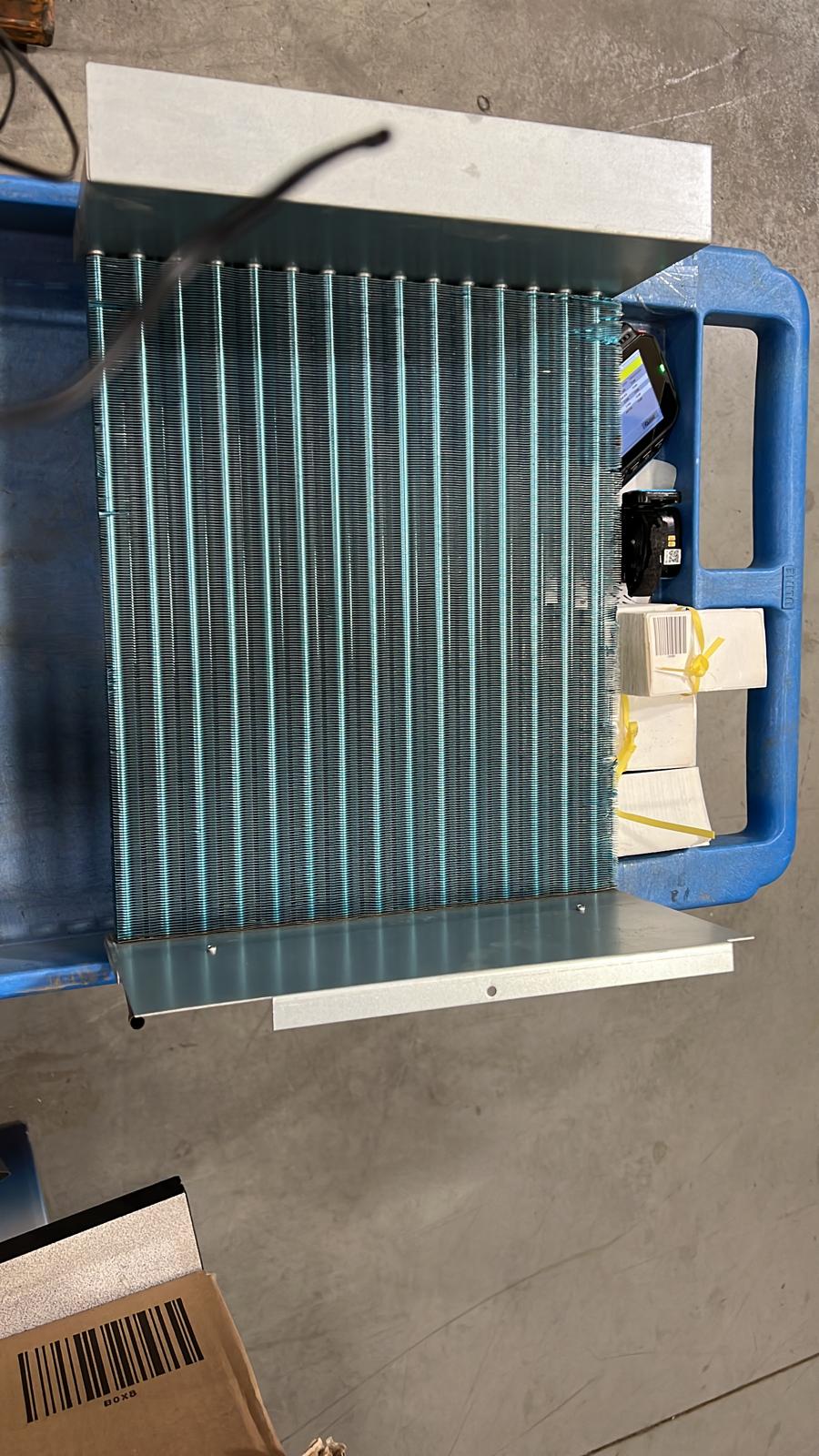

| 9 | PCDM-GD9U-01900 | Evaporate coil assy. | Assy. | 1 | |
| 10 | PCDM-GD9U-02000 | Windy housing | 1.0Galvanized steel sheet | 1 | |

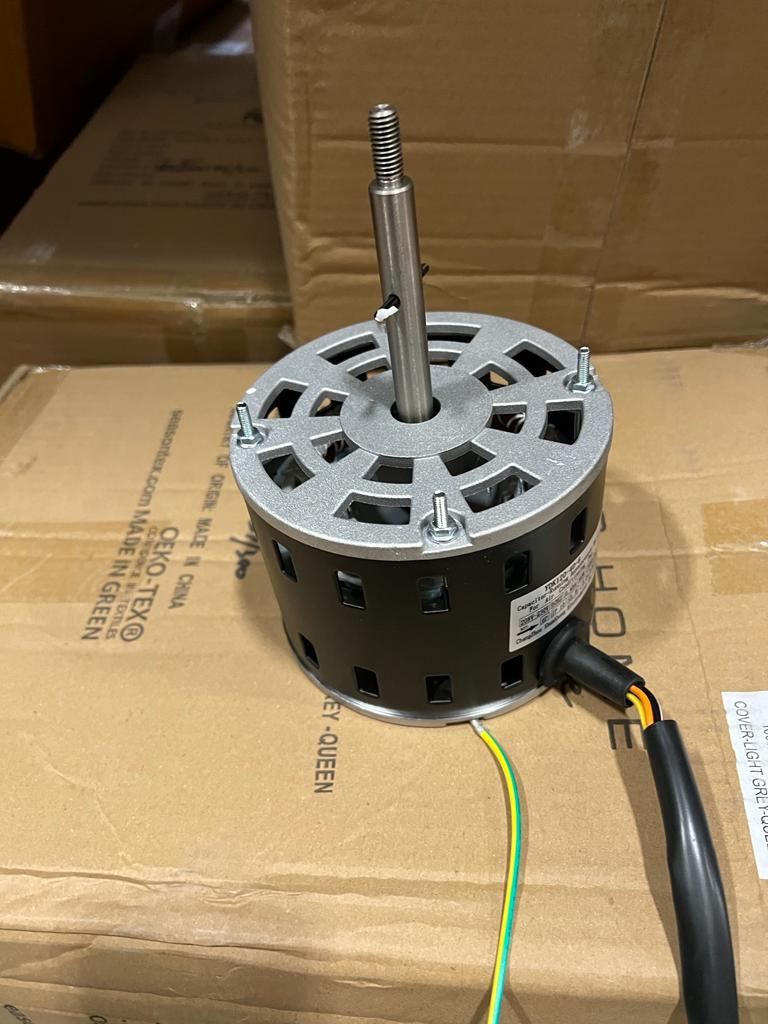

| 11 | PCDM-GD9U-02200 | Indoor motor | Components | 1 |  |

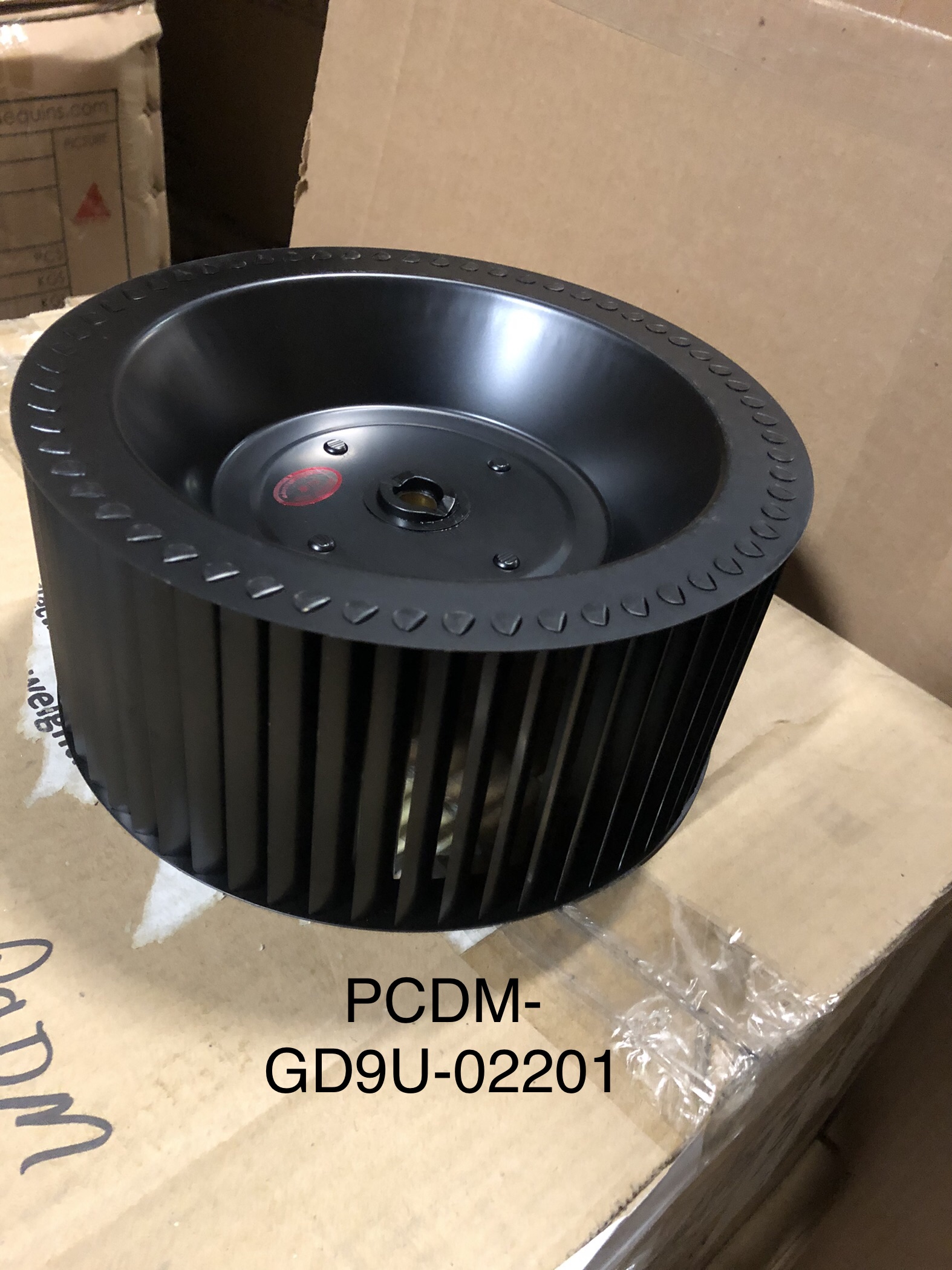

| 12 | PCDM-GD9U-02201 | Indoor blower/ fan | Components | 1 | |
| 13 | PCDM-GD9U-02500 | Drain pan | 1.0 SUS 304 | 1 | |
| 14 | PCDM-GD9U-02100 | Fixture plate for indoor motor | 1.0 stainess sheet | 1 | |
| 15 | PCDM-GD9U-02400 | Separated plate between PCB board and air follow | 1.0Galvanized steel sheet | 1 | |
| 16 | PCDM-GD9U-04001 | Fixture plates for display board | Components | 1 | |
| 17 | PCDM-GD9U-04000 | Main PCB board | Components | 1 |  |
| 18 | PCDM-GD9U-03400 | Fixture plates for display board | 1.0 stainless sheet | 1 | |
| 19 | PCDM-GD9U-04007 | Terminal block | Components | 1 | |
| 20 | PCDM-GD9U-04002 | Motor capacitor | Components | 2 | |
| 21 | PCDM-GD9U-04004 | Transformer | Components | 1 | |
| 22 | PCDM-GD9U-04005 | Heater Relay | Components | 1 |  |
| 23 | PCDM-GD9U-04006 | Automatic thermostat fuse | Components | 2 | |
| 24 | PCDM-GD9U-04003 | 25UF Compressor capacitor | Components | 1 | |
| PCDM-GD12U-04003 | 35UF Compressor capacitor | Components | 1 | ||
| PCDM-GD15U-04003 | 40UF Compressor capacitor | Components | 1 | ||
| 25 | PCDM-GD9U-01504 | Wind in baffle | 1.0Galvanized steel sheet | 1 | |
| 26 | PCDM-GD9U-03000 | Air fresh door | 1.0Galvanized steel sheet | 1 | |
| 27 | PCDM-GD9U/TY-03100 | Heater assy. | Components | 1 | |
| 28 | PCDM-GD9U-02600 | Condenser coil assy. | Components | 1 |  |
| PCDM-GD12U-02600 | Condenser coil assy. | Components | 1 | ||
| PCDM-GD15U-02600 | Condenser coil assy. | Components | 1 | ||
| 29 | PCDM-GD9U-02800 | Fixture plate for outdoor motor | 1.0Galvanized steel sheet | 1 | |
| 30 | PTACH-GD12U-05302 | Outdoor Condenser Fan Blade | Components | 1 |  |
| 31 | PCDM-GD9U-02900 | Outdoor motor | Components | 1 | |
| 32 | PCDM-GD9U-02700 | Fixture plate for outdoor motor | 1.0Galvanized steel sheet | 1 | |
| 33 | PA82G0C-3BZDU/ ASN82N1UDZ | Compressor | Components | 1 | |
| PA108M1C-3DZDU1 | Compressor | Components | 1 | ||

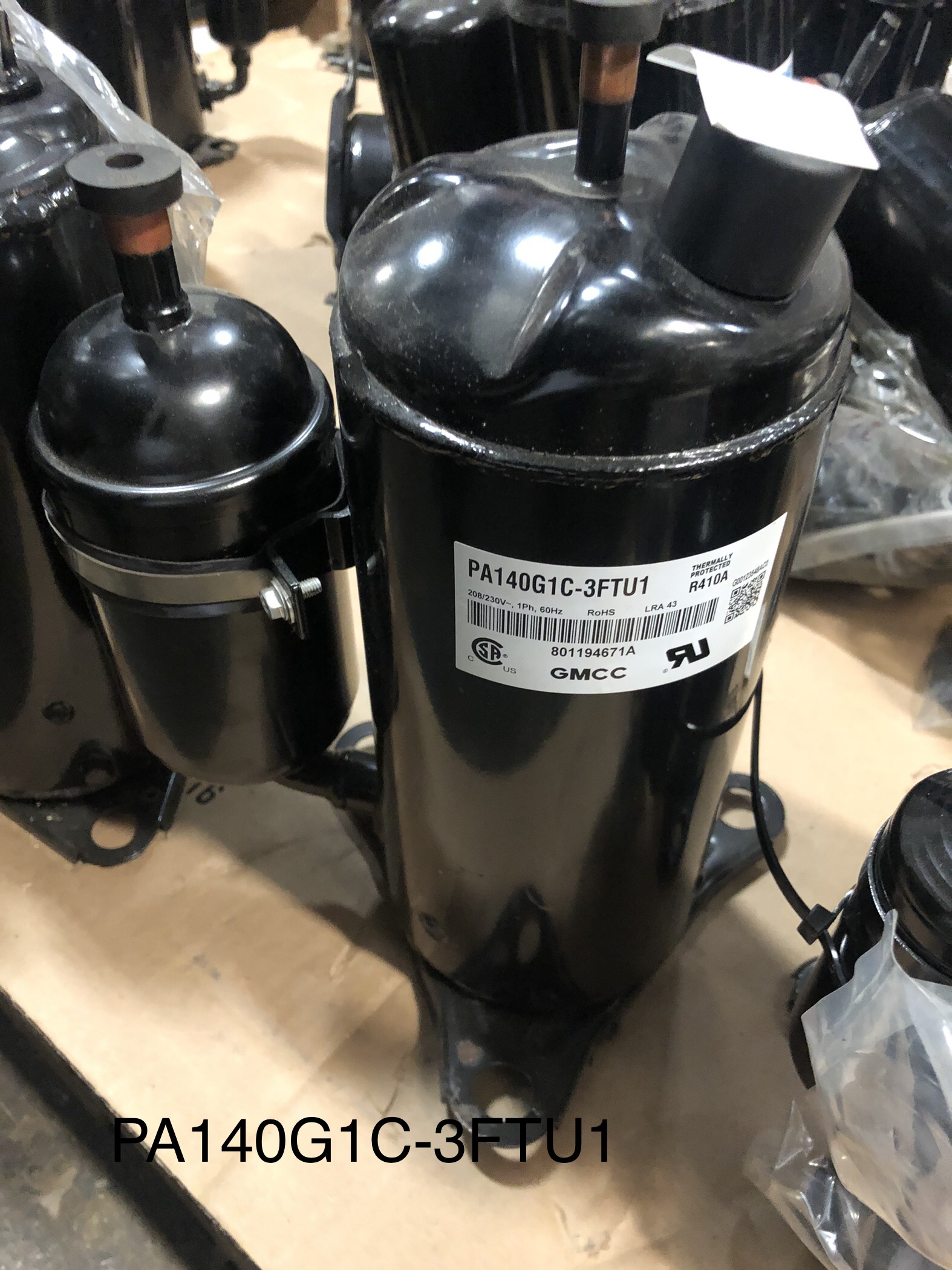

| PA140G1C-3FTU1 | Compressor | Components | 1 | ||
| 34 | PCDM-GD9U-03200 | Four- way valve assy.with capillary | Components | 1 |  |
| 35 | PCDM-GD9U-04100 | Drain water valve | Components | 1 | |
| 36 | Filter | 1 | |||
| 37 | Carton box: Inner protector + Out carton cover | 1 | |||
| 38 | Insulation assy. | 1 | |||
| 39 | PCEA-GD12U-03704 | Manually - resetting thermostat for heater | Components | 2 |  |
| 40 | POWER CORD 30384XXX 30amp /240VAC，with Length 1750mm | 1 |
Miscellaneous Parts
| Part Number | Description | |
| PTACH-GD12U-05302 | Outdoor Condenser fan blade for PCEA, PCKK, PCDM, PCAA..K235, 9K, 12K, 15K | |
| PCEA-GD12U-05707 | Harness to connect PCB board and external thermostat pad, PCEA, PCAA, PCKK & PCDM ...K235 series | |
| PCEA-GD12U-05203 | Indoor evaporator coil sensor and Indoor temperature sensor for PCEA,PCAA,PCKK,PCDM,PCWSHP.. HTM series | |
| PCDM-12U-05500 | Female wire assembly for power plug and PCB board - PCDM, PCEA, PCKK, PCAA... K235 series | |
| PCDM-GD9U-03200A | 9K Reversing valve and capillary assy PCEA, PCAA, PCDM, PCKK...K235 series *Capillary assy sold separately (PCDM-GD9U-03200)* | |

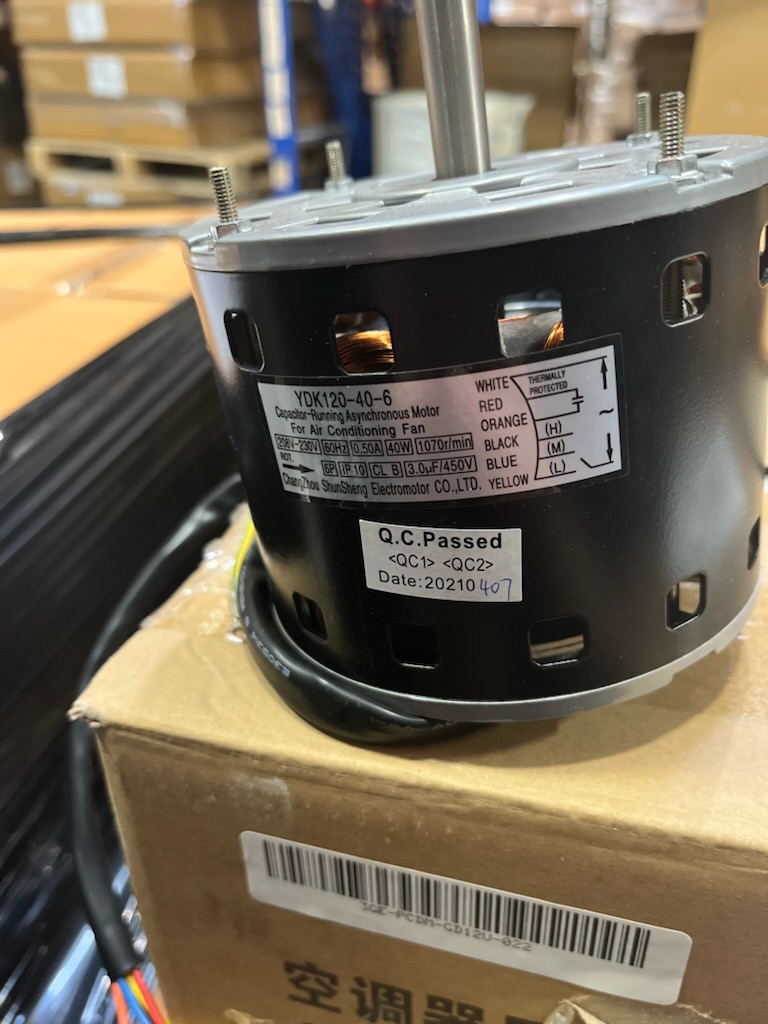

| PCDM-GD9U-02200 | 9K Indoor Evaporator Motor for PCDM...K235 - YDK120-40-6 208/230v 0.5A 40W 3uF/450V | |
| PCDM-GD12U-03200A | 12K Reversing valve and capaillary assy PCEA, PCAA, PCDM, PCKK...K235 series *Capillary sold separately, SKU#PCDM-GD12U-03200* |
|
| PCDM-GD12U-02200 | 12K & 15K Indoor Evaporator motor for PCDM...K235 series | |
| PCDM-GD15U-03200A | 15K Reversing Valve assembly PCDM,PCEA,PCAA,PCKK...K235 series |
