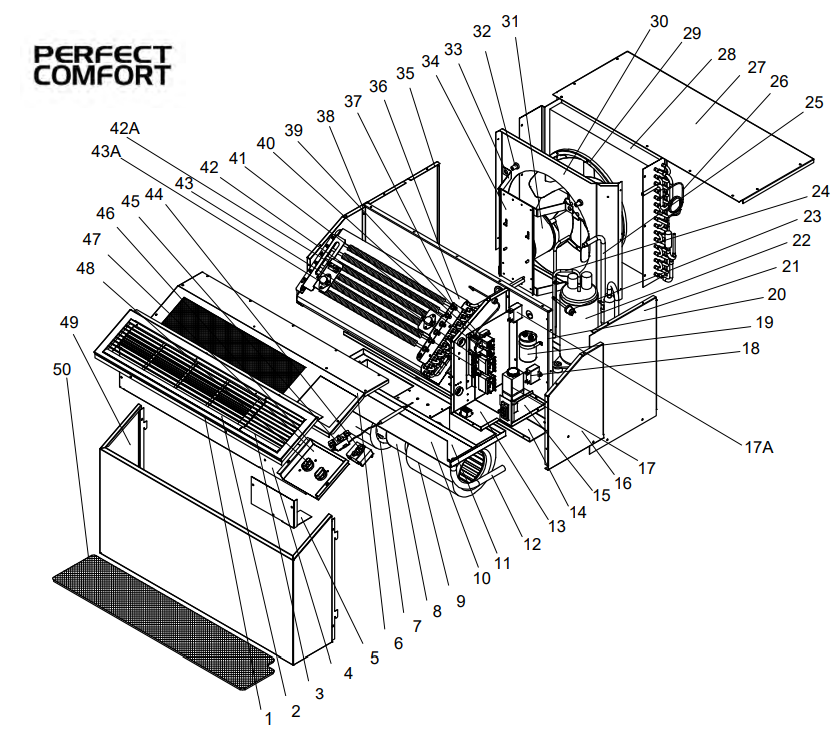

| No. |
Description |
Quantity |
Part # |
|
|
| 1 |
Discharge Grill Frame |
1 |
PCPT-127041109 |
|
|
| 2 |
Discharge Grille |
1 |
PCPT-127040758 |
|
|
| 3 |
Control Cover |
1 |
PCPT-127020521 |
|
|
| 4 |
Front Cover |
1 |
PCPT-127020857 |
|
|
| 5 |
Electric Front Cover |
1 |
PCPT-127030320 |
|
|
| 6 |
Evap. Top Cover |
1 |
PCPT-122180075 |
|
|
| 7 |
Evap. Fan Wheel Left |
1 |
PCPT-122130032 |
|
|
| 8 |

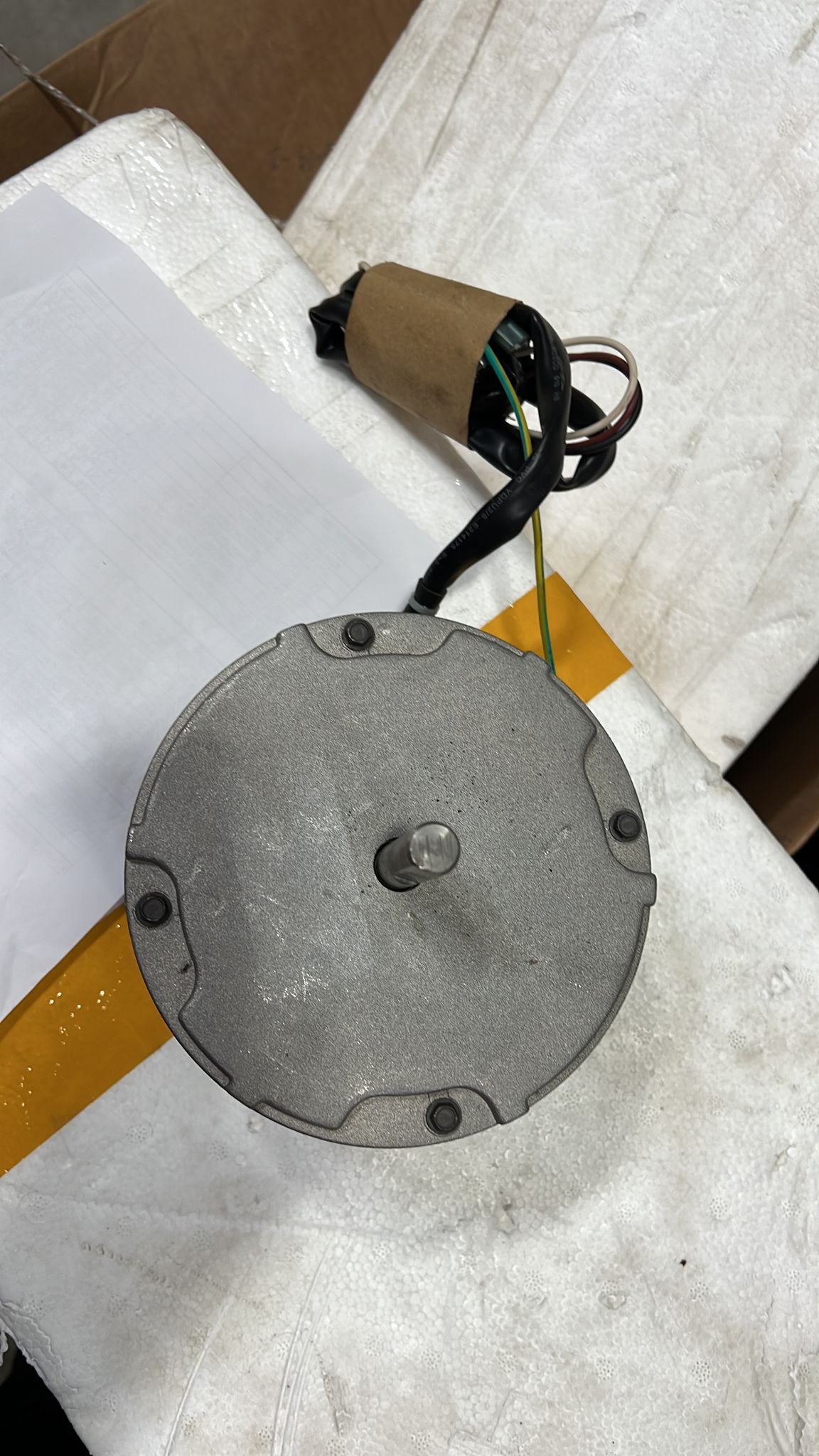

Evap. Fan Motor |
1 |
PCPT-131040100 |
No longer in stock |
|
| 9 |
Evap. Fan Wheel Right |
1 |
PCPT-122130033 |
|
|
| 10 |
Fan Deck |
1 |
PCPT-127041047 |
|
|
| 11 |
Drain Pan |
1 |
PCPT-122160398 |
|
|
| 12 |
Drain Hose |
2 |
PCPT-128070110 |
|
|
| 13 |
Evap. Bracket Right |
1 |
PCPT-122020061 |
|
|
| 14 |
Balance Bracket |
1 |
PCPT-127020861 |
|
|
| 15 |
Electric Mounting Sheet |
1 |
PCPT-127030367 |
|
|
| 16 |
Inside Right Cover |
1 |
PCPT-127020855 |
|
|
| 17 |
Heat Delay Relay |
1 |
PCPT-131120032 |
|
 |
| 17A |

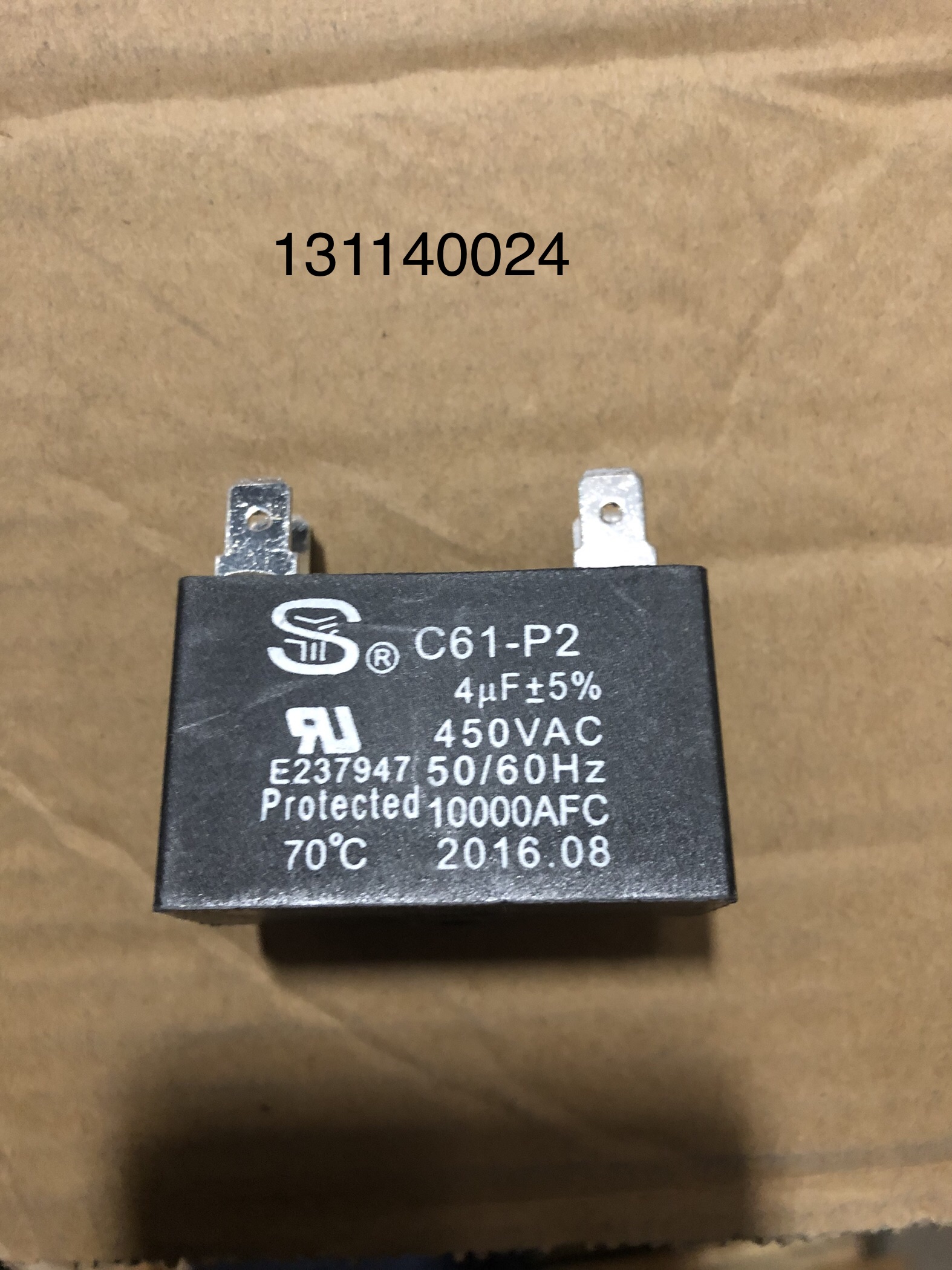

Outdoor motor capacitor |
1 |
PCPT-131140024 |
|
 |
| 18 |
Capacitor for Evap. Fan Motor |
1 |
PCPT-131140041 |
No longer in stock |
|
| 19 |

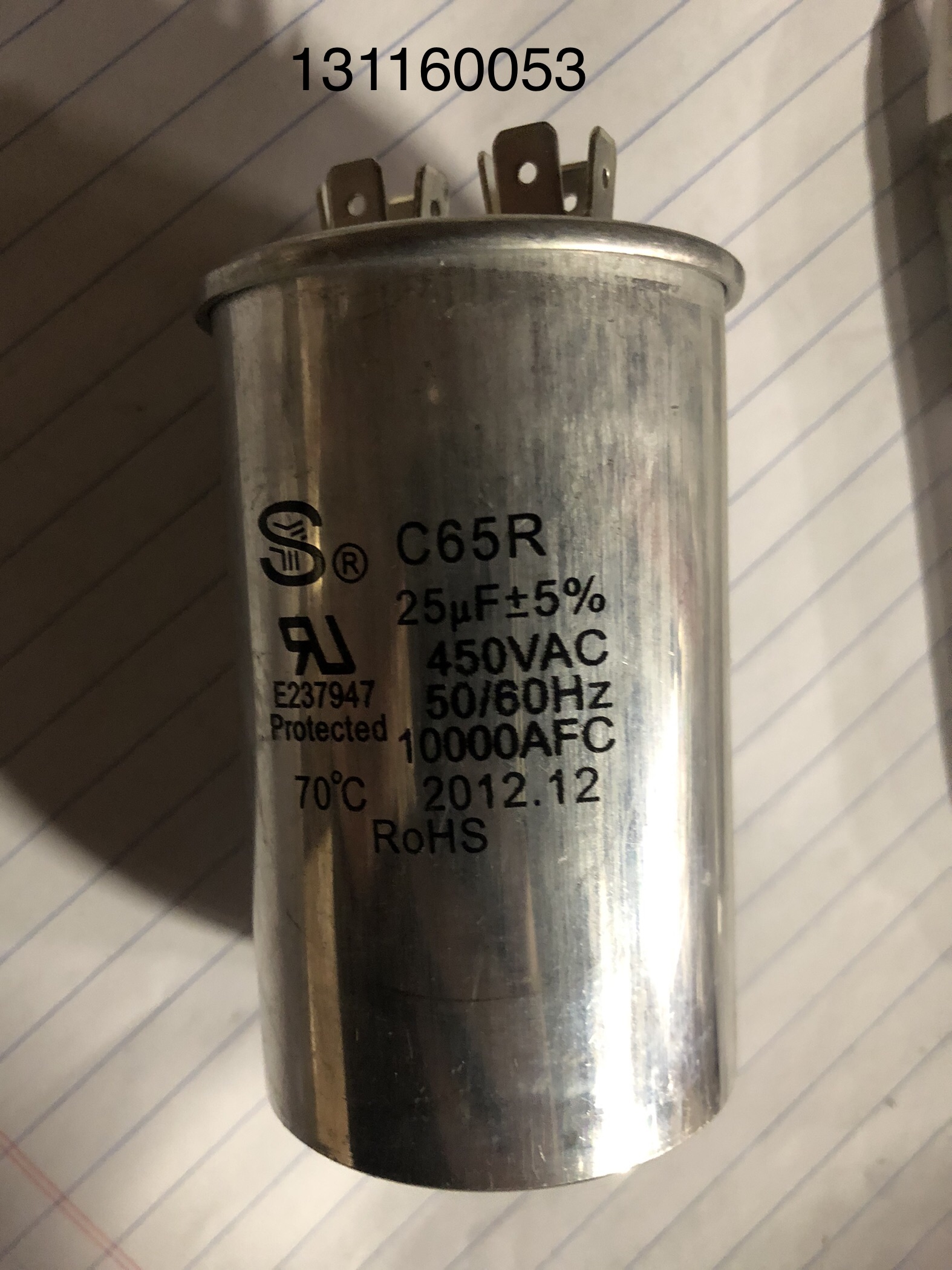

Capacitor of Compressor |
1 |
PCPT-131160053 |
|
 |
| 20 |
Base Pan |
1 |
PCPT-123150034 |
|
|
| 21 |
Outside Right Cover |
1 |
PCPT-127020598 |
|
|
| 22 |
Compressor |
1 |
PCPT-133150021 |
|
|
| 23 |
High-Pressure Switch |
1 |
PCPT-131090039 |
No longer in stock |
|
| 24 |
Discharge Pipe |
1 |
PCPT-129161296 |
|
|
| 25 |
Suction Pipe |
1 |
PCPT-122040174 |
|
|
| 26 |
Capillary |
1 |
PCPT-124090068 |
|
|
| 27 |
Condenser Top Cover |
1 |
PCPT-127041049 |
|
|
| 28 |
Condenser Assy |
1 |
PCPT-121050236 |
|
|
| 29 |
Condenser Fan Blade |
1 |
PCPT-127030086 |
|
|
| 30 |
Condenser Fan Bracket |
1 |
PCPT-127040748 |
|
|
| 31 |
Outdoor condenser Motor |
1 |
PCPT-131040099 |
|
 |
| 32 |
Rubber Nut |
1 |
PCPT-139010040 |
|
|
| 33 |
Mounting Bracket, Condenser Motor |
1 |
PCPT-127041104 |
|
|
| 34 |
Condenser Motor Mounting Sheet |
1 |
PCPT-127040219 |
|
|
| 35 |
Condenser Left Cover |
1 |
PCPT-127020596 |
|
|
| 36 |
Evaporator Assy |
1 |
PCPT-121010239 |
|
|
| 37 |
Electric Heater |
1 |
PCPT-122070537 |
|
|
| 38 |
Evap. Left Cover |
1 |
PCPT-122020055 |
|
|
| 39 |
Two Pins Terminal Block |
1 |
PCPT-131030079 |
|
|
| 40 |

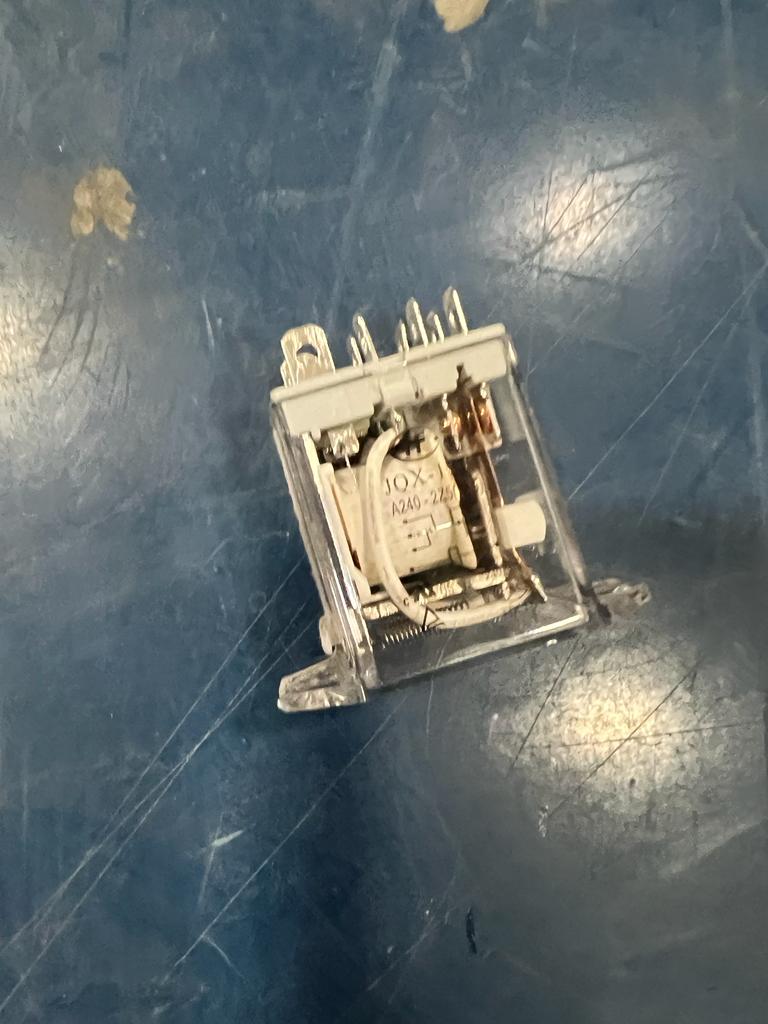

Relay for Fan |
2 |
PCPT-131120009 |
|
 |
| 41 |

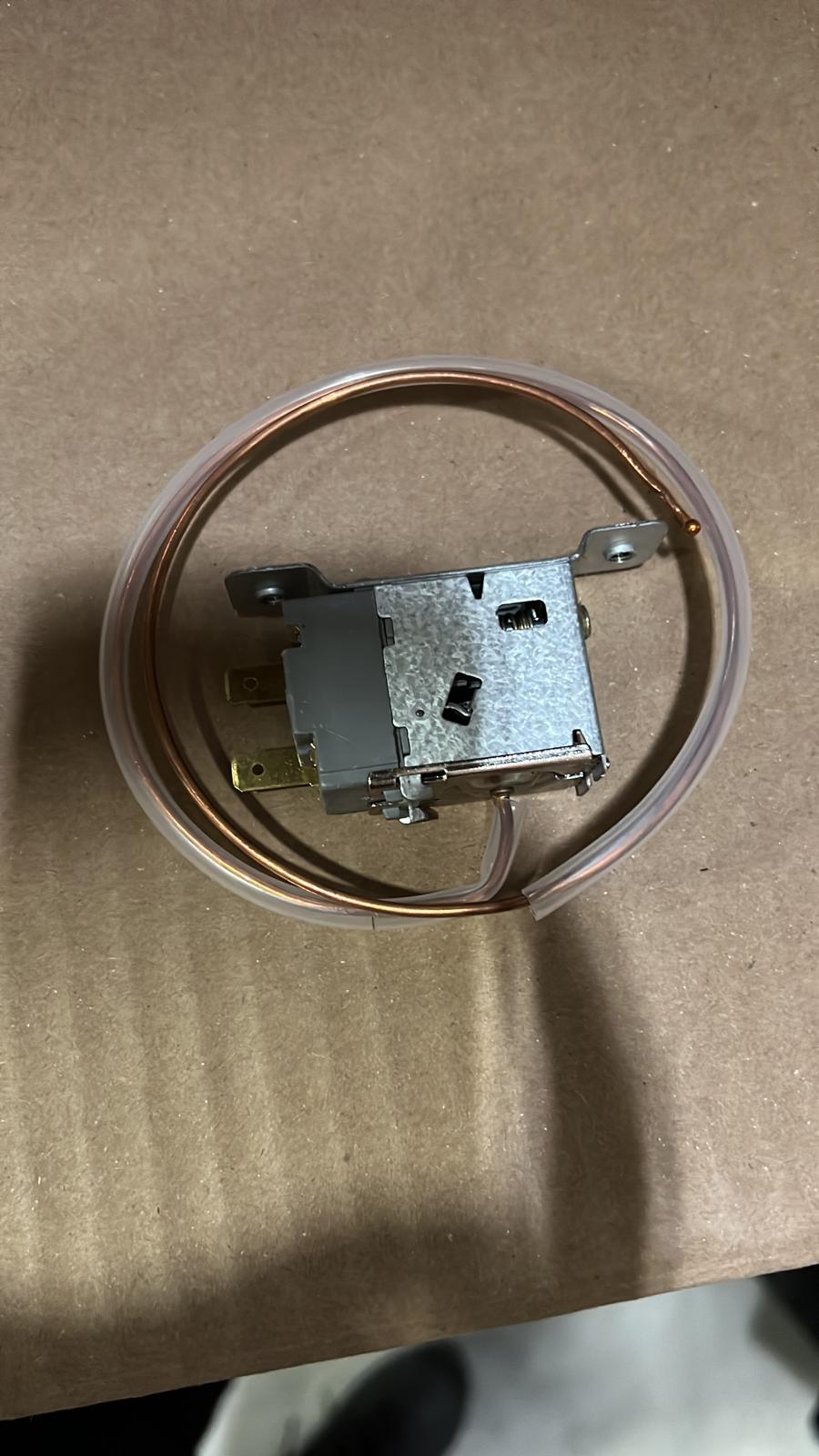

Freeze Thermostat |
1 |
PCPT-131190080 |
|
 |
| 42 |
Relay for Heater and Compressor |
2 |
PCPT-131120024 |
|
|
| 42A |

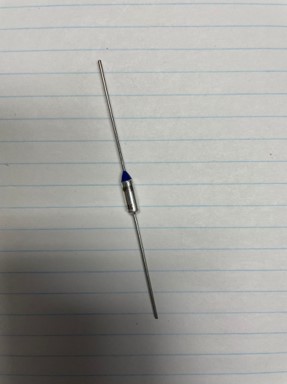

Thermal fuse for electric heater |
1 |
PCPT-131080046 |
|
 |
| 43 |
Four Pins Terminal Block |
1 |
PCPT-131030095 |
|
|
| 43A |

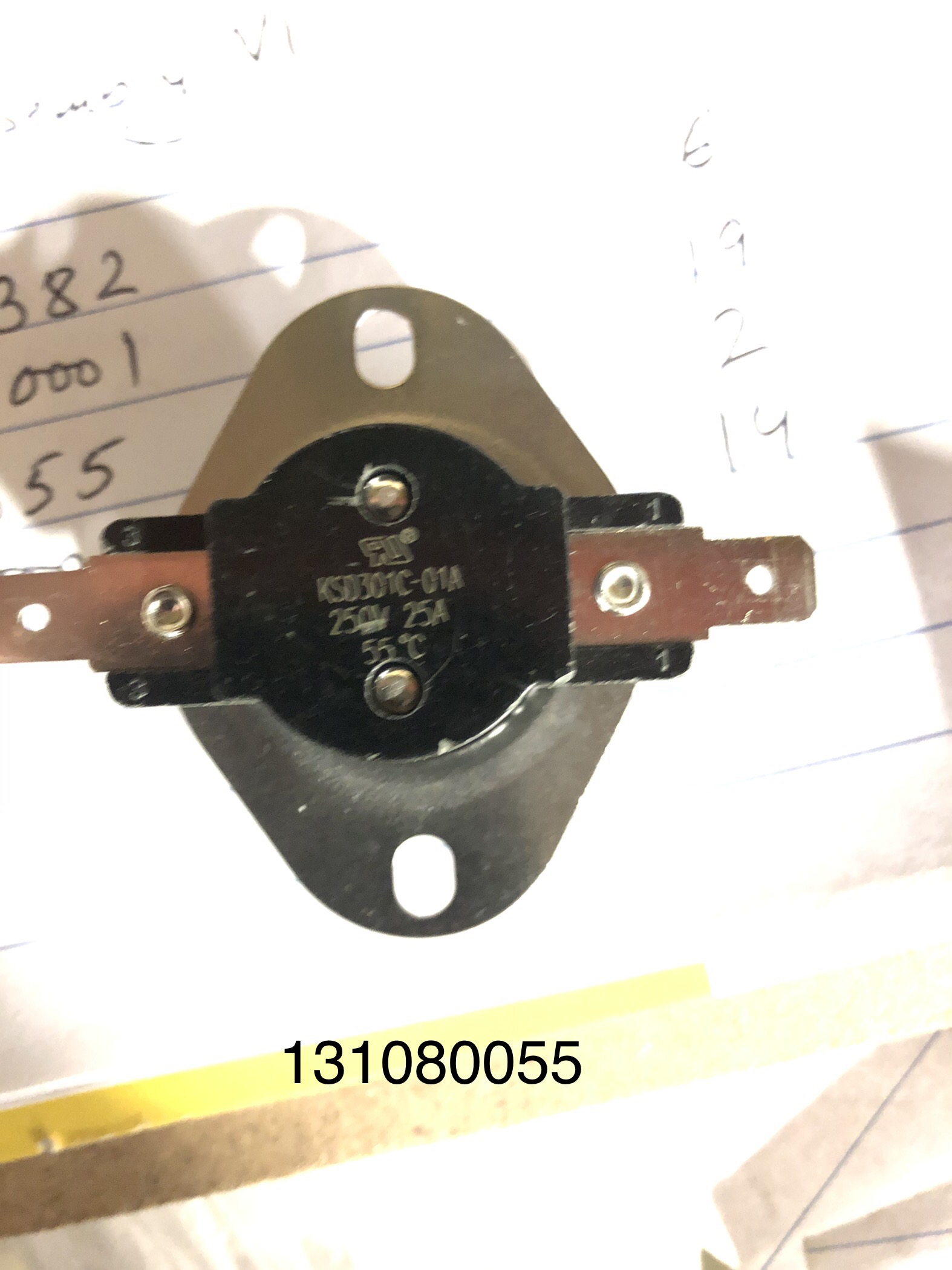

High Limit Switch for Heater 55C/45C |
2 |
PCPT-131080055 |
Replaced with 131080065 |
 |
| 44 |

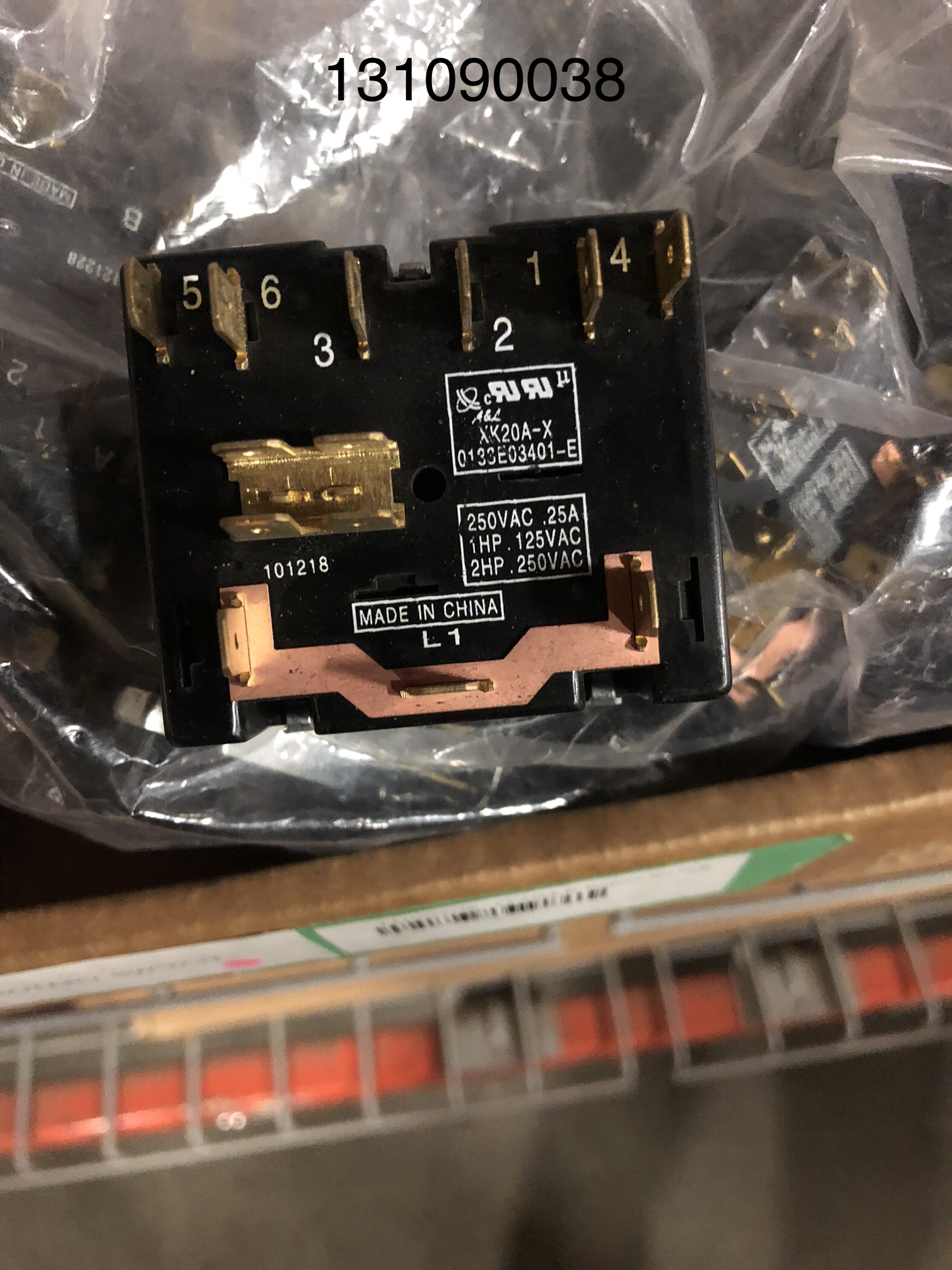

Rotary Switch |
1 |
PCPT-131090038 |
|
 |
| 45 |

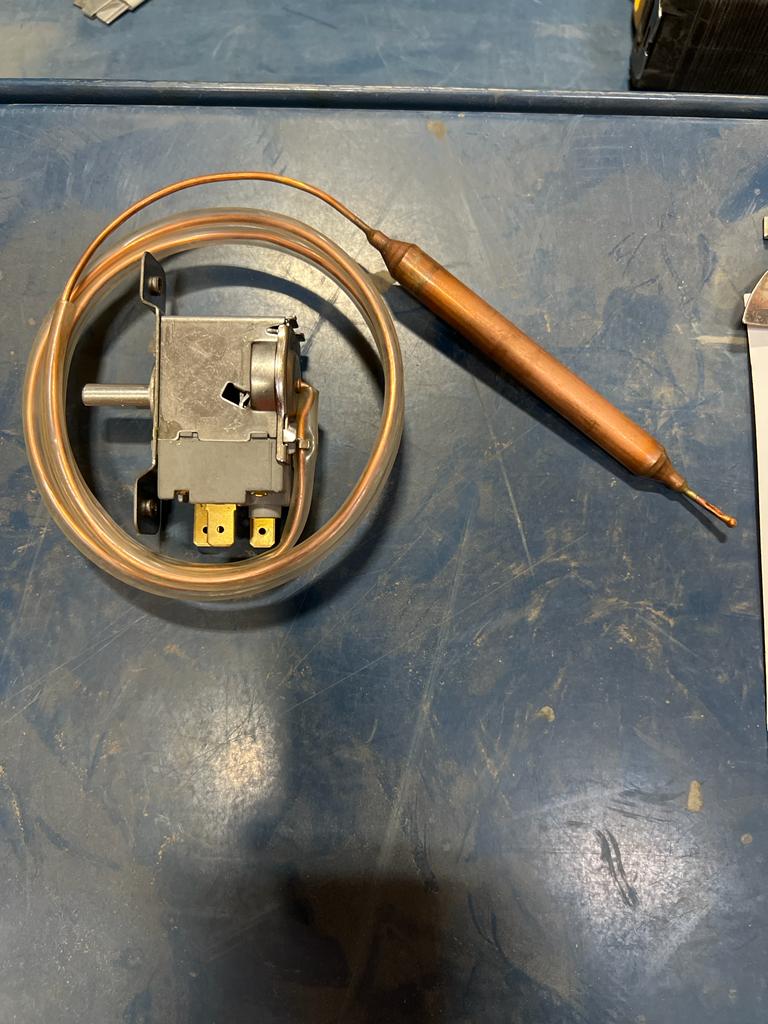

Main Thermostat |
1 |
PCPT-131080025 |
|
 |
| 46 |
Control Plate |
1 |
PCPT-128040382 |
|
|
| 47 |
Film of Control Plate |
1 |
PCPT-127030311 |
|
|
| 48 |

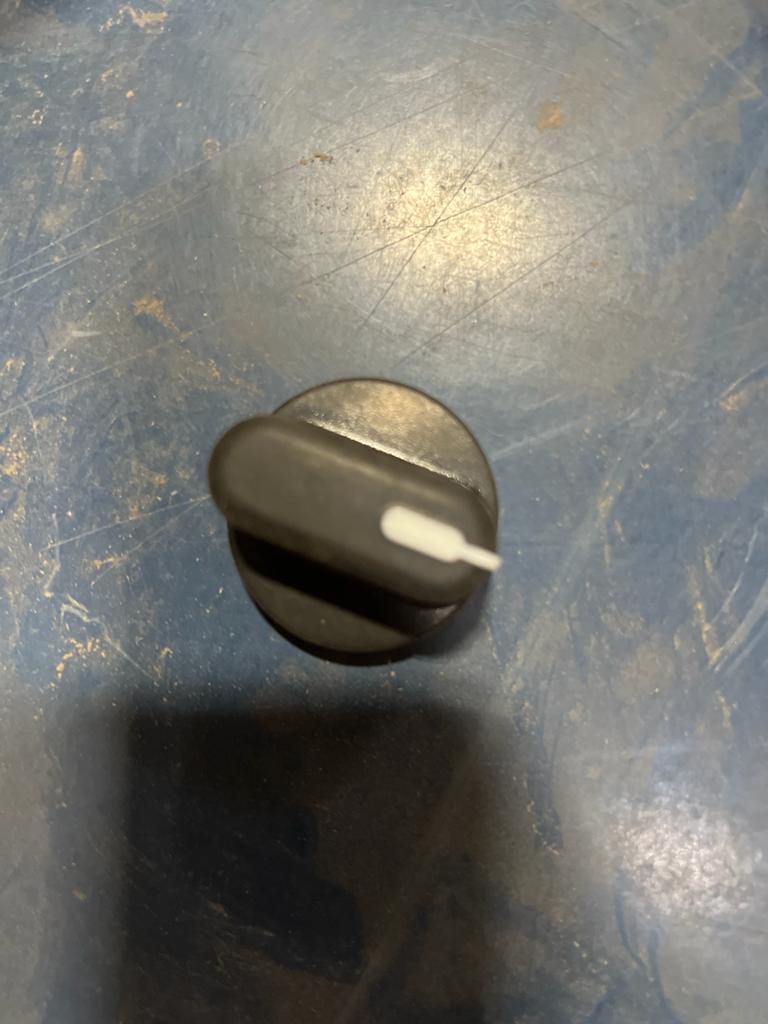

Rotary Knob |
2 |
PCPT-131090031 |
|
 |
| 49 |
Cover |
1 |
PCPT-127041064 |
|
|
| 50 |
Filter |
1 |
PCPT-128020515 |
|
|
