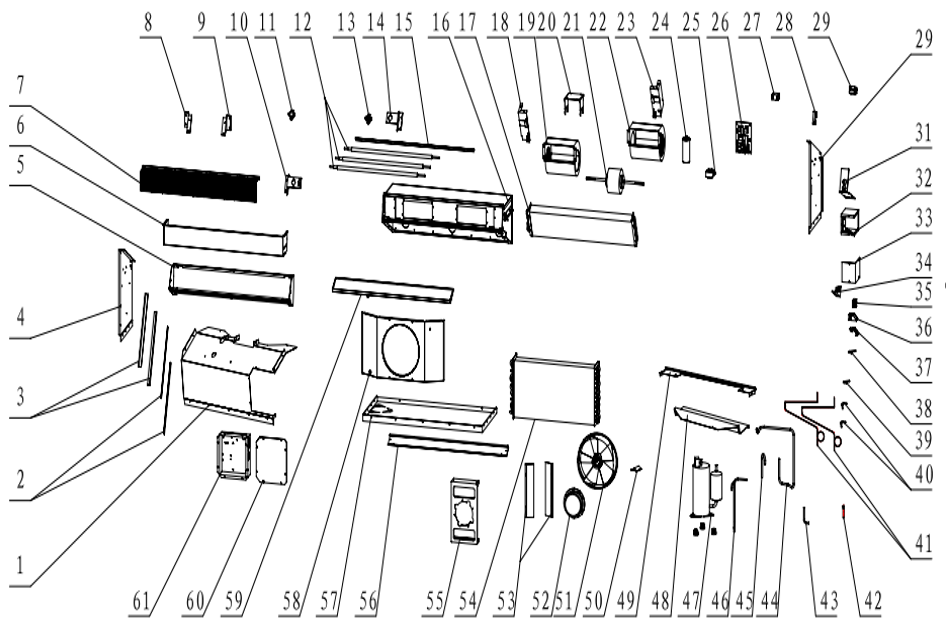

| Item | Part No | Part Name | Material | Qty/Set | Remarks |
| 1 | PCKK-GD12U-01401 | Front Panel | 1.0 Galvanized steel sheet | 1 | |
| 2 | PCKK-GD12U-01202 | Cable sealing plate | 1.0 Galvanized steel sheet | 2 | |
| 3 | PCKK-GD12U-01203 | Cable sealing rubber strip | Rubber | 2 | |
| 4 | PCKK-GD12U-01201 | Left Panel | 1.0 Galvanized steel sheet | 1 | |
| 5 | PCKK-GD12U-06210 | Air outlet welding Assembly. | 1 | ||
| 6 | PCKK-GD12U-06811 | Air outlet baffle | 1.0 Galvanized steel sheet | 1 | |
| 7 | PCKK-GD12U-06710 | Air outlet protection network component | 1 | ||
| 8 | PCKK-GD12U-067403 | Left support for Electrical Heater | 1.0 Galvanized steel sheet | 1 | |
| 9 | PCKK-GD12U-06404 | Right support for Electrical Heater | 1.0 Galvanized steel sheet | 1 | |
| 10 | PCKK-GD12U-06401 | Left fixture plate for Electrical Heater | 1.0 Galvanized steel sheet | 1 | |
| 11 | PCKK-GD12U-03703 | Automatic reset thermostats | 2 | ||
| 12 | PCKK-GD12U-03705 | Electrical Heater components | 2+3Kw | 1 |  |
| 13 | PCKK-GD12U-03704 | Manually reset thermostats | 2 | ||
| 14 | PCKK-GD12U-06402 | RIght fixture plate for Electrical Heater | 1.0 Galvanized steel sheet | 1 | |
| 15 | PCKK-GD12U-01501 | Water baffle for Drain pan | 1.0 Galvanized steel sheet | 1 | |
| 16 | PCKK-GD12U-06110 | Wind guide frame welding assembly | 1 | ||
| 17 | PCKK-GD12U-03300 | Evaporator coil assy | 1 | ||
| 18 | PCKK-GD12U-03100 | Left connecting plate assy. for Eva.Coil | 1 | ||
| 19 | PCEA-GD12U-03104 | Left indoor fan and casing | 1 | ||
| 20 | PCEA-GD12U-03102 | Indoor motor mounting seat | 2.0 Galvanized steel sheet | 1 | |
| 21 | PCEA-GD12U-03101 | Indoor motor | 1 | No longer in stock | |
| 22 | PCEA-GD12U-03105 | Right indoor fan and casing | 1 | ||
| 23 | PCKK-GD12U-03200 | Right connecting plate assy. for Eva.Coil | 1 | ||
| 24 | TY-20502 | Capacitor of Compressor | 1 | 25uf | |
| 25 | PTAC-GD2U-06303 | Transformer | 1 | ||
| 26 | PCEA-GD12U-05201 | Main board | 1 | with wire assy. | |
| 27 | TY-20414 | Capacitor of Outdoor fan motor | 1 | ||
| 28 | PCEA-GD12U-05103 | Terminal block HP-T4002 | 1 | ||
| 29 | PCEA-GD12U-05106 | Relay | 1 | ||
| 30 | PCKK-GD12U-01301 | Right panel | 1.0 Galvanized steel sheet | 1 | |
| 31 | PCKK-GD12U-06502 | Electrical box of indoor fan motor | 0.8 Galvanized steel sheet | 1 | |
| 32 | PCKK-GD12U-06610 | Junction box welding assy. | 1 | ||
| 33 | PCKK-GD12U-06601 | Junction box cover | 0.8 Galvanized steel sheet | 1 | |
| 34 | PCKK-GD12U-06501 | Junction box fixed plate | 1.0 Galvanized steel sheet | 1 | |
| 35 | GD-815B1/2-0.3-5 | Terminal block HP-T3031 | 1 | ||
| 36 | PCKK-GD12U-06901 | Terminal block fixed seat | 1.0 Galvanized steel sheet | 1 | |
| 37 | PCKK-GD12U-06902 | Terminal block fixed cover | 1.0 Galvanized steel sheet | 1 | |
| 38 | PCKK-GD12U-03421 | Evaporator coil outlet pipe A | 1 | ||
| 39 | PCKK-GD12U-03422 | Evaporator coil outlet pipe B | 1 | ||
| 40 | LX-GD140-03211 | Evaporator coil inlet pipe | 2 | ||
| 41 | PCKK-GD09U/TY-04101 | Capillary | 2 | ||
| 42 | PCKK-GD12U/TY-04102 | Capillary connection pipe for Condensor | 1 | ||
| 43 | PTACH-GD12U/TY-05201 | Liquid discharging pipe of condensor | 1 | ||
| 44 | PCKK-GD12U/TY-04003 | Connection pipe for compressor suction pipe | 1 | ||
| 45 | PCKK-GD12U/TY-04001 | Suction pipe of compressor | 1 | 450 | |
| 46 | PCKK-GD09U/TY-04002 | Exhaust pipe of compressor | 1 | ||
| 47 | PA82G0C-3BZDU | Compressor | 1 | 25uf | |
| 48 | PCKK-GD12U-02004 | Condensor cover | 1.0 Galvanized steel sheet | 1 | |
| 49 | PCKK-GD12U-04201 | Back cover | 1.0 Galvanized steel sheet | 1 | |
| 50 | PCKK-GD12U-04202 | Small back cover | 1.0 Galvanized steel sheet | 1 | |
| 51 | PTACH-GD12U-05302 | Outdoor Condenser Fan Blade | 1 |  |
|
| 52 | PTACH-GD12U-05301 | Outdoor motor | 1 | ||
| 53 | PCKK-GD12U-02003 | Wind deflector of Condensor | 0.8 Galvanized steel sheet | 2 | |
| 54 | PCKK-GD9U-02100 | Condensor assy. | 1 | ||
| 55 | PCKK-GD12U-02001 | Outdoor motor fixed plate | 1.2 Galvanized steel sheet | 1 | |
| 56 | PCKK-GD12U-03501 | Evaporator coil cover. | 1.0 Galvanized steel sheet | 1 | |
| 57 | PCKK-GD12U/TY-01110 | Chassis assy. | 1 | ||
| 58 | PCKK-GD12U-02002 | Outdoor motor mounting plate | 0.8 Galvanized steel sheet | 1 | |
| 59 | PCKK-GD12U-01510 | Drain pan assy. | 1 | ||
| 60 | PCKK-GD12U-05001 | Electrical box cover | 0.8 Galvanized steel sheet | 1 | |
| 61 | PCKK-GD12U-05110 | Electrical box | 1 | ||
| 62 | Outpackage carton box | 1 | |||
| 63 | Inner shockproof packing | ||||
| 64 | Display board with wire 3.6m | 1 | |||
| 65 | POWER CORD 30384XXX 30amp /240VAC，with Length 1750mm | 1 | |||
| 66 | Wire soft pipe+Metal bend head | 1 | |||
| 67 | PCKK-GD12U-03600 | Filter net | 1 |
Miscellaneous Parts
| Part Number | Description | |
| PTACH-GD12U-05302 | Outdoor Condenser fan blade for PCEA, PCKK, PCDM, PCAA..K235, 9K, 12K, 15K | |
| PCEA-GD12U-03101 | Indoor Evaporator motor for PCEA/PCKK/PCAA...K235 series | |
| PCEA-GD12U-05707 | Harness to connect PCB board and external thermostat pad, PCEA, PCAA, PCKK & PCDM ...K235 series | |
| PCEA-GD12U-05203 | Indoor evaporator coil sensor and Indoor temperature sensor for PCEA,PCAA,PCKK,PCDM,PCWSHP.. HTM series | |
| PCDM-12U-05500 | Female wire assembly for power plug and PCB board - PCDM, PCEA, PCKK, PCAA... K235 series | |
| PCDM-GD9U-03200A | 9K Reversing valve and capillary assy PCEA, PCAA, PCDM, PCKK...K235 series *Capillary assy sold separately (PCDM-GD9U-03200)* | |
| PCKK-GD12U-02100A | 12K & 15K PCKK Outdoor Condenser coil | |
| PCDM-GD12U-03200A | 12K Reversing valve and capaillary assy PCEA, PCAA, PCDM, PCKK...K235 series *Capillary sold separately, SKU#PCDM-GD12U-03200* |
|
| PCDM-GD15U-03200A | 15K Reversing Valve assembly PCDM,PCEA,PCAA,PCKK...K235 series |
