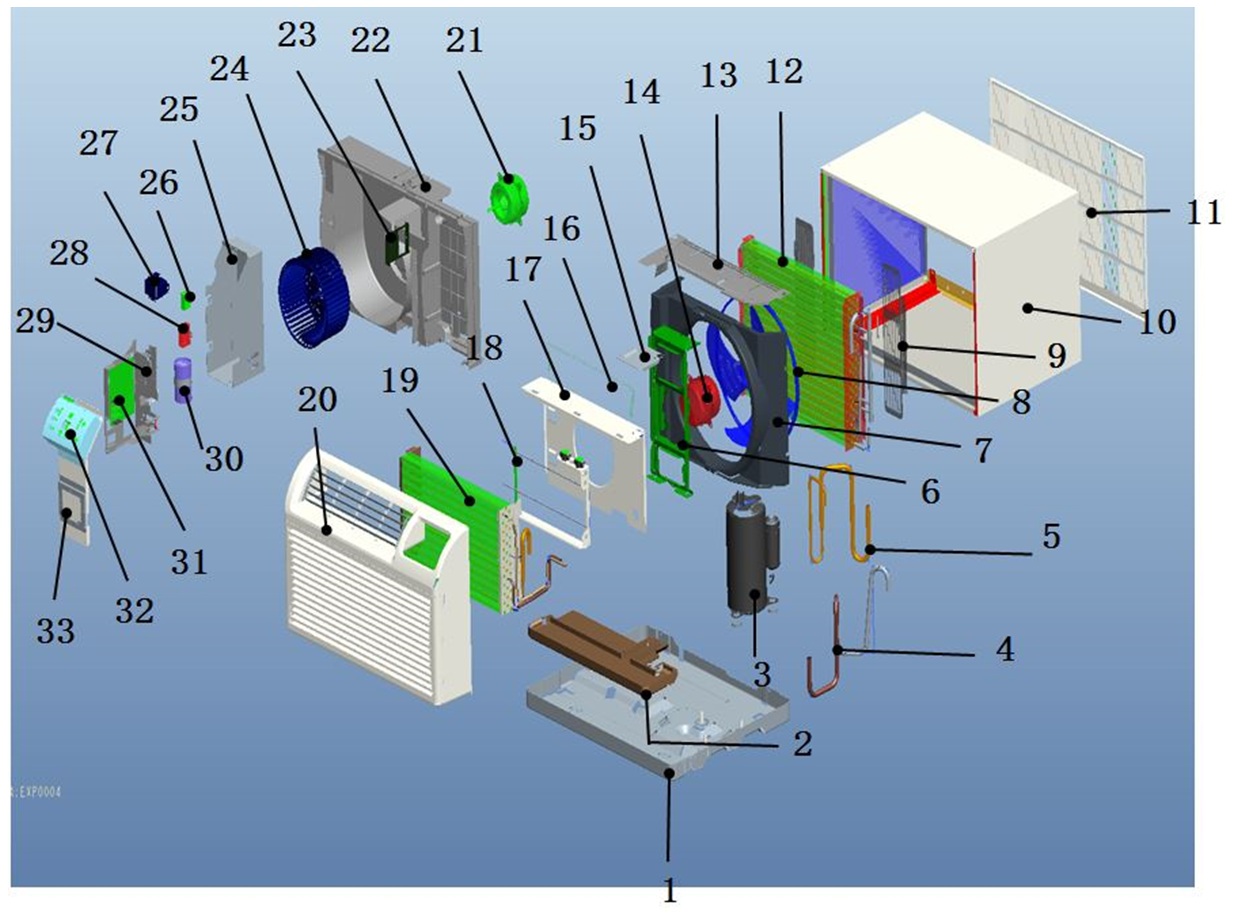

No. | Description | Part Number | Quantity | |
1 |
Pallet welding assembly |
1 |
801220590349 |
|
2 |
Foam water tray |
1 |
802220590005 |
|

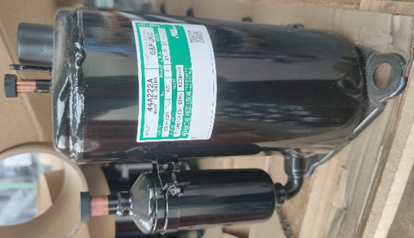

3 |
Compressor |
1 |
801401600023 |
|
4 |
Return pipe welding assembly |
1 |
801620590466 |
|
5 |
Exhaust pipe welding assembly |
1 |
801620590463 |
|
6 |
Outdoor motor bracket |
1 |
801220590339 |
|
7 |
Outdoor wind guide |
1 |
801120590009 |
|
8 |
Outdoor fan |
1 |
801100300025 |
|
9 |
Air guide plate |
2 |
801220890146 |
|
10 |
Wall cover components |
1 |
801220890482 |
|
11 |
Aluminum back mesh assy |
1 |
802920590004 |
|
12 |
Condenser pre-welded components |
1 |
801520890086 |
|
13 |
Wind guide cover |
1 |
801120590010 |
|

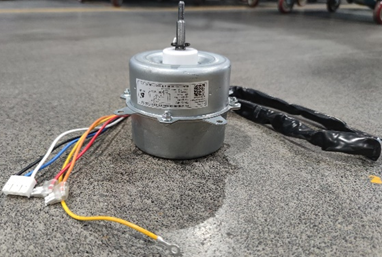

14 |
Outdoor motor |
1 |
802400400645 |
|
15 |
Outdoor air duct connection plate |
1 |
801220590340 |
|
16 |
Outlet protection network |
1 |
801220590343 |
|
17 |
Electric heating installation plate |
1 |
801220590344 |
|
18 |

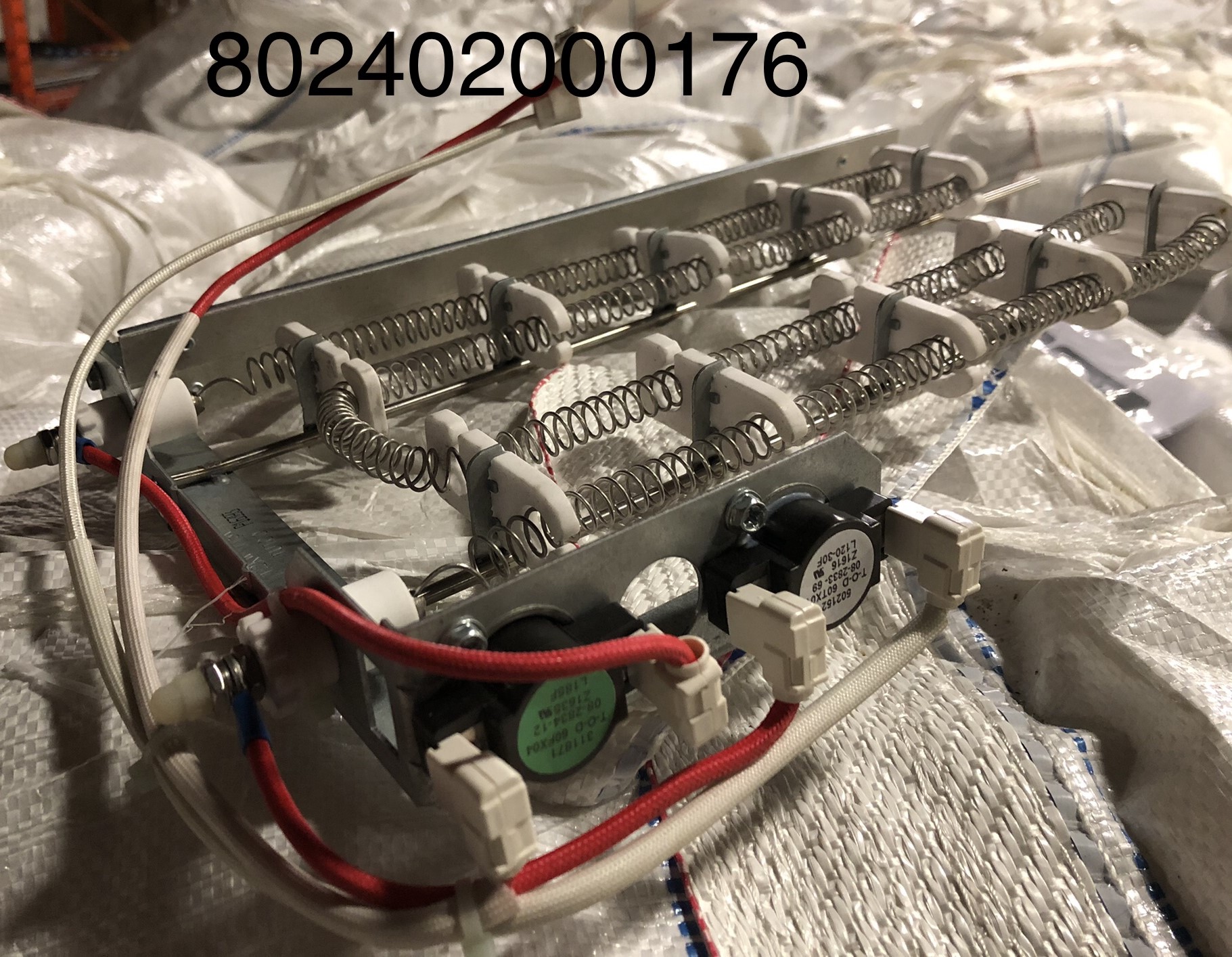

Electric heating |
1 |
802402000176 |
|
19 |
Evaporator pre-welded components |
1 |
801520590100 |
|

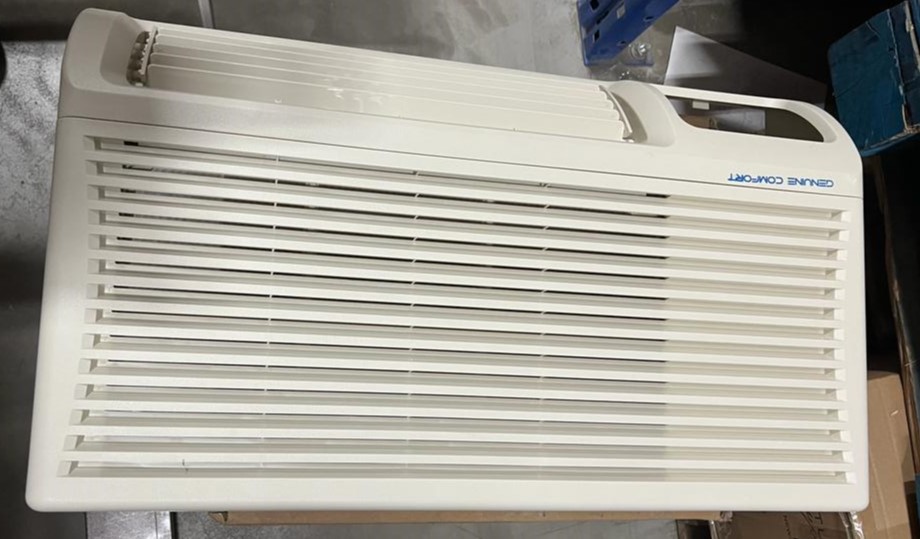

20 |
Panel components |
1 |
801120590029 |
|

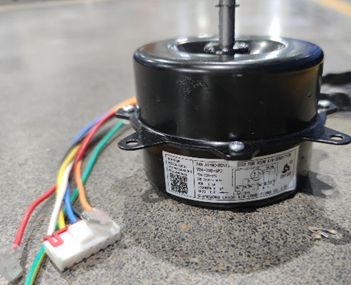

21 |
Indoor motors |
1 |
802400400646 |
|
22 |
Plastic partition board |
1 |
801120590011 |
|
23 |
New throttle |
1 |
801120590014 |
|
24 |
Indoor wind wheel |
1 |
801120590008 |
|
25 |
Electronic control box components |
1 |
801220590353 |
|
26 |
Capacitor indoor evaporator motor - 1.5μF/450VAC |
1 |
802419900166 |
|
27 |
Transformer |
1 |
802300200068 |
|
28 |
External motor capacitor - 3.5μF/450VAC |
1 |
802401100098 |
|
29 |
Electrical installation board |
1 |
801120590028 |
|

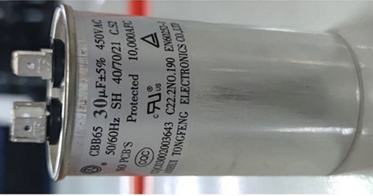

30 |
Capacitor Compressor - 30μF/450V/50/60Hz/φ50 |
1 |
802401000040 |
|
31 |
Electronic control board |
1 |
803300301004 |
|
32 |
Operation panel assembly |
1 |
803320590064 |
|
32.1 |
Operation panel fixing box |
1 |
801120590024 |
|
32.2 |

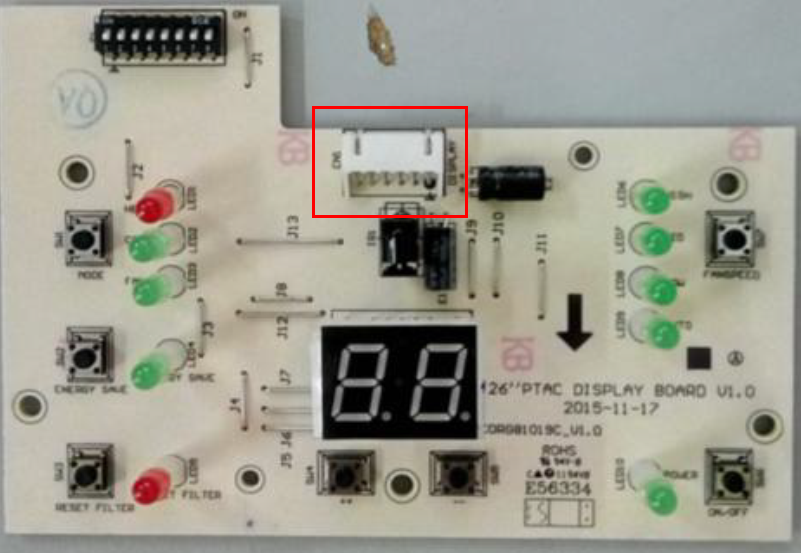

Display Board |
1 |
803300400024 |
|

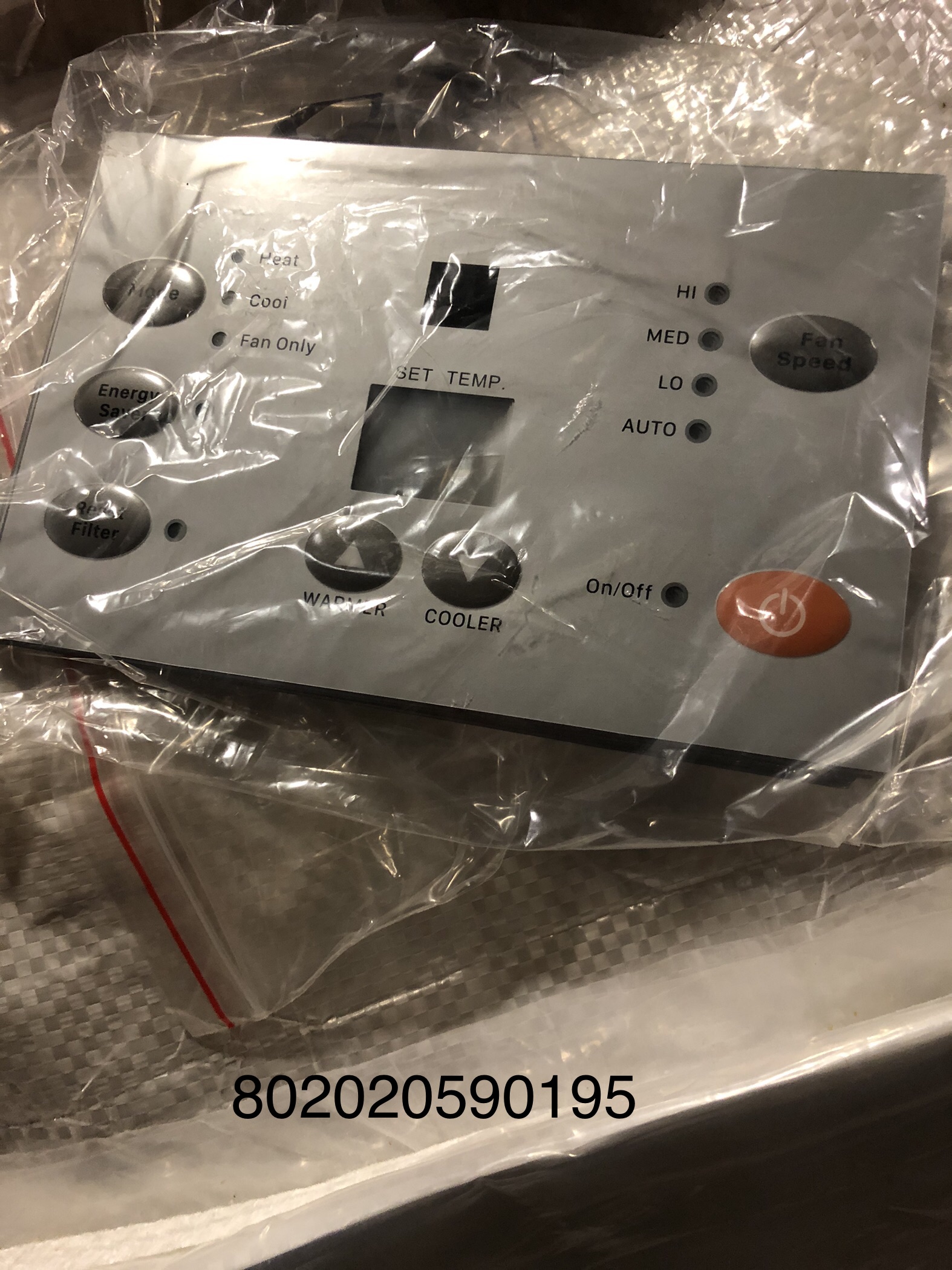

32.3 |
Control mask/ Touchpad membrane |
1 |
802020590195 |
|
33 |
Electric control box clamshell assembly |
1 |
801220590370 |
|
34 |
Capillary assembly |
1 |
801620590469 |
|
34.1 |
Filter |
1 |
801601000072 |
|
35 |
Wiring board |
1 |
802401700346 |
|
36 |
Capacitor clip |
1 |
801200100062 |
|
37 |
LCDI-power cord |
1 |
802420790007 |
|
38 |
Power line pressure line deduction |
2 |
801102000041 |
|
39 |
Temperature Sensor |
1 |
802300400129 |
|

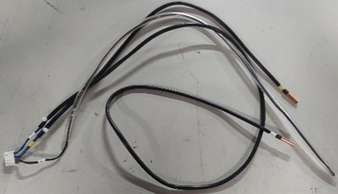

40 |
3 Temperature sensor group - harness |
1 |
802320890007 |
|
41 |
Compressor connection cable |
1 |
802401601311 |
|
42 |
Refrigerant |
0.56KG |
800500100004 |
|
Miscellaneous Parts
Part Number | Description | |

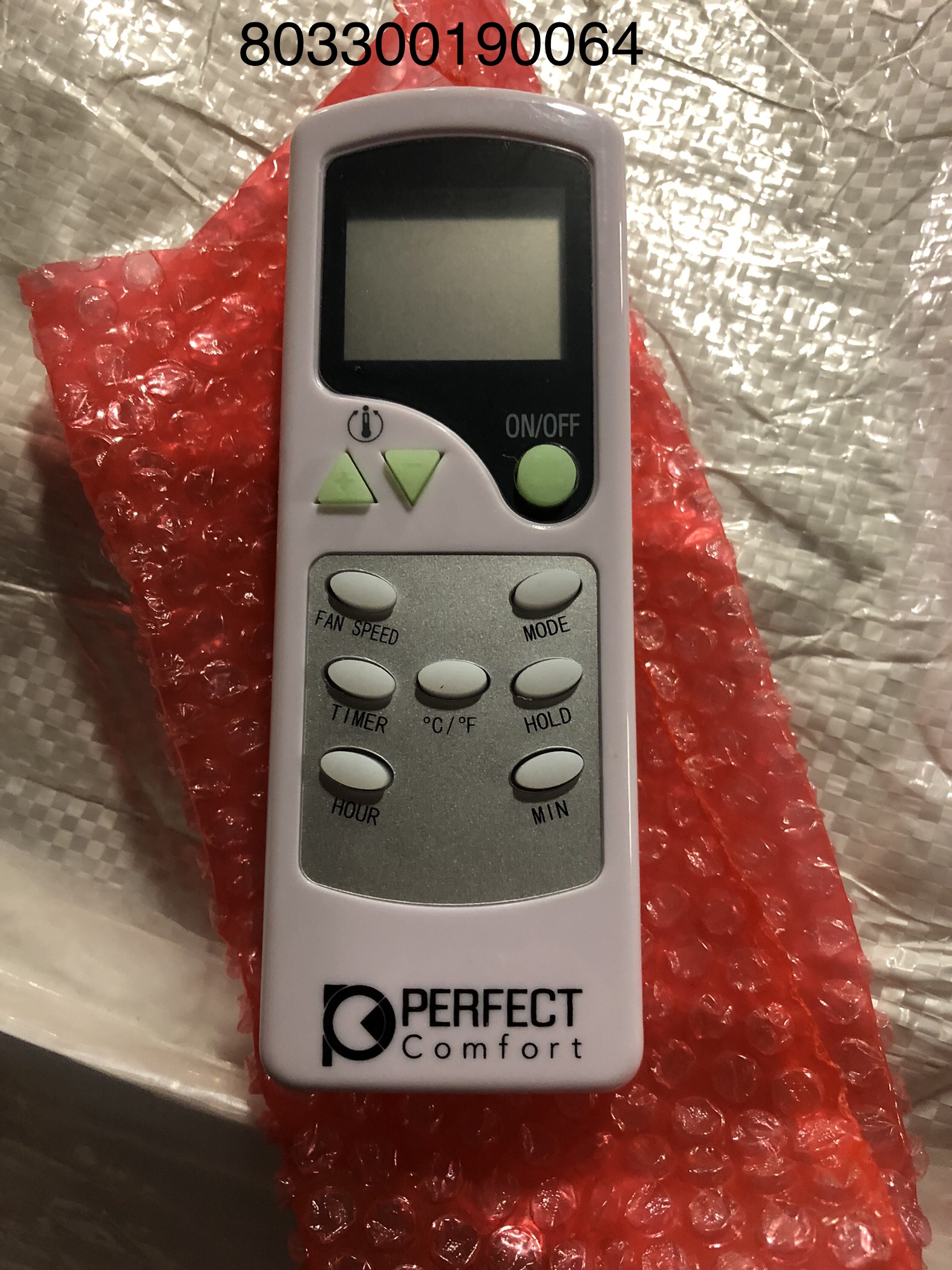

803300190064 | Hand Held Remote Controller | |

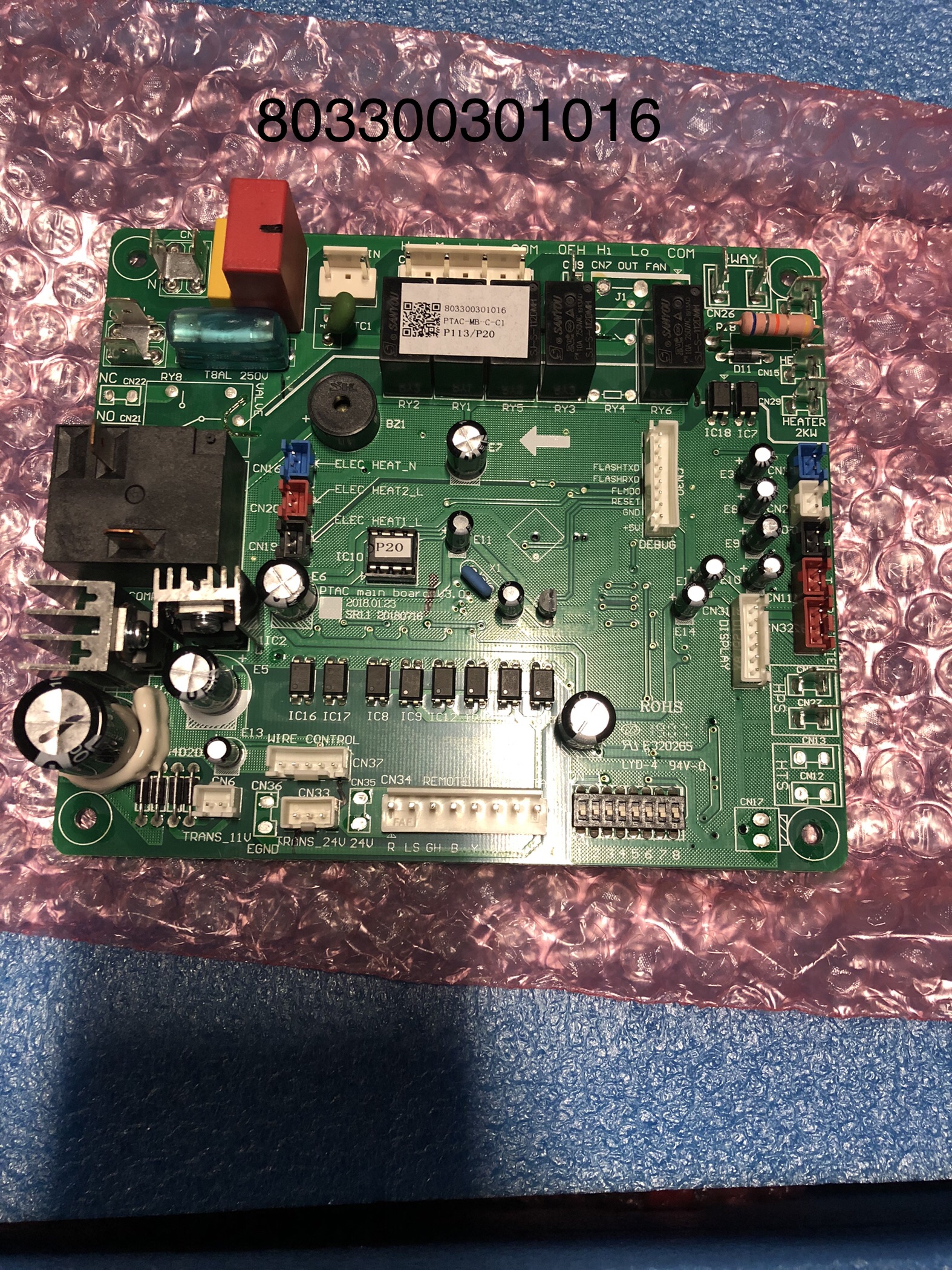

803300301016 | PCB Mainboard C Series - Only purchased before 2018 |
