| No. | Description | Part Number | Quantity | |
| 1 | Filter Sub-Assy | 1112103001 | 1 | |
| 2 | Guide Louver 1 | 1051290801 | 1 | |
| 3 | Guide Louver 2 | 1051290901 | 4 | |
| 4 | Linkage of Guide Louver | 1058290401 | 2 | |
| 5 | Guide Louver Support | 2421290601 | 3 | |
| 6 | Front Panel | 27230000186 | 1 | |
| 7 | Ratchet Wheel | 24232901 | 1 | |
| 8 | Front Panel Assy | 2000117701_L00561 | 1 | |
| 9 | Membrane | 63029900987 | 1 | |
| 10 | LCD Cover | 2012103301 | 1 | |

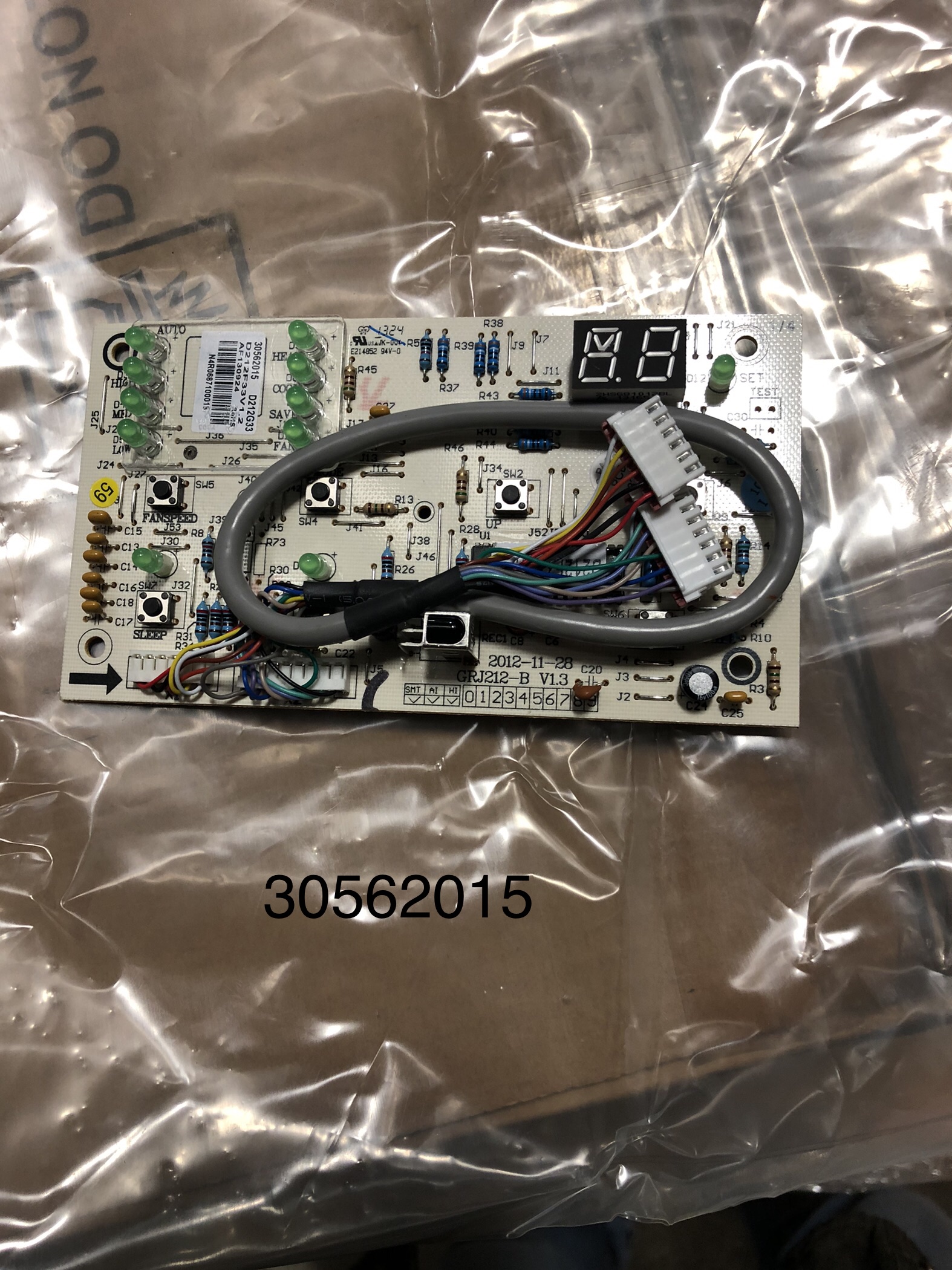

| 11 | Display Board | 30562015 | 1 | |
| 12 | Remote Cover Plate Sub-Assy | 20121087_L00561 | 1 | |
| 13 | Power Cord(LCDI) | 400203632 | 1 | |
| 14 | Electric Box Assy | 01401907 | 1 | |
| 15 | Capacitor CBB61 1.5uF 450V (500V) | 33010020 | 1 | |
| 16 | Capacitor CBB61 2.5uF 450V(500V) | 33010026 | 1 | |
| 17 | Capacitor CBB65 30uF/450V | 33000018 | 1 | |
| 18 | Terminal Board | 42011103 | 2 | |

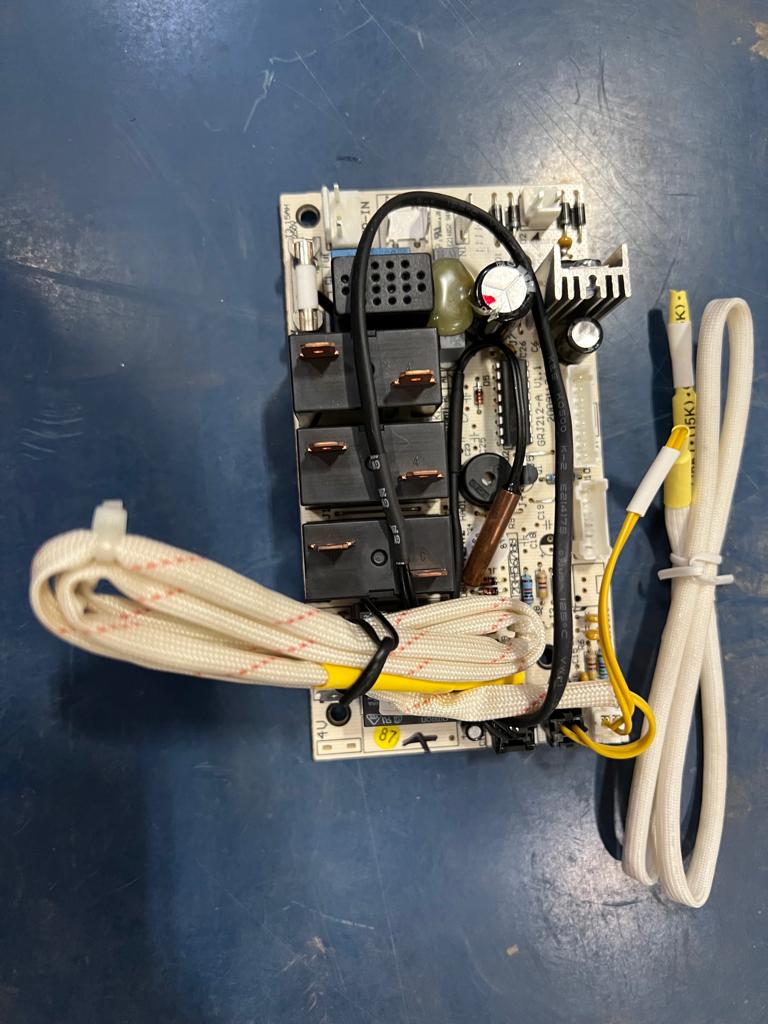

| 19 | Main Board | 30132023 | 1 | |
| 20 | Temperature Sensor | 390000591 | 1 | |
| 21 | Room Sensor | 39000191 | 1 | |
| 22 | Relay | 44020382 | 3 | |
| 23 | Relay | 44020331 | 3 | |
| 24 | Fuse T3.15AH 250V | 46010055 | 1 | |

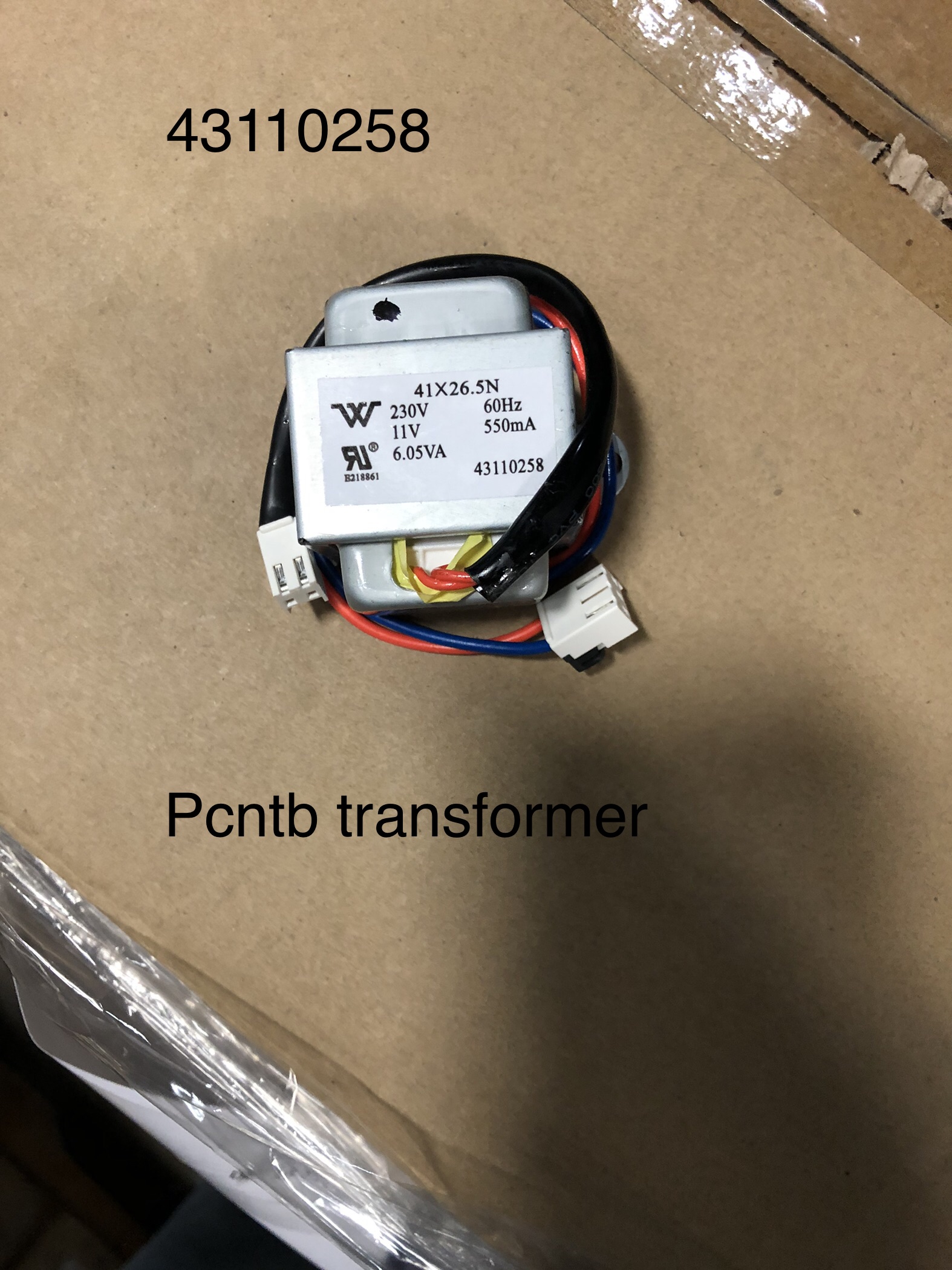

| 25 | Transformer 41X26.5N | 43110258 | 1 | |
| 26 | Ambient Temperature Sensor | 3900019813 | 1 | |
| 27 | Evaporator Assy | 01001070 | 1 | |

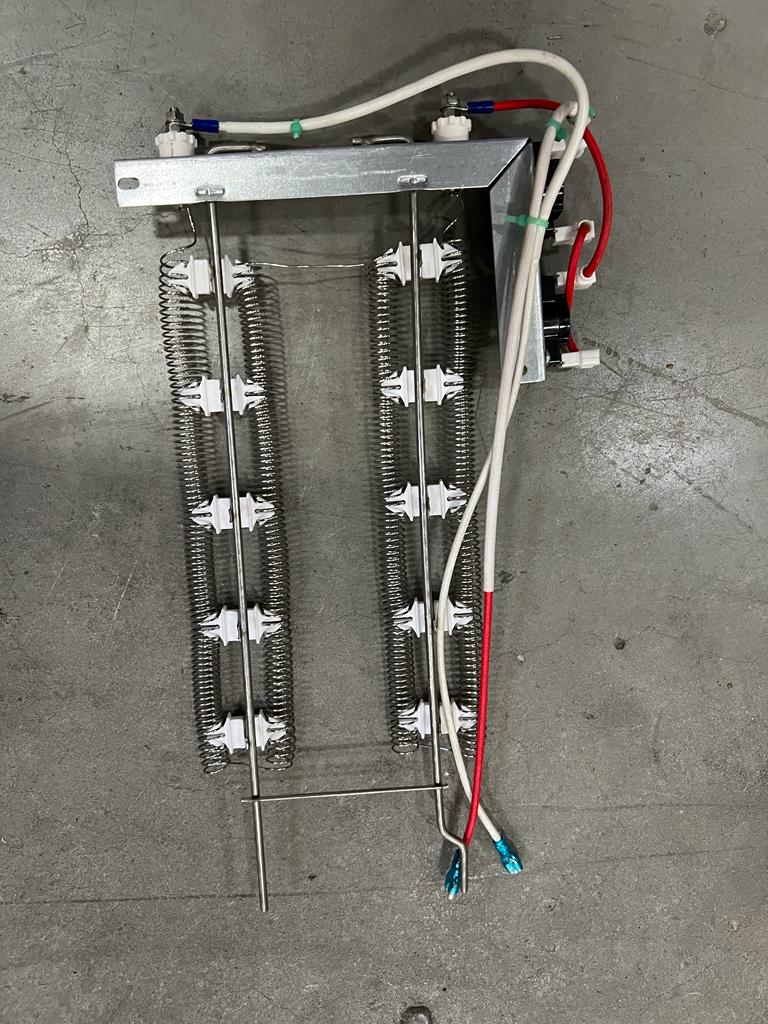

| 28 | Electric Heater Assy | 32001011 | 1 | |
| 29 | Front Clapboard | 01231021 | 1 | |
| 30 | Protective Grill | 01451001 | 1 | |
| 31 | Air Louver | 10512907 | 5 | |
| 32 | Swing Louver Clamp | 24211045 | 1 | |
| 33 | Water Tray | 12412901 | 1 | |
| 34 | Centrifugal Fan | 10312903 | 1 | |
| 35 | Snail Shell | 2220101901 | 1 | |
| 36 | Snail Shell | 22202906 | 1 | |
| 37 | Baffle Plate | 26112905 | 1 | |

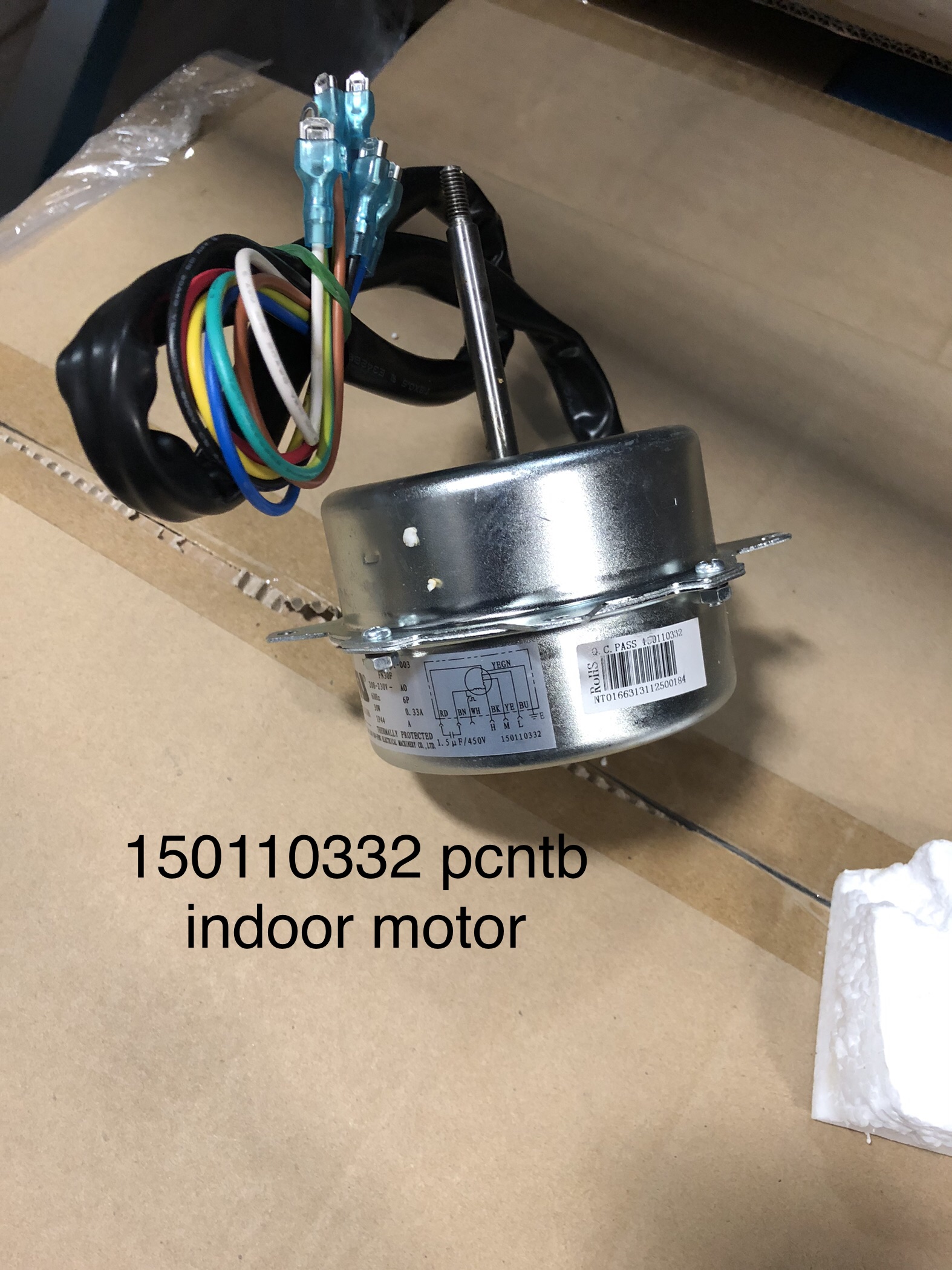

| 38 | Motor FN30F | 150110332 | 1 | |
| 39 | Connecting Plate | 01382902 | 1 | |
| 40 | Motor Support | 01702901 | 1 | |
| 41 | Fan Motor FW65G-1 | 15011048 | 1 |  |
| 42 | Diversion Circle | 10371005 | 1 | |
| 43 | Axial Flow Fan | 10331008 | 1 | |
| 44 | Cover Plate | 20121085 | 1 | |
| 45 | Condenser Assy | 01101333 | 1 | |
| 46 | Drainage Valve | 07101001 | 1 | |
| 47 | Chassis Sub-assy | 01201189P | 1 | |
| 48 | Compressor and fittings 44A282AK&FEKC | 00101087 | 1 | |
| 49 | Capillary Sub-Assy | 03001364 | 1 | |
| 50 | Discharge Tube Sub-assy | 03631930 | 1 | |
| 51 | Inhalation Tube Sub-assy | 03631931 | 1 | |
| 52 | Remote Controller | 30510070_L00561 | 1 |
Miscellaneous Parts
| Part Number | Description | |

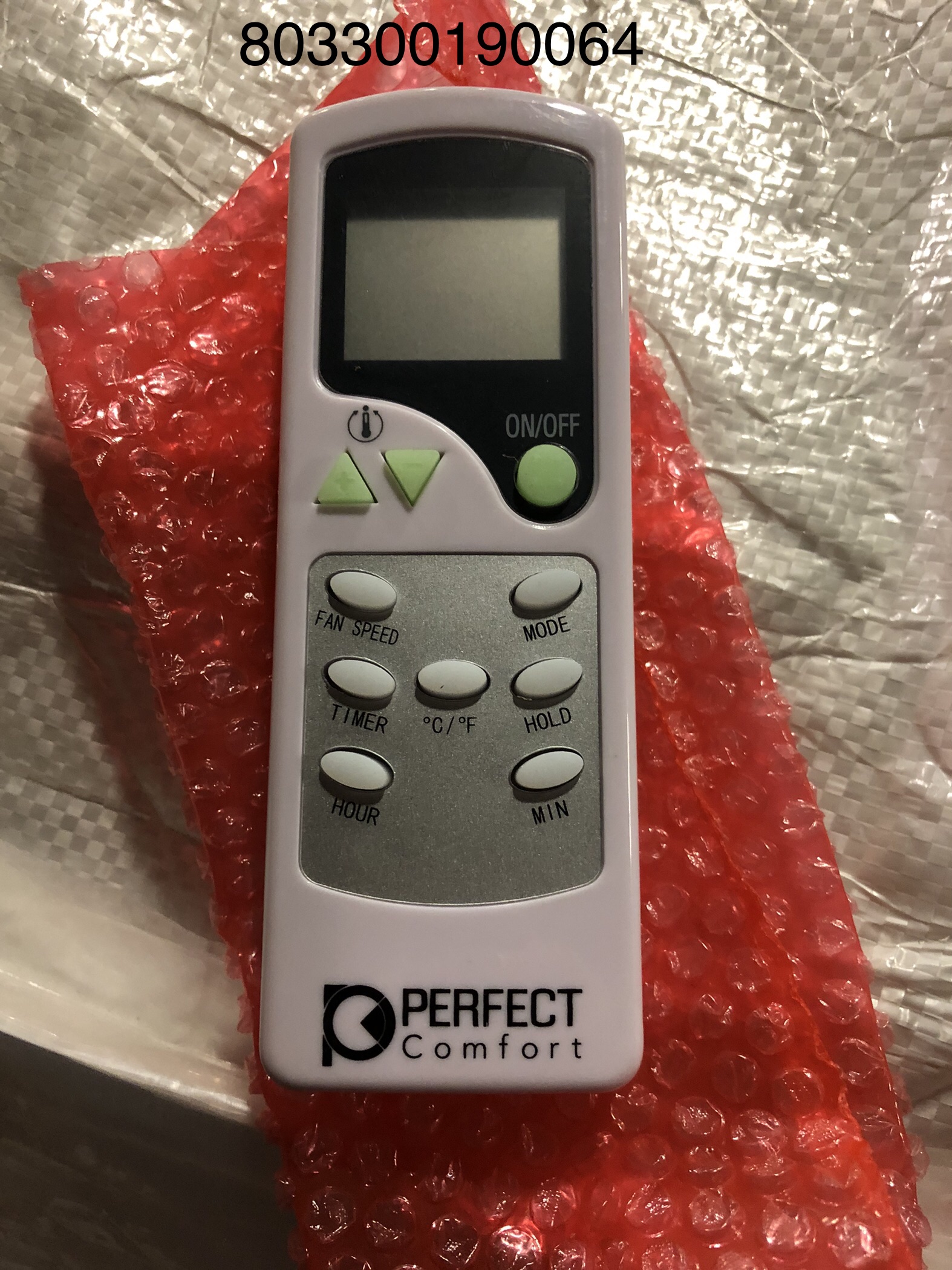

| 803300190064 | Hand Held Remote Controller | |

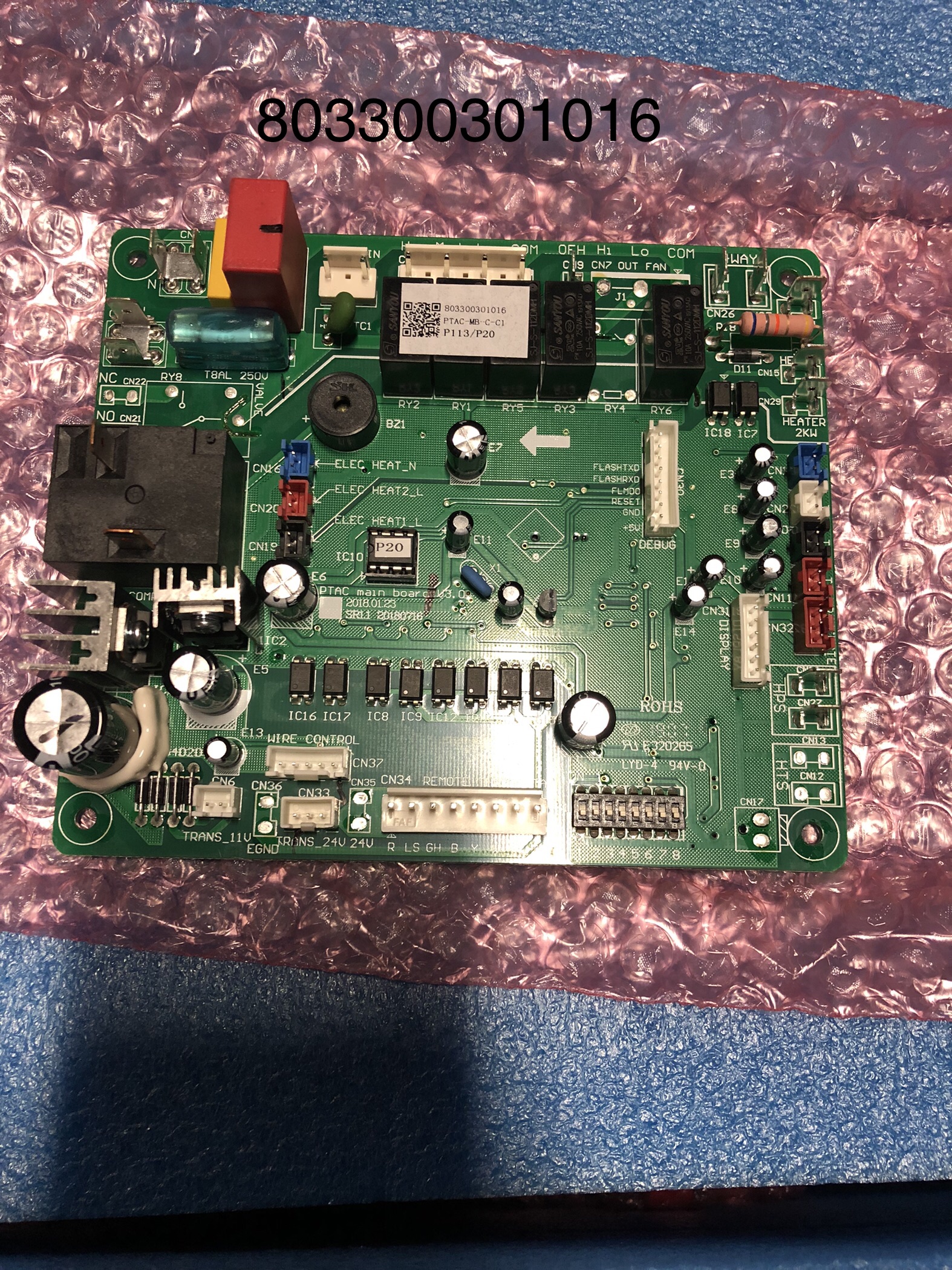

| 803300301016 | PCB Mainboard C Series - Only purchased before 2018 | |
