| PCNTW07K0C5T | PCNTW09K0C5T | PCNTW12K05CT | PCNTW15K0C5T | |||

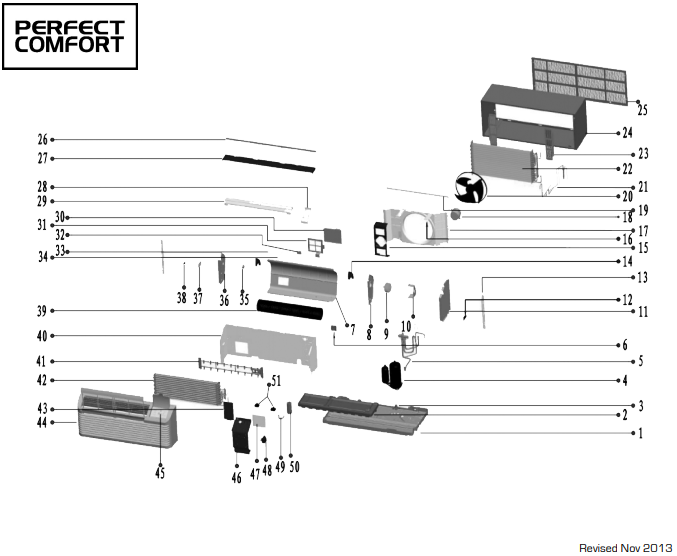

| No. | Name Item | Code Item | Code Item | Code Item | Code Item | |
| 1 | Pan components |
801220890180 | 801220890180 | 801220890180 | 801220890180 | |
| 2 | Foam Water Pan | 802220890006 | 802220890006 | 802220890006 | 802220890006 | |

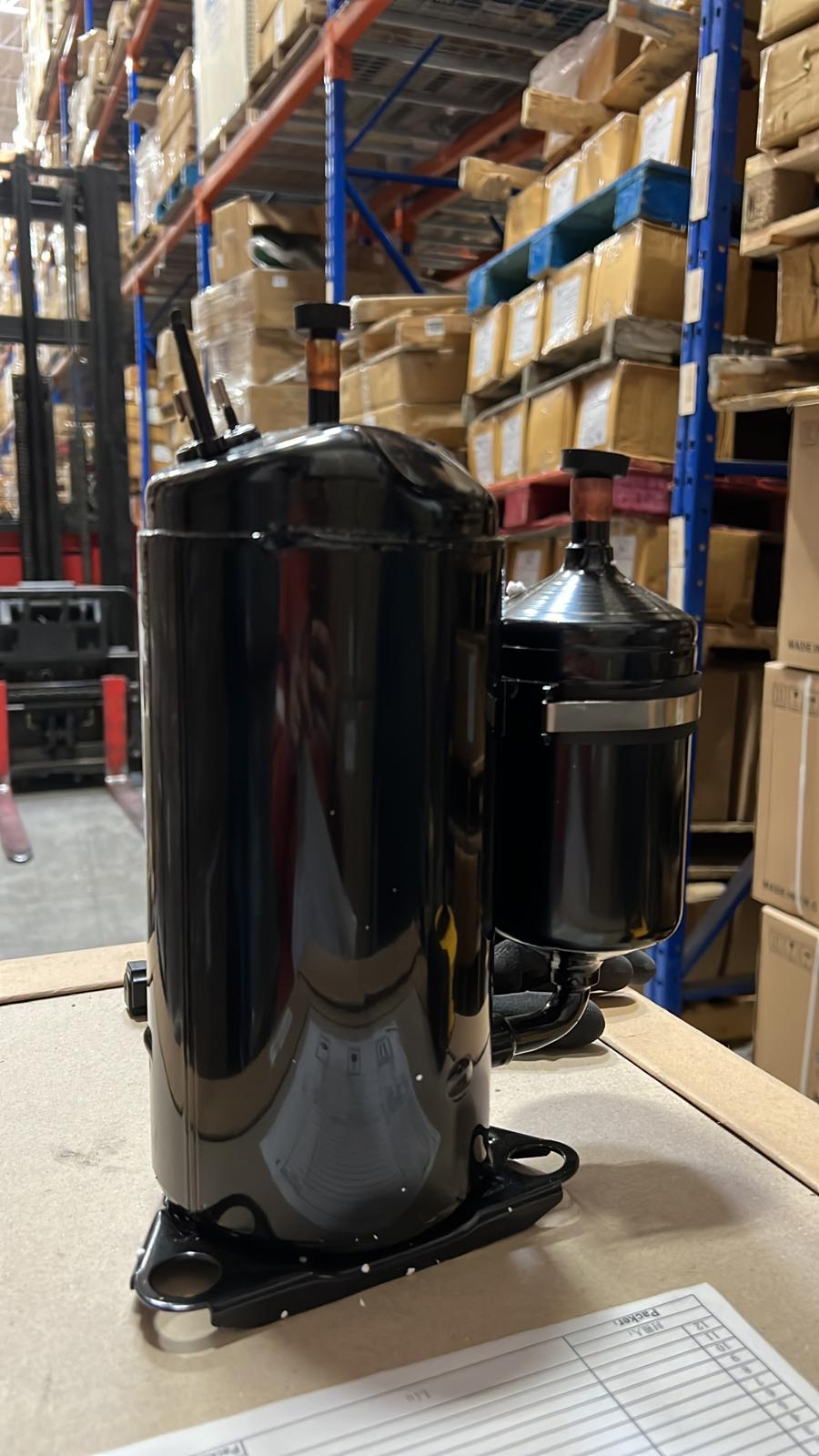

| 3 | Compressor | 801401600003 | 801401400081 | 801401400105 | 801401400105 | |
| 4 | Suction Pipe assembly | 801620390061 | 801620590215 | 801620890187 | 801621190068 | |
| 5 | Discharge Pipe assembly | 801620390059 | 801620890182 | 801620890182 | 801621190066 | |
| 6 | Line Press Plate | 801120890008 | 801120890008 | 801120890008 | 801120890008 | |
| 7 | Air duct | 801220890153 | 801220890153 | 801220890153 | 801220890153 | |
| 8 | Right side board assy of air duct |
801220890157 | 801220890157 | 801220890157 | 801220890157 | |

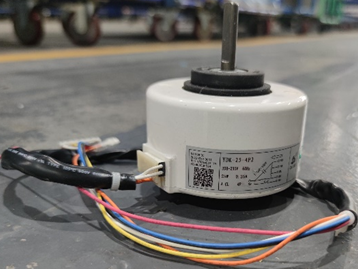

| 9 | Indoor evaporator motor | 802400300024 | 802400300024 | 802400300023 | 802400300023 |  |
| 10 | Indoor motor support |
801220890158 | 801220890158 | 801220890158 | 801220890158 | |
| 11 | E-box left side board assembly |
801220890159 | 801220890159 | 801220890159 | 801220890159 | |
| 12 | Groove clamp | 801102000019 | 801102000019 | 801102000019 | 801102000019 | |
| 13 | Left and right fixing clamp components |
801220890167/ 801220890170 |
801220890167/ 801220890170 |
801220890167/ 801220890170 |
801220890167/ 801220890170 |
|
| 14 | Left and right parts of air duct |
801120890013/ 801120890014 |
801120890013/ 801120890014 |
801120890013/ 801120890014 |
801120890013/ 801120890014 |
|
| 15 | Outdoor motor support |
801220890144 | 801220890144 | 801220890144 | 801220890144 | |
| 16 | Connection plate |
801220890166 | 801220890166 | 801220890166 | 801220890166 | |
| 17 | Wind inlet guide | 801220890190 | 801220890190 | 801220890190 | 801220890190 | |
| 18 | Outdoor single-axle motor |
802400400487 | 802400400487 | 802400400487 | 802400400487 | |
| 19 | Wind inlet guide plate |
801220890190 | 801220890190 | 801220890190 | 801220890190 | |

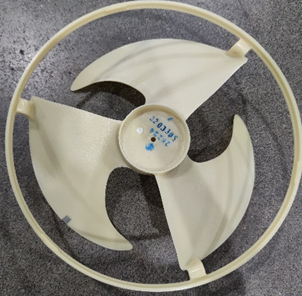

| 20 | Condenser axial flow fan blade | 801120890009 | 801120890009 | 801120890009 | 801120890009 |  |
| 21 | Pre-welding assembly of capillary | 801620390063 | 801620590216 | 801620890189 | 801620890189 | |
| 22 | Condenser | 801520890038 | 801520890038 | 801520890038 | 801520890038 | |
| 23 | Condenser Baffles |
801220890146 | 801220890146 | 801220890146 | 801220890146 | |
| 24 | Wall sleeve | 801220890203 | 801220890203 | 801220890203 | 801220890203 | |
| 25 | Exterior Grille |
801220690038 | 801220690038 | 801220690038 | 801220690038 | |
| 26 | Panel board support |
801220890164 | 801220890164 | 801220890164 | 801220890164 | |
| 27 | Top cover | 801220890179 | 801220890179 | 801220890179 | 801220890179 | |
| 28 | Seal board 2 | 801220890177 | 801220890177 | 801220890177 | 801220890177 | |
| 29 | Air outlet | 801220890172 | 801220890172 | 801220890172 | 801220890172 | |
| 30 | Fresh air inlet cover |
801220890150 | 801220890150 | 801220890150 | 801220890150 | |
| 31 | Fresh air inlet filter |
801120890010 | 801120890010 | 801120890010 | 801120890010 | |
| 32 | Fresh air inlet support |
801220890151 | 801220890151 | 801220890151 | 801220890151 | |
| 33 | Fresh air inlet groove clamp |
801120890017 | 801120890017 | 801120890017 | 801120890017 | |
| 34 | Fresh air inlet spring and tube |
802920890004/ 801120890028 |
802920890004/ 801120890028 |
802920890004/ 801120890028 |
802920890004/ 801120890028 |
|
| 35 | Fixing board of bearing holder |
802720890002/ 801220890156 |
802720890002/ 801220890156 |
802720890002/ 801220890156 |
802720890002/ 801220890156 |
 |
| 36 | Left side board assy of air duct |
801220890155 | 801220890155 | 801220890155 | 801220890155 | |
| 37 | Fresh air inlet rail |
801120890012 | 801120890012 | 801120890012 | 801120890012 |  |
| 38 | Fresh air inlet lever |
801120890011 | 801120890011 | 801120890011 | 801120890011 | |

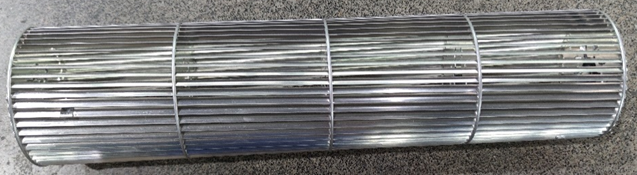

| 39 | Cross-flow fan/ Indoor blower wheel | 802920890005 | 802920890005 | 802920890005 | 802920890005 |  |
| 40 | Septum plate assembly |
801220890148 | 801220890148 | 801220890148 | 801220890148 | |
| 41 | Evaporator | 801520590052 | 801520590052 | 801520890039 | 801520890039 | |
| 42 | Seal board 1 | 801220890175 | 801220890175 | 801220890175 | 801220890175 | |
| 43 | Panel components |
801120890020 | 801120890020 | 801120890020 | 801120890020 |  |
| 43.1 | Front panel | 801120890021 | 801120890021 | 801120890021 | 801120890021 | |
| 43.2 | Fixing panel clamp |
801220890192 | 801220890192 | 801220890192 | 801220890192 | |

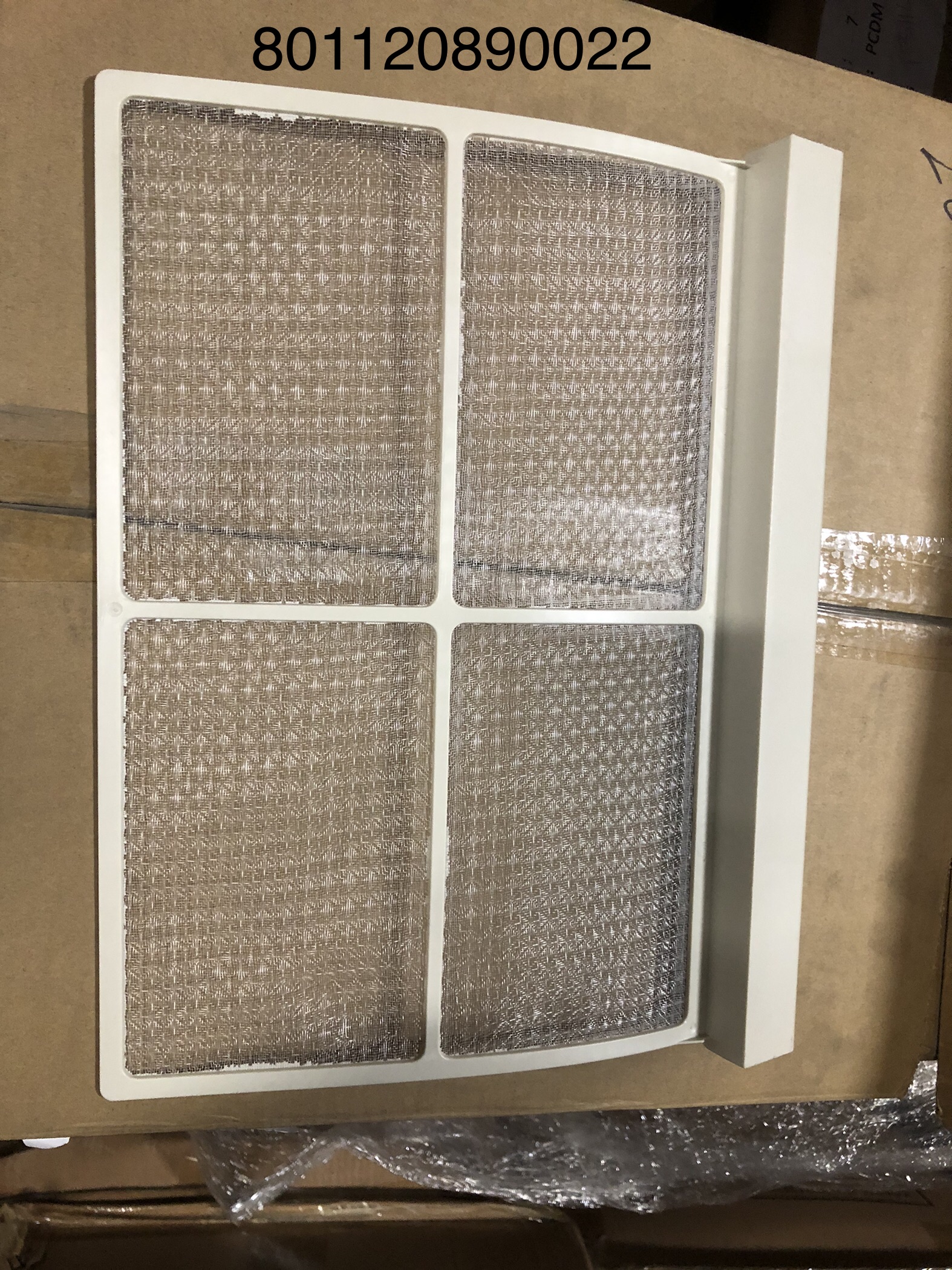

| 43.3 | Filter net | 801120890022 | 801120890022 | 801120890022 | 801120890022 |  |
| 43.4 | Filter net rail | 801120890023 | 801120890023 | 801120890023 | 801120890023 | |

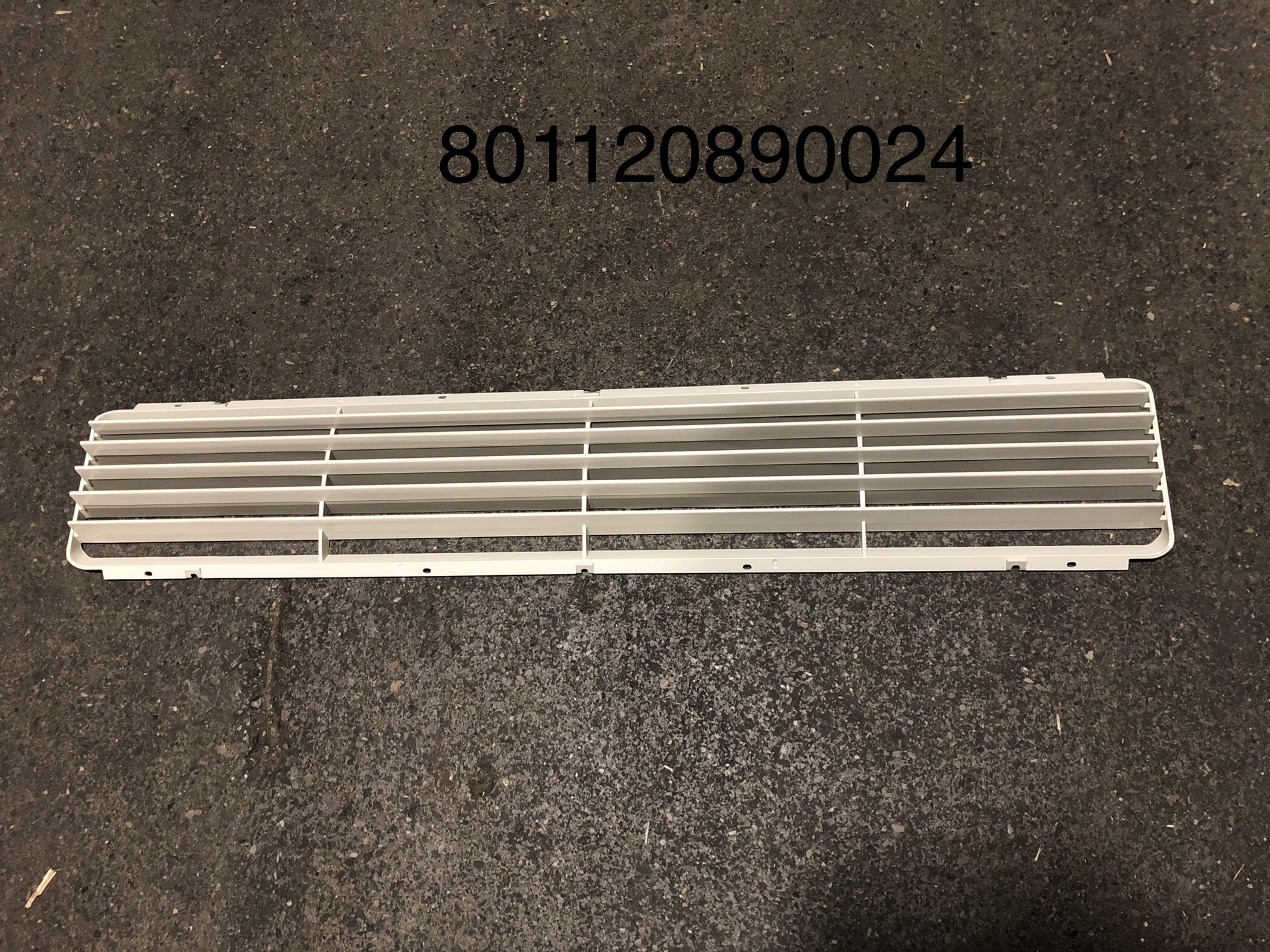

| 43.5 | Air outlet grill | 801120890024 | 801120890024 | 801120890024 | 801120890024 |  |
| 43.6 | Panel cover | 801120890025 | 801120890025 | 801120890025 | 801120890025 |  |
| 44 | Control board assembly |
803320890024 | 803320890024 | 803320890024 | 803320890024 | |

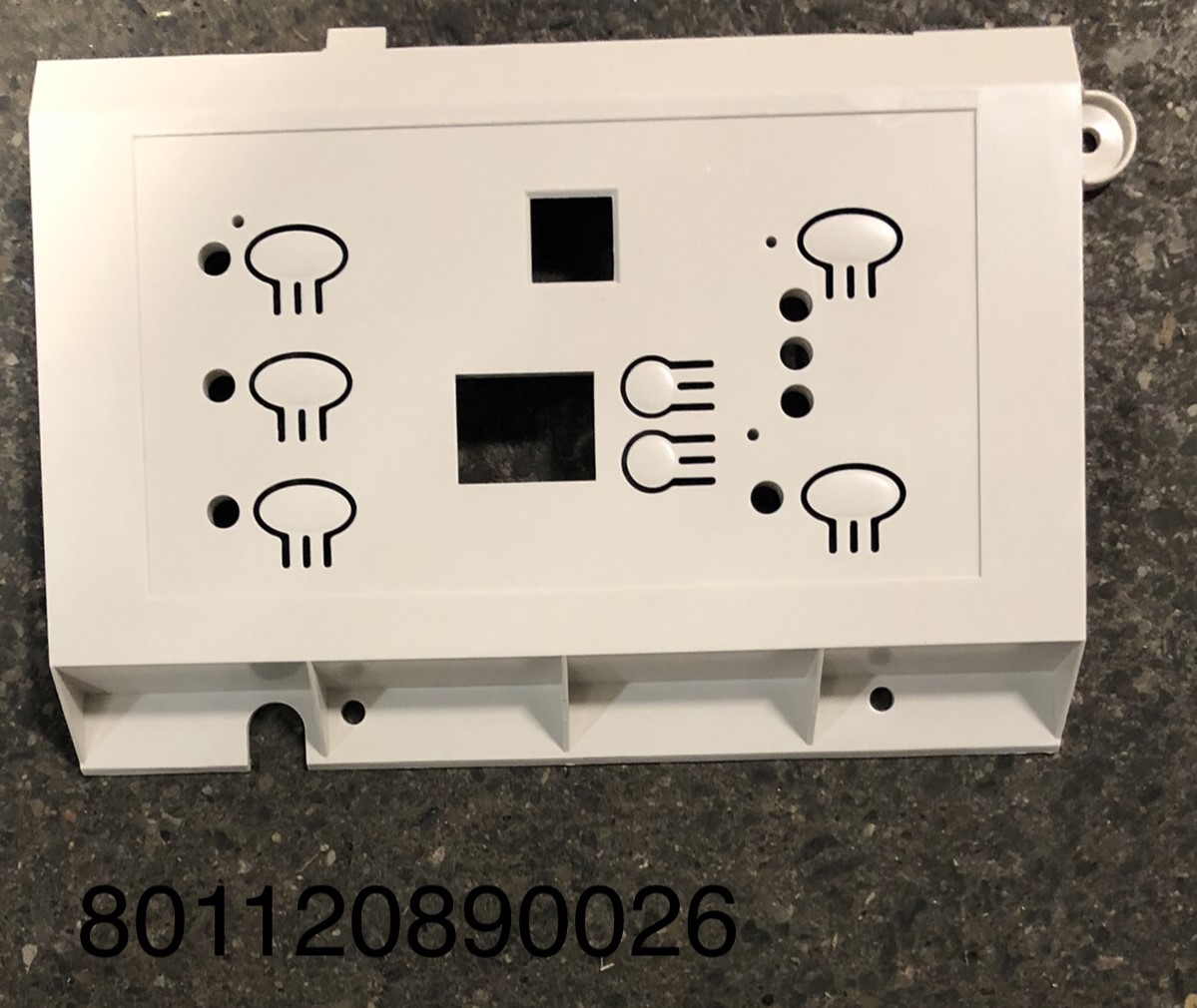

| 44.1 | Plastic display without board & sticker | 801120890026 | 801120890026 | 801120890026 | 801120890026 |  |

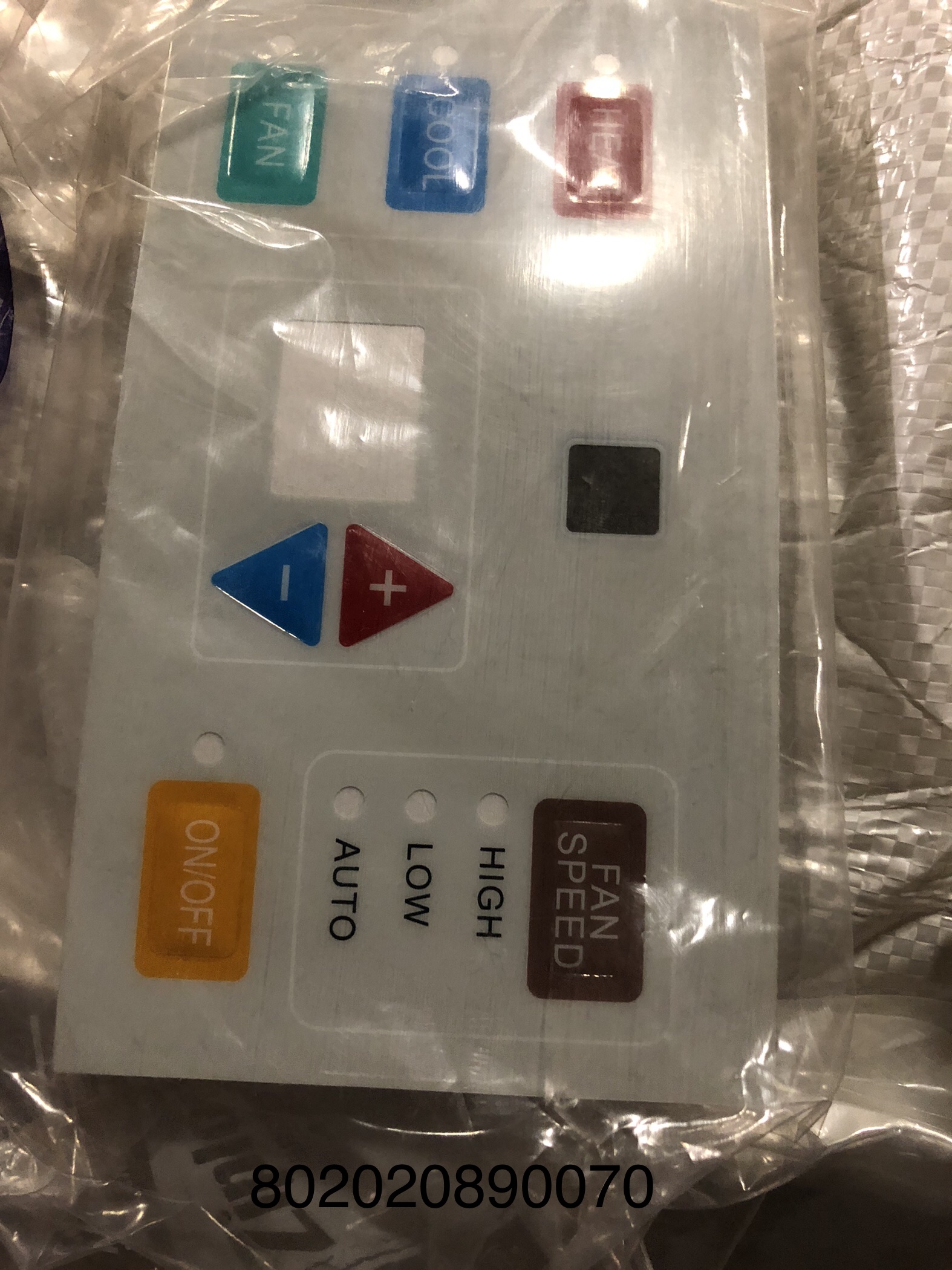

| 44.2 | Control mask/ Touchpad membrane | 802020890071 | 802020890070 | 802020890071 | 802020890071 | |

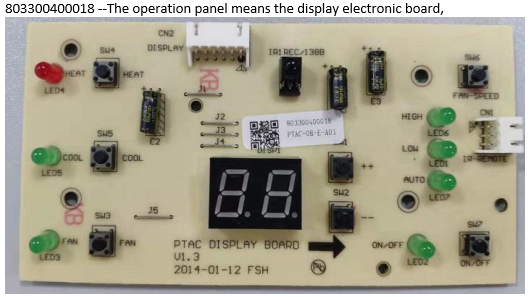

| 44.3 | Display Board | 803300400018 | 803300400018 | 803300400018 | 803300400018 |  |
| 45 | Electrical box flip | 801220890162 | 801220890162 | 801220890162 | 801220890162 | |
| 46 | PCB | 80330030892 | 80330030892 | 80330030892 | 80330030892 | |
| 47 | Transformer | 802300200068 | 802300200068 | 802300200068 | 802300200068 |  |
| 48 | Capacitor clamp | 801200100006 | 801200100005 | 801200100002 | 801200100002 | |

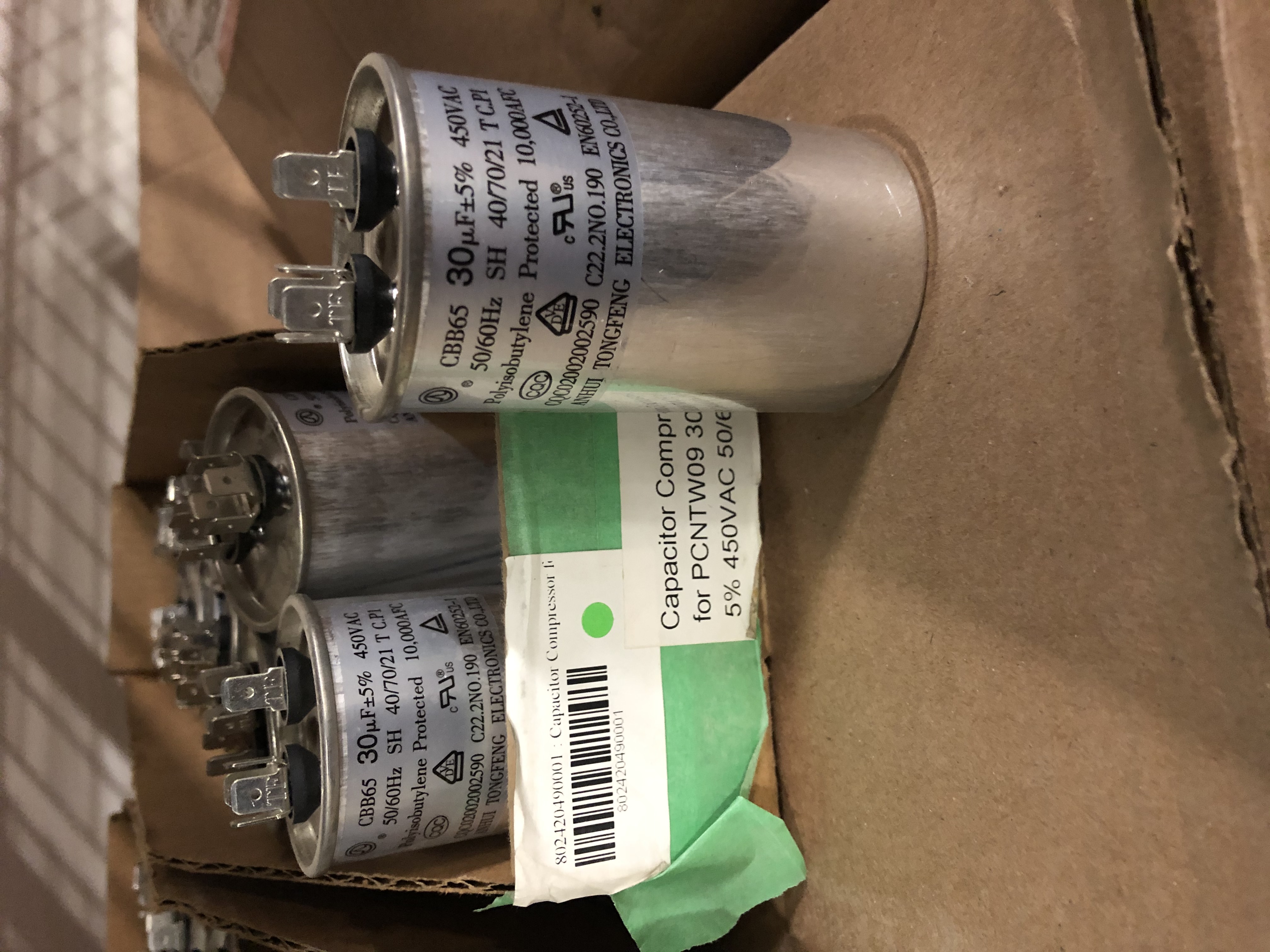

| 49 | Capacitor Compressor | 802401000023 | 802420490001 | 802420490006 | 802420490009 | |
| 50 | Indoor motor capacitor/ Outdoor motor capacitor |
802419900166/ 802401100039 |
802419900166/ 802401100039 |
802419900166/ 802401100039 |
802419900166/ 802401100039 |
 |
| 51 | Air outlet protection grid |
802920890003 | 802920890003 | 802920890003 | 802920890003 | |
| 52 | Indoor temperature sensor (T3) |
802300400077 | 802300400077 | 802300400077 | 802300400077 |  |
| 53 | Outdoor temperature sensor |
802300400129 | 802300400129 | 802300400129 | 802300400129 | |
| 54 | Air return temp. sensor |
802300400128 | 802300400128 | 802300400128 | 802300400128 |  |
| 55 | LCDI Power cord |
802420790001 | 802420790001 | 802420790001 | 802420790001 | |
| 56 | Compressor connecting wire |
802421290011 | 802421290011 | 802421290011 | 802421290011 | |
Miscellaneous Parts
| Part Number | Description | |

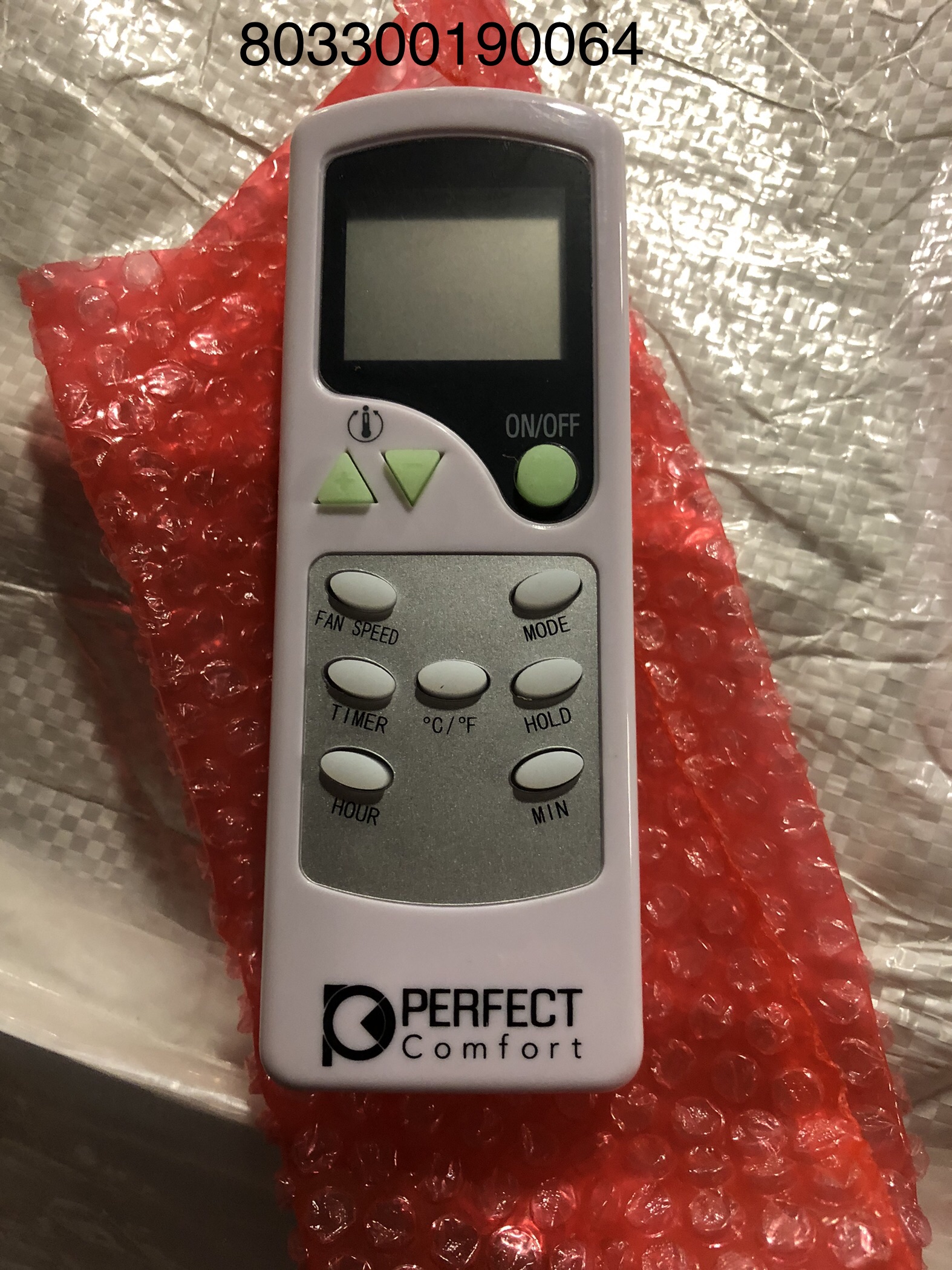

| 803300190064 | Hand Held Remote Controller | |
| 803300301016 | PCB Mainboard C Series - Only purchased before 2018 | |
