This video explains how to connect and control applicable Genuine Comfort GC42E units using a wireless thermostat and receiver.
Applicable Models
These instructions apply ONLY to the following model configurations:
- GC42E-07K_-3
- GC42E-09K_-3
- GC42E-12K_-3
- GC42E-15K_-3
Do not use these instructions for other Genuine Comfort models. Confirm your model number on the unit's rating plate before proceeding.
Disconnect Power Before Changing DIP Switches or Wiring
The unit must be powered OFF and unplugged from the wall receptacle before making any changes to the DIP switches or thermostat wiring.
Do not change DIP-switch positions or connect/disconnect thermostat wiring while the unit is connected to power.
DIP Switch Configuration

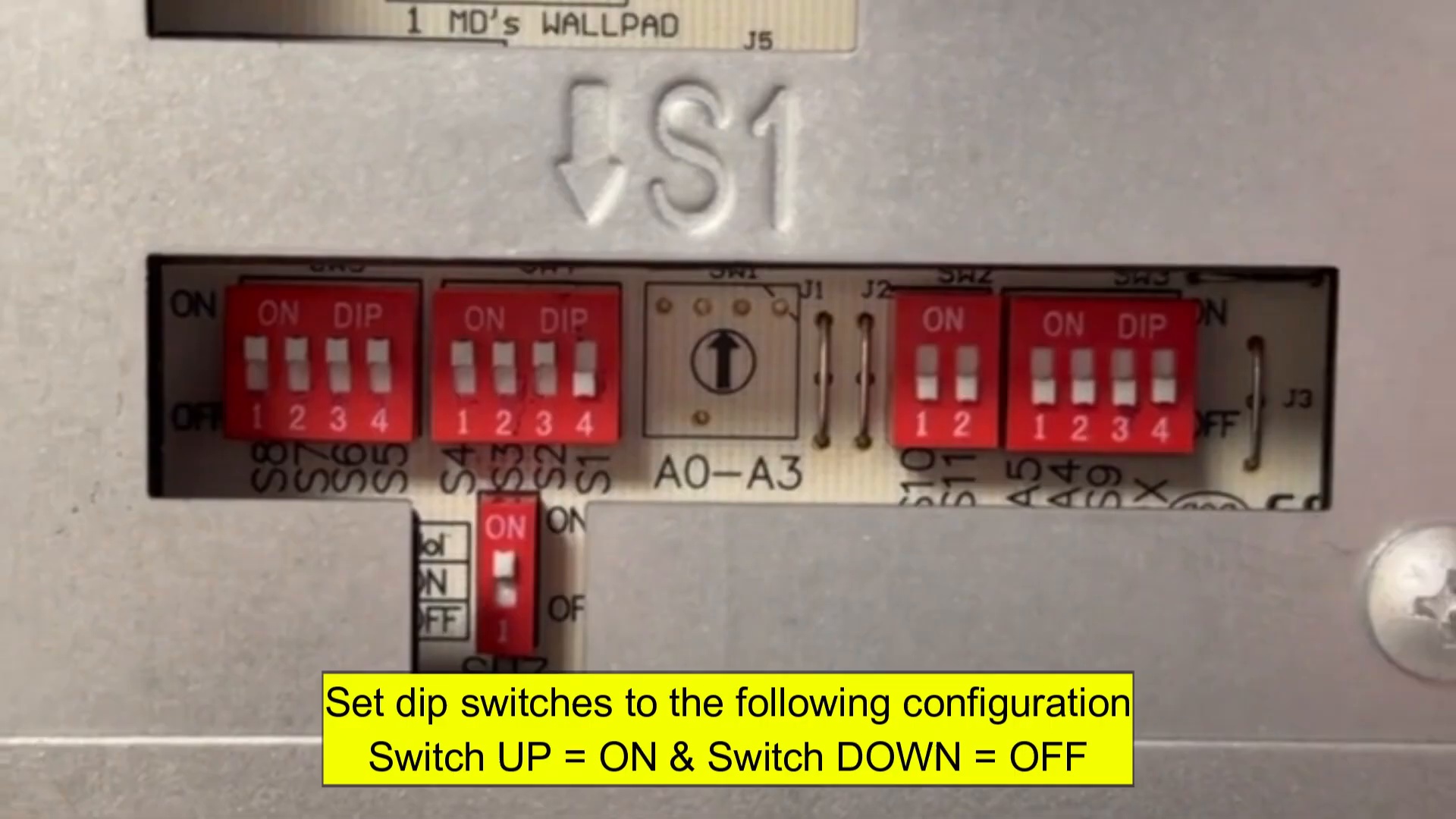

Before connecting the wireless thermostat, set the DIP switches to the positions shown in the image above.
- UP = ON
- DOWN = OFF
Make sure each DIP switch is fully moved into the required position before proceeding.
Wireless Thermostat Wiring

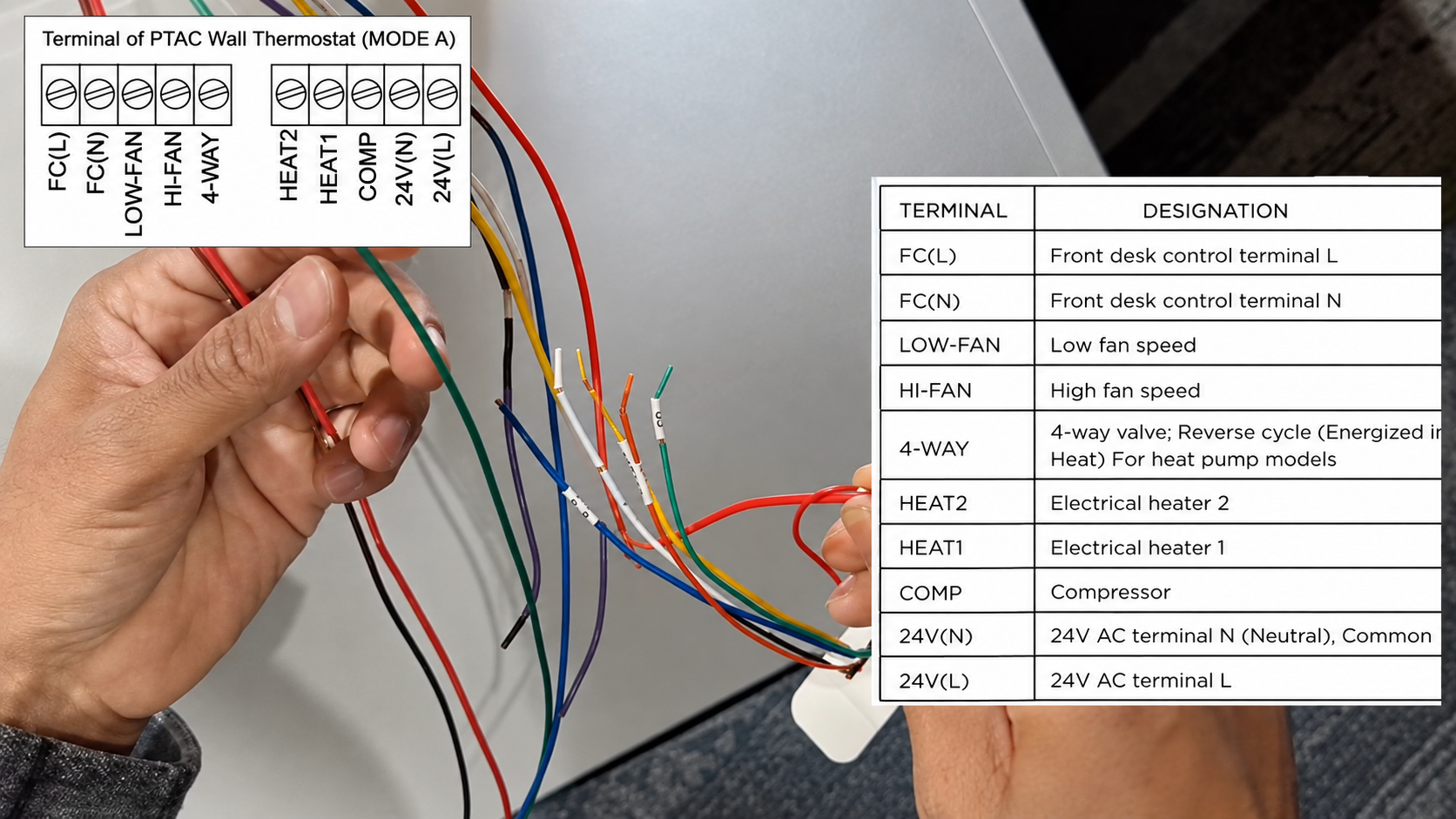

Use the wiring diagram above to identify the appropriate thermostat wires from the unit. Match the required wires to the corresponding connections for the wireless thermostat receiver.
Important: Keep the unit unplugged while making any wiring connections.
Video Instructions
The video provides the complete demonstration, including the DIP-switch configuration, wiring connections, receiver installation and wireless thermostat setup.
Follow the instructions in the video to:
- Configure the required DIP switches
- Identify the appropriate wires from the unit's wiring harness
- Connect the wireless thermostat receiver
- Complete the thermostat setup and test operation
If the unit does not respond correctly after following the video, Submit a Request to Genuine Comfort Support.
