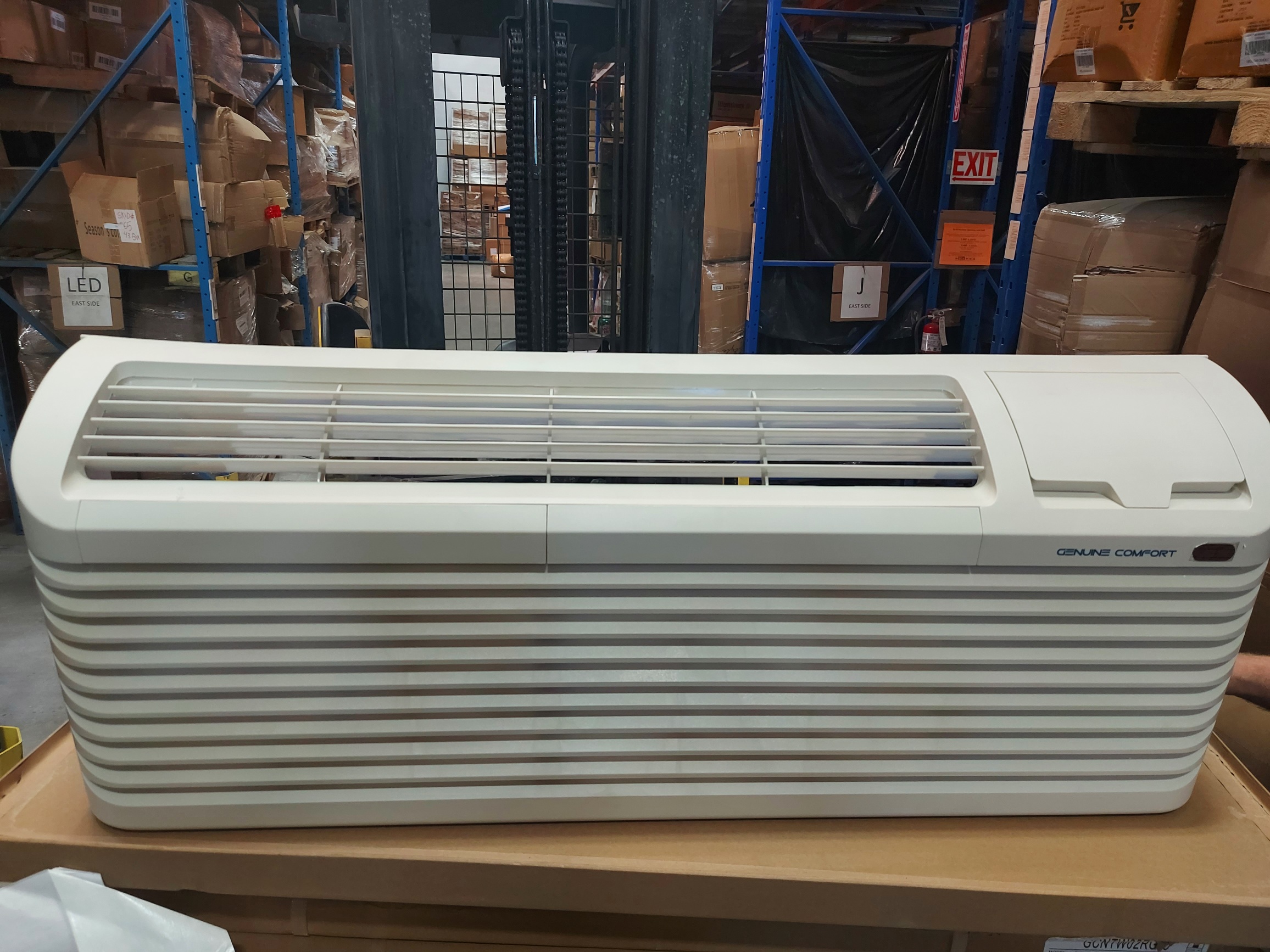

Model No. PCNTW07K3H5T, PCNTW09K3H5T, PCNTW12K3H5T, PCNTW15K3H5T
PCNTW07K3H5T | PCNTW09K3H5T | PCNTW12K3H5T | PCNTW15K3H5T | ||

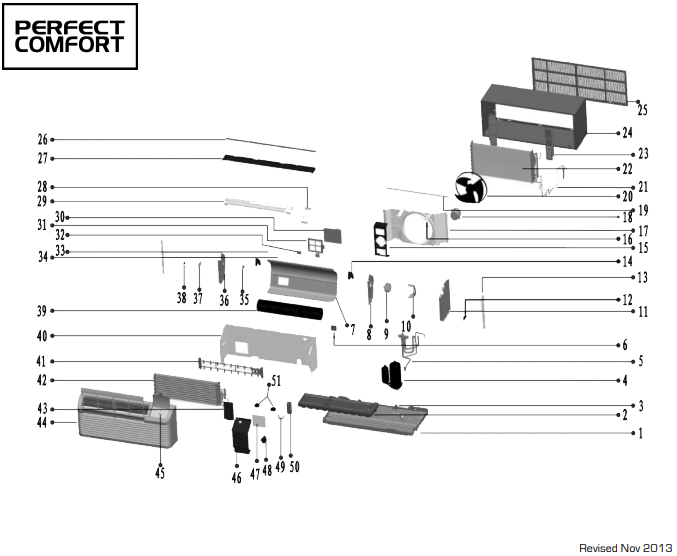

No. Part | Name Item | Code Item | Code Item | Code Item | Code Item |
1 | Pan components |
801220890133 | 801220890133 | 801220890133 | 801221190075 |
2 | Drain valve | 801619900533 | 801619900533 | 801619900533 | 801619900533 |
3 | Foam water pan | 802220890006 | 802220890006 | 802220890006 | 802220890006 |
4 | Compressor | 801401600007 | 801401600006 | 801401600005 | 801401600004 |
5 | Four-way valve welding components |
801620390093 | 801620590223 | 801620890196 | 801621190076 |
5.1 | Four-way valve | 801600100034 | 801600100034 | 801600100034 | 801600100034 |
5.2 | Four-way valve coil |
802420590013 | 802420590013 | 802420590013 | 802420590013 |
6 | Line press plate | 801120890008 | 801120890008 | 801120890008 | 801120890008 |
7 | Air duct | 801220890153 | 801220890153 | 801220890153 | 801220890153 |
8 | Right side board assy of air duct |
801220890157 | 801220890157 | 801220890157 | 801220890157 |
9 | Indoor single axle motor |
802400400492 | 802400400495 | 802400400493 | 802400400503 |
10 | Indoor motor support |
801220890158 | 801220890158 | 801220890158 | 801220890158 |
11 | E-box left side board assembly |
801220890159 | 801220890159 | 801220890159 | 801220890159 |
12 | Groove clamp | 801102000020 | 801102000020 | 801102000020 | 801102000020 |
13 | Left and right fixing clamp components |
801220890167/ 801220890170 |
801220890167/ 801220890170 |
801220890167/ 801220890170 |
801220890167/ 801220890170 |
14 | Left and right parts of air duct |
801120890013/ 801120890014 |
801120890013/ 801120890014 |
801120890013/ 801120890014 |
801120890013/ 801120890014 |
15 | Outdoor motor support |
801220890144 | 801220890144 | 801220890144 | 801220890144 |
16 | Connection plate |
801220890166 | 801220890166 | 801220890166 | 801220890166 |
17 | Wind inlet guide | 801120890019 | 801120890019 | 801120890019 | 801120890019 |
18 | Outdoor single-axle motor |
802400400494 | 802400400494 | 802400400494 | 802400400494 |
19 | Wind inlet guide plate |
801220890190 | 801220890190 | 801220890190 | 801220890190 |

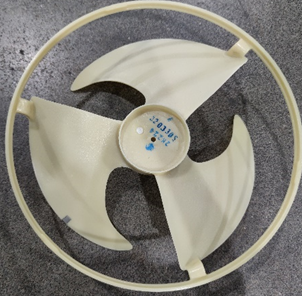

20 | Propeller fan | 801120890009 | 801120890009 | 801120890009 | 801120890009 |
21 | The check valve pre-welded components |
801620390095 | 801620590224 | 801620890193 | 801621190079 |
21.1 | One-way valve | 801600300055 | 801600300054 | 801600300054 | 801600300054 |
22 | Condenser | 801520390007 | 801520890038 | 801520890038 | 801520890038 |
23 | Condenser Baffles |
801220890146 | 801220890146 | 801220890146 | 801220890146 |
24 | Wall sleeve | 801220890203 | 801220890203 | 801220890203 | 801220890203 |
25 | Exterior Grille |
801220690038 | 801220690038 | 801220690038 | 801220690038 |
26 | Panel board support |
801220890164 | 801220890164 | 801220890164 | 801220890164 |
27 | Top cover | 801220890179 | 801220890179 | 801220890179 | 801220890179 |
28 | Seal board 2 | 801220890177 | 801220890177 | 801220890177 | 801220890177 |
29 | Air outlet | 801220890172 | 801220890172 | 801220890172 | 801220890172 |
30 | Fresh air inlet cover |
801220890150 | 801220890150 | 801220890150 | 801220890150 |
31 | Fresh air inlet filter |
801120890010 | 801120890010 | 801120890010 | 801120890010 |
32 | Fresh air inlet support |
801220890151 | 801220890151 | 801220890151 | 801220890151 |
33 | Fresh air inlet groove clamp |
801120890017 | 801120890017 | 801120890017 | 801120890017 |
34 | Fresh air inlet spring and tube |
802920890004/ 801120890028 |
802920890004/ 801120890028 |
802920890004/ 801120890028 |
802920890004/ 801120890028 |

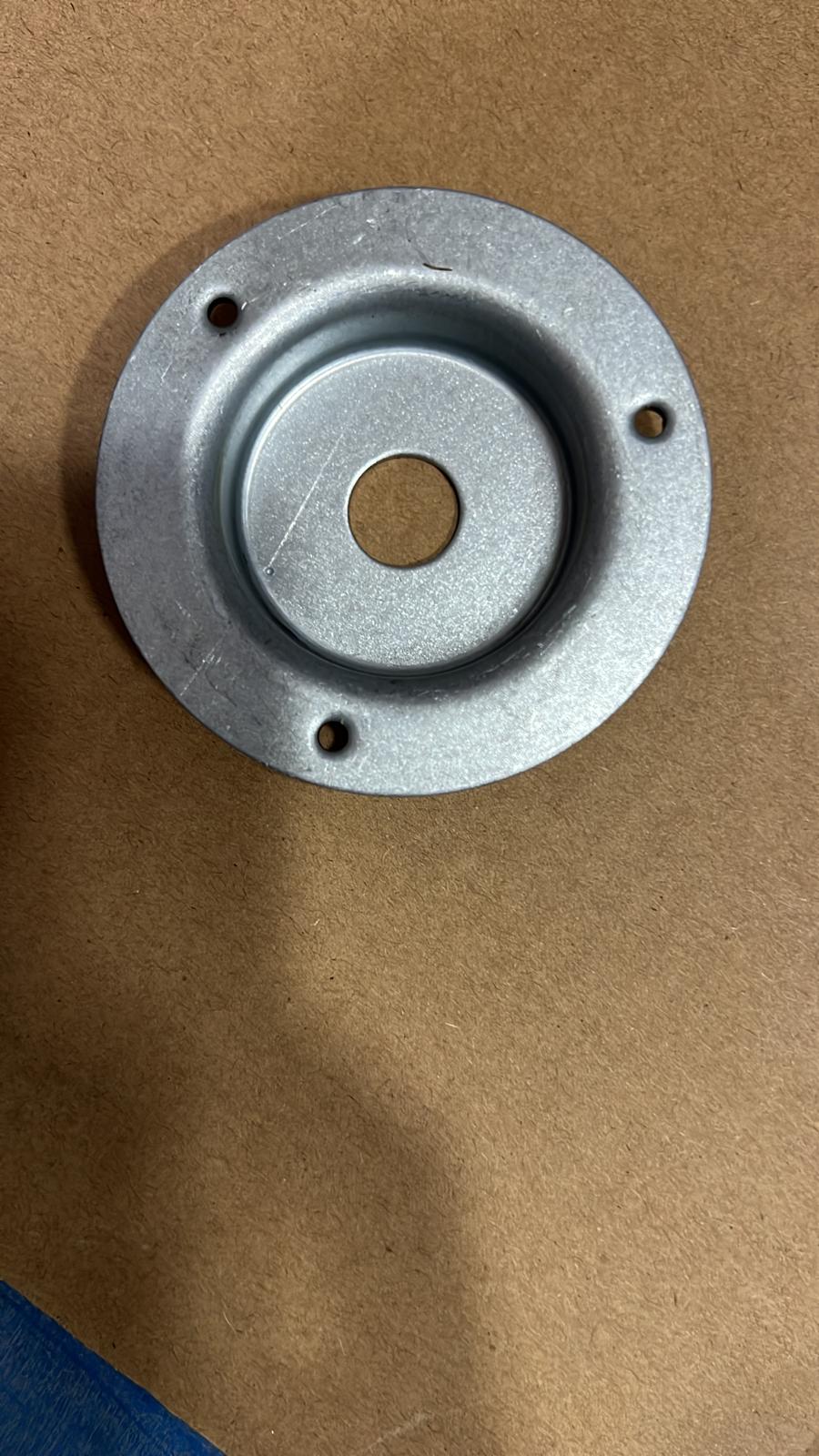

35 | Bearing / bearing fixed plate |
802720890002/ 801220890156 |
802720890002/ 801220890156 |
802720890002/ 801220890156 |
802720890002/ 801220890156 |
36 | Left side board assy of air duct |
801220890155 | 801220890155 | 801220890155 | 801220890155 |
37 | Fresh air inlet rail |
801120890012 | 801120890012 | 801120890012 | 801120890012 |
38 | Fresh air inlet lever |
801120890011 | 801120890011 | 801120890011 | 801120890011 |

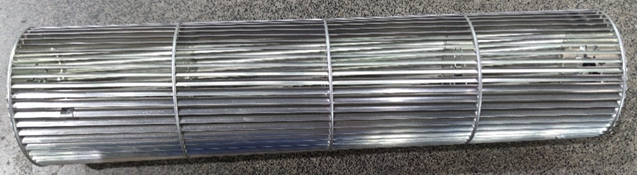

39 | Cross-flow fan | 802920890005 | 802920890005 | 802920890005 | 802920890005 |
40 | Septum plate assembly |
801220890148 | 801220890148 | 801220890148 | 801220890148 |
41 | Electric heating | 802402000108 | 802402000108 | 802402000108 | 802402000108 |
42 | Evaporator | 801520590052 | 801520590052 | 801520890039 | 801520890039 |
43 | Seal board 1 | 801220890175 | 801220890175 | 801220890175 | 801220890175 |
44 | Panel components |
801120890020 | 801120890020 | 801120890020 | 801120890020 |
44.1 | Front panel | 801120890021 | 801120890021 | 801120890021 | 801120890021 |
44.2 | Fixing panel clamp |
801220890192 | 801220890192 | 801220890192 | 801220890192 |

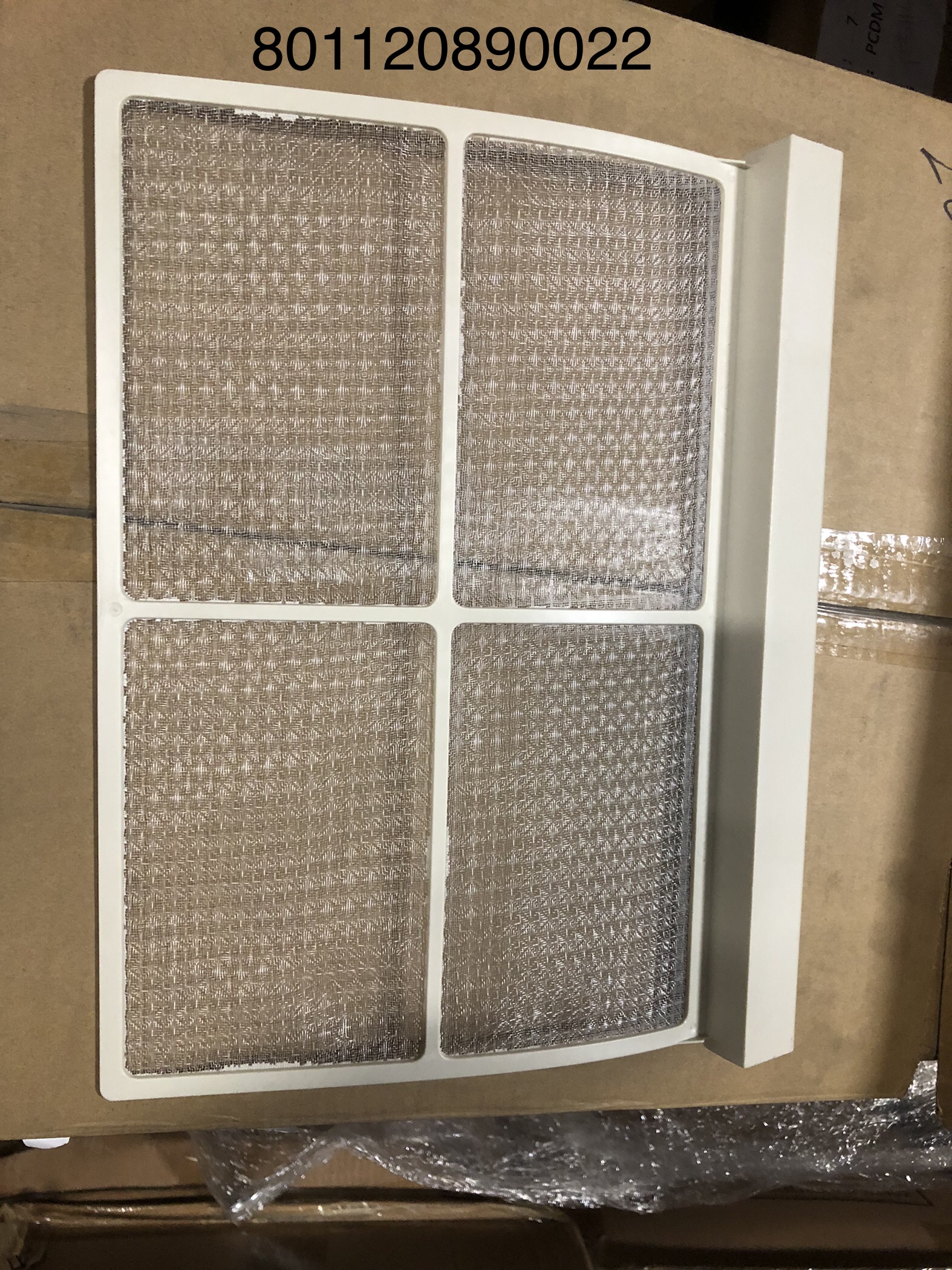

44.3 | Filter net | 801120890022 | 801120890022 | 801120890022 | 801120890022 |
44.4 | Filter net rail | 801120890023 | 801120890023 | 801120890023 | 801120890023 |

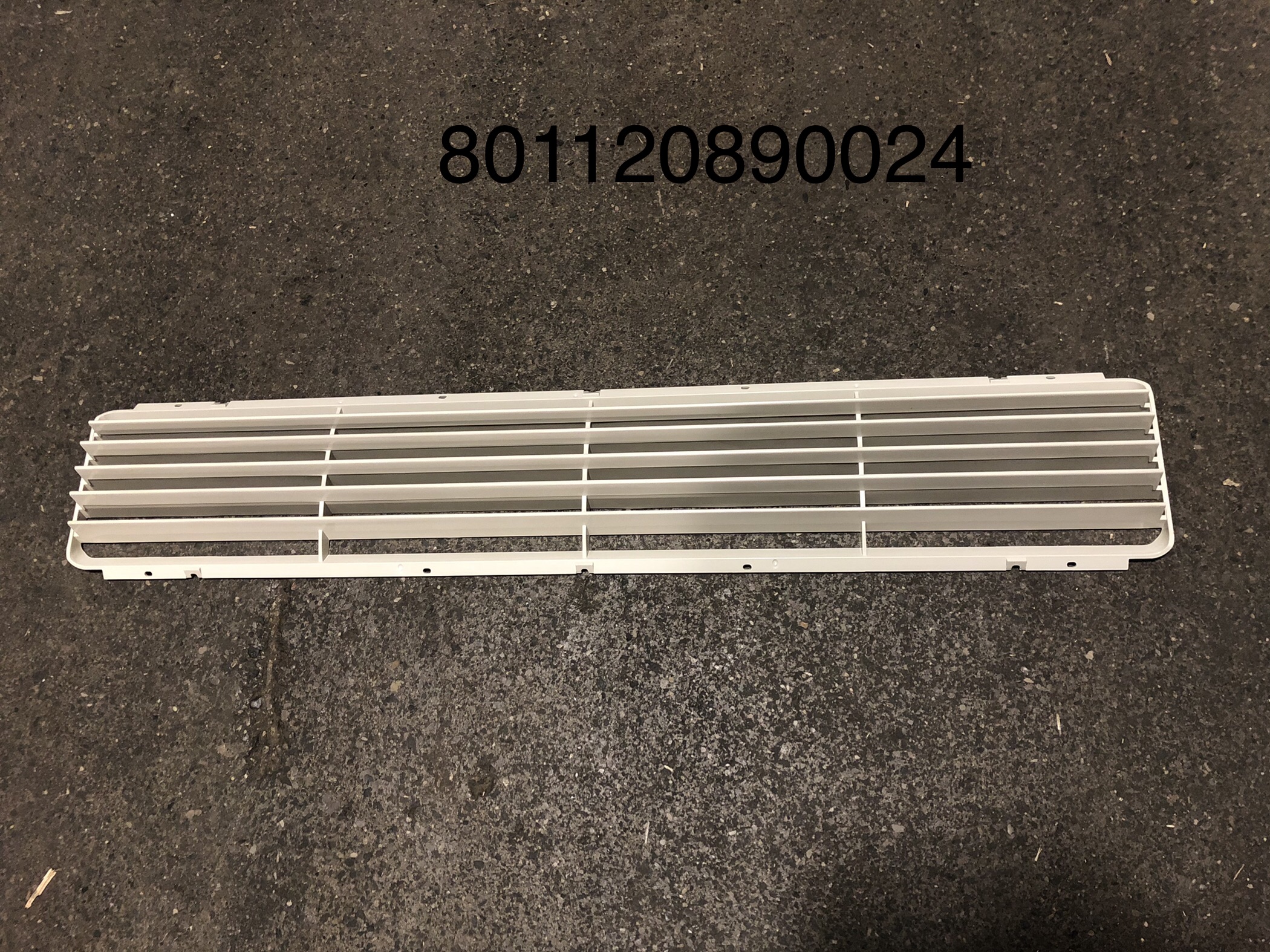

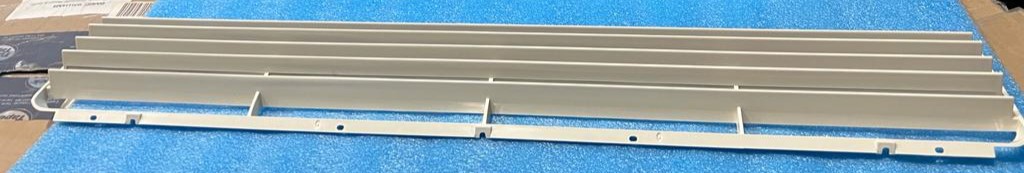

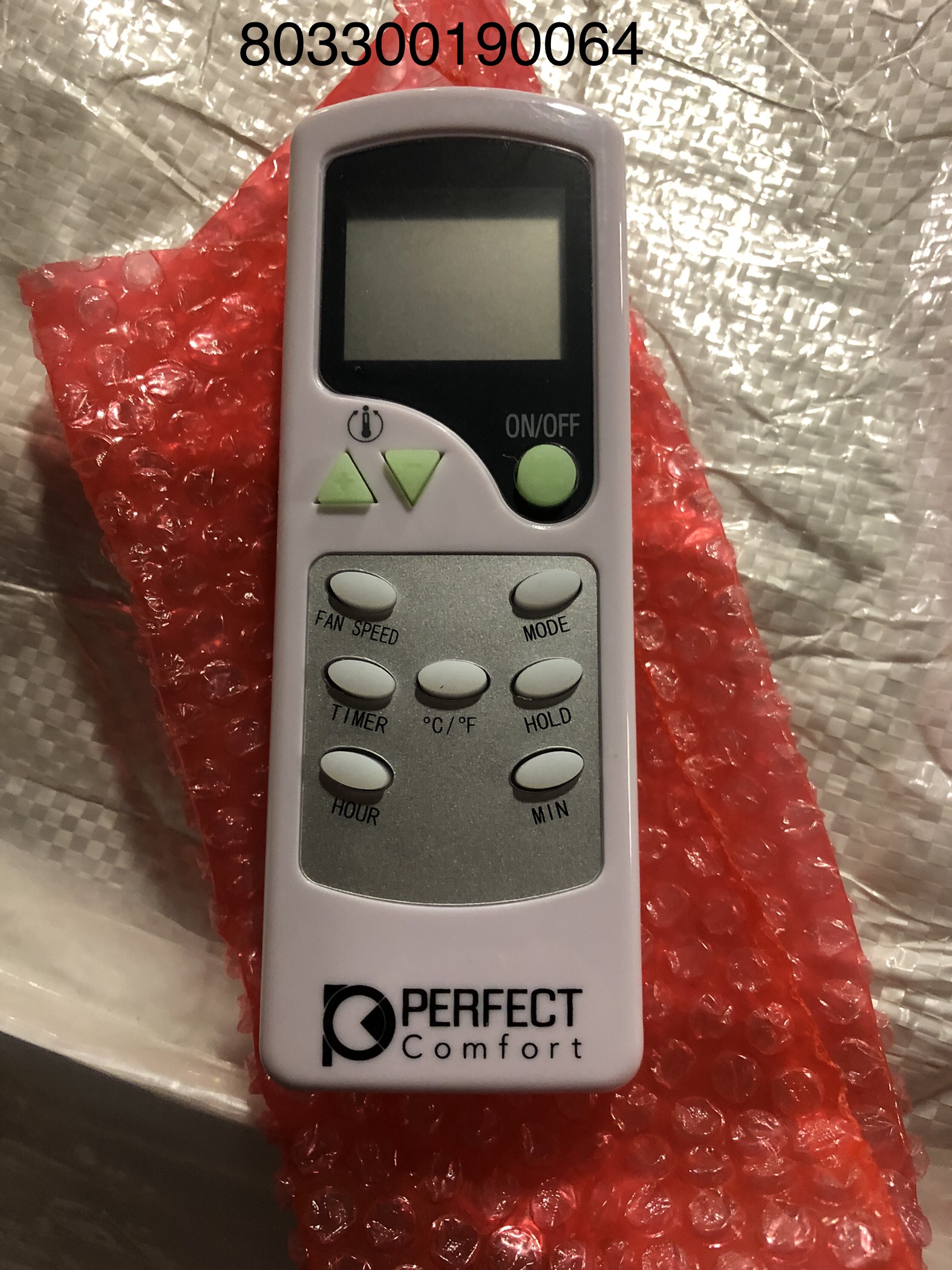

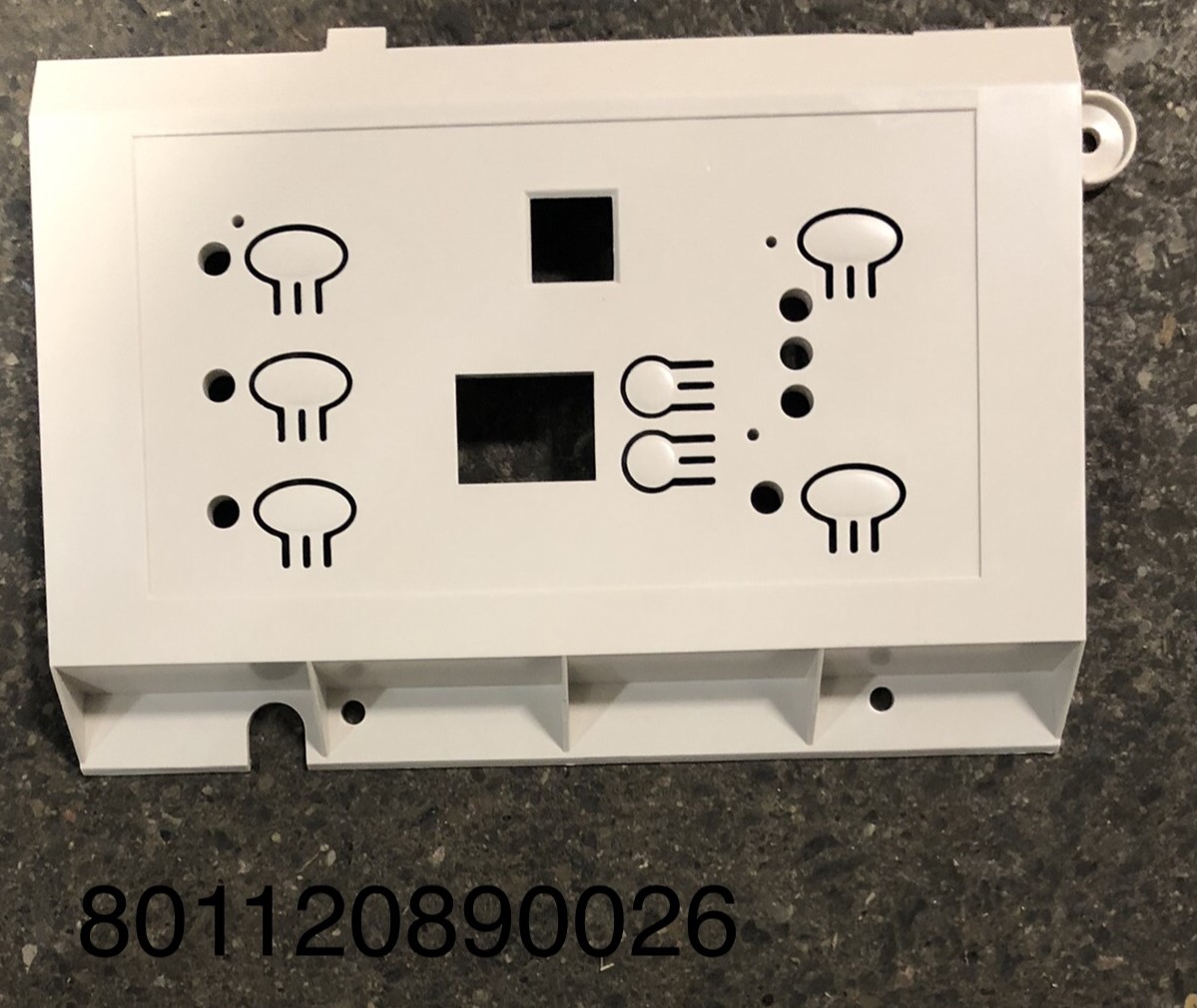

44.5 | Air outlet grill | 801120890024 | 801120890024 | 801120890024 | 801120890024 |
44.6 | Panel cover | 801120890025 | 801120890025 | 801120890025 | 801120890025 |
45 | Control board assembly |
803320890024 | 803320890024 | 803320890024 | 803320890024 |
45.1 | Electrical box | 801120890026 | 801120890026 | 801120890026 | 801120890026 |

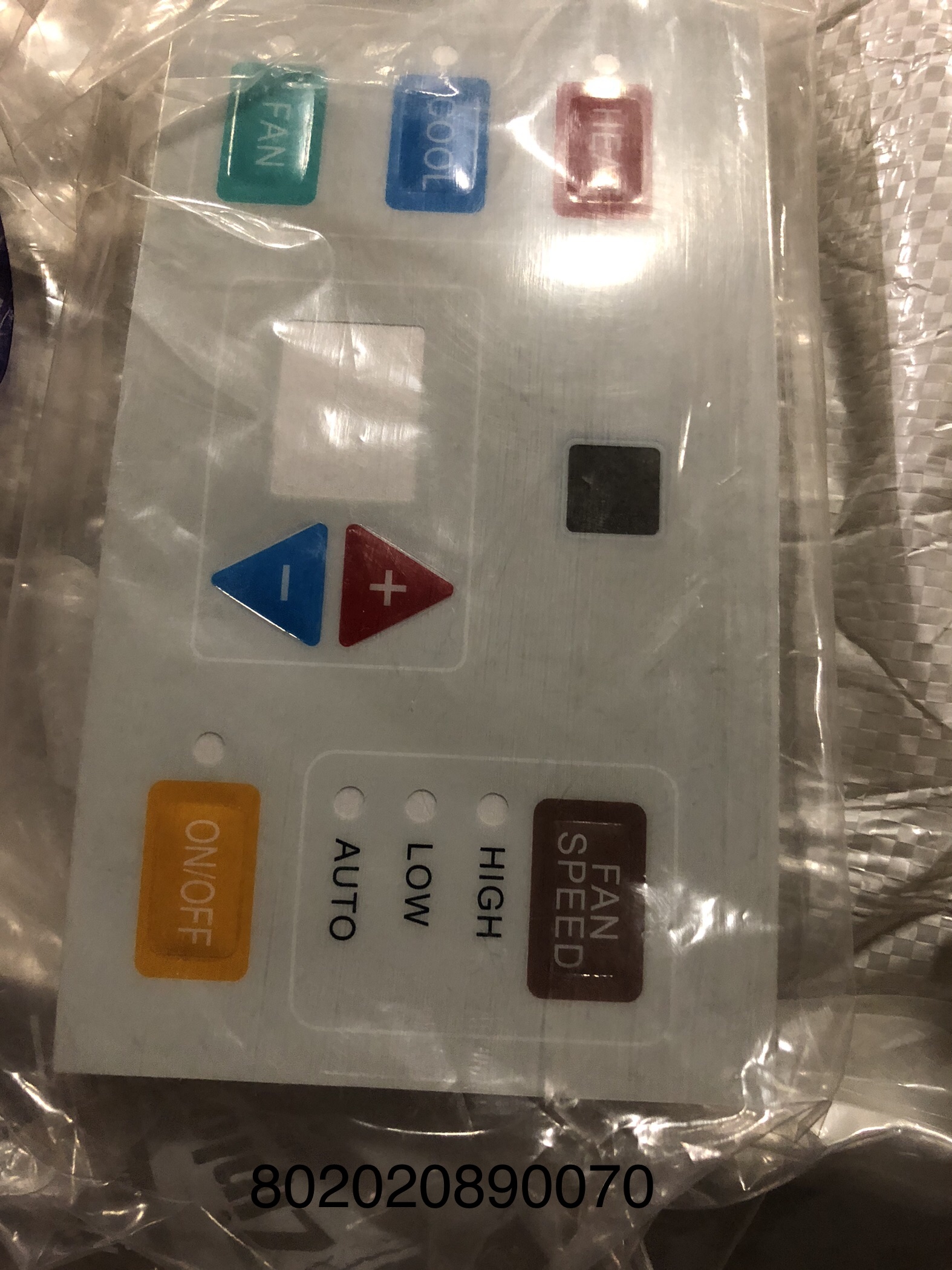

45.2 | Control mask | 802020890070 | 802020890070 | 802020890070 | 802020890070 |

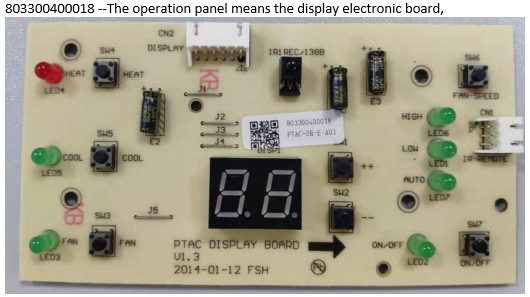

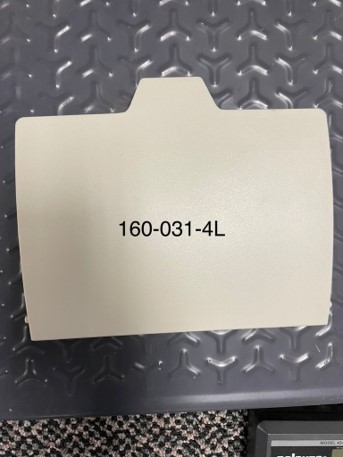

45.3 | Control board | 803300400018 | 803300400018 | 803300400018 | 803300400018 |
46 | Electrical box flip | 801220890162 | 801220890162 | 801220890162 | 801220890162 |

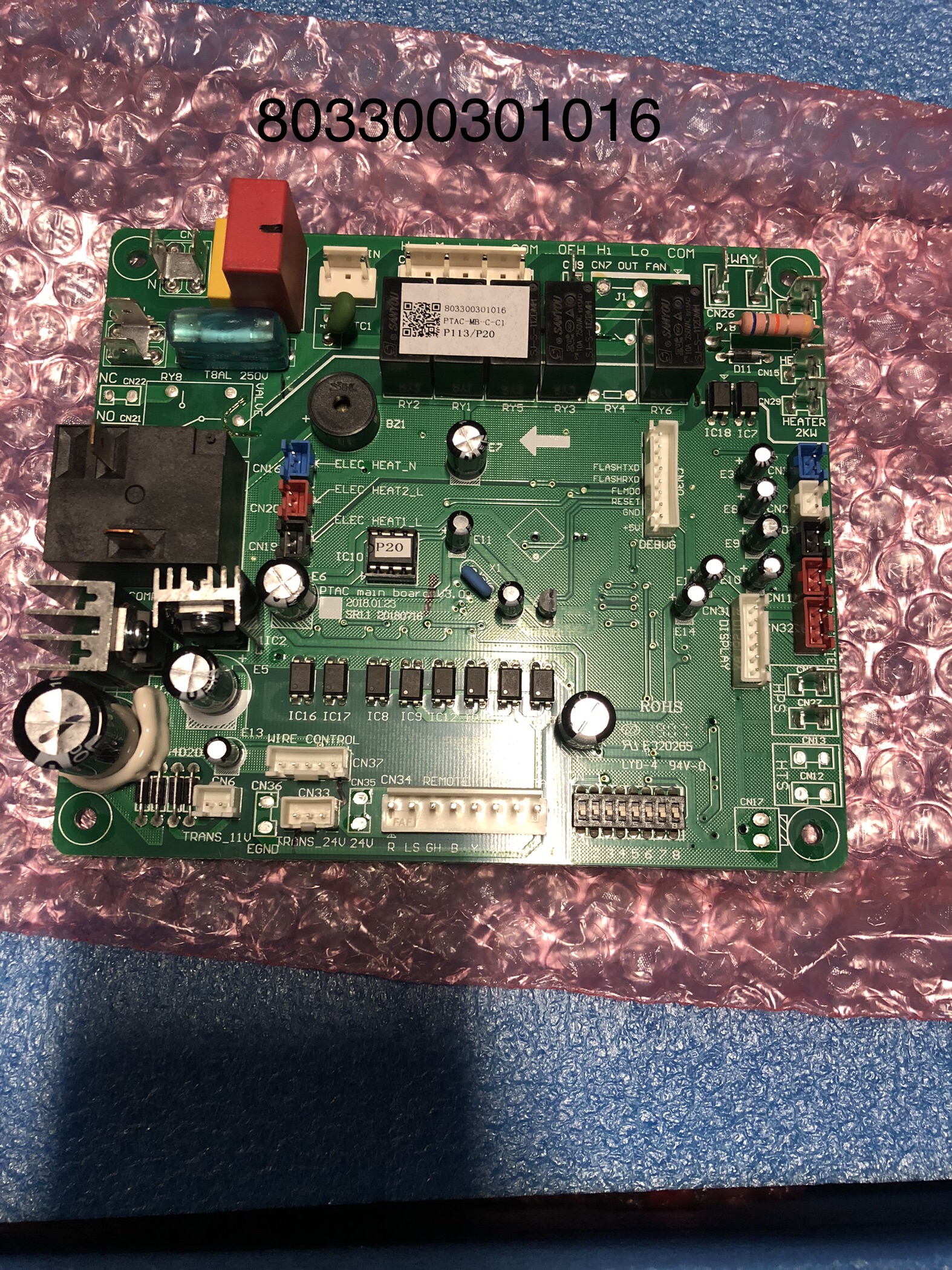

47 | PCB | 80330030892 | 80330030892 | 80330030892 | 80330030892 |
48 | Transformer | 802300200040 | 802300200040 | 802300200040 | 802300200040 |
49 | Capacitor clamp | 801200100006 | 801200100005 | 801200100005 | 801200100005 |

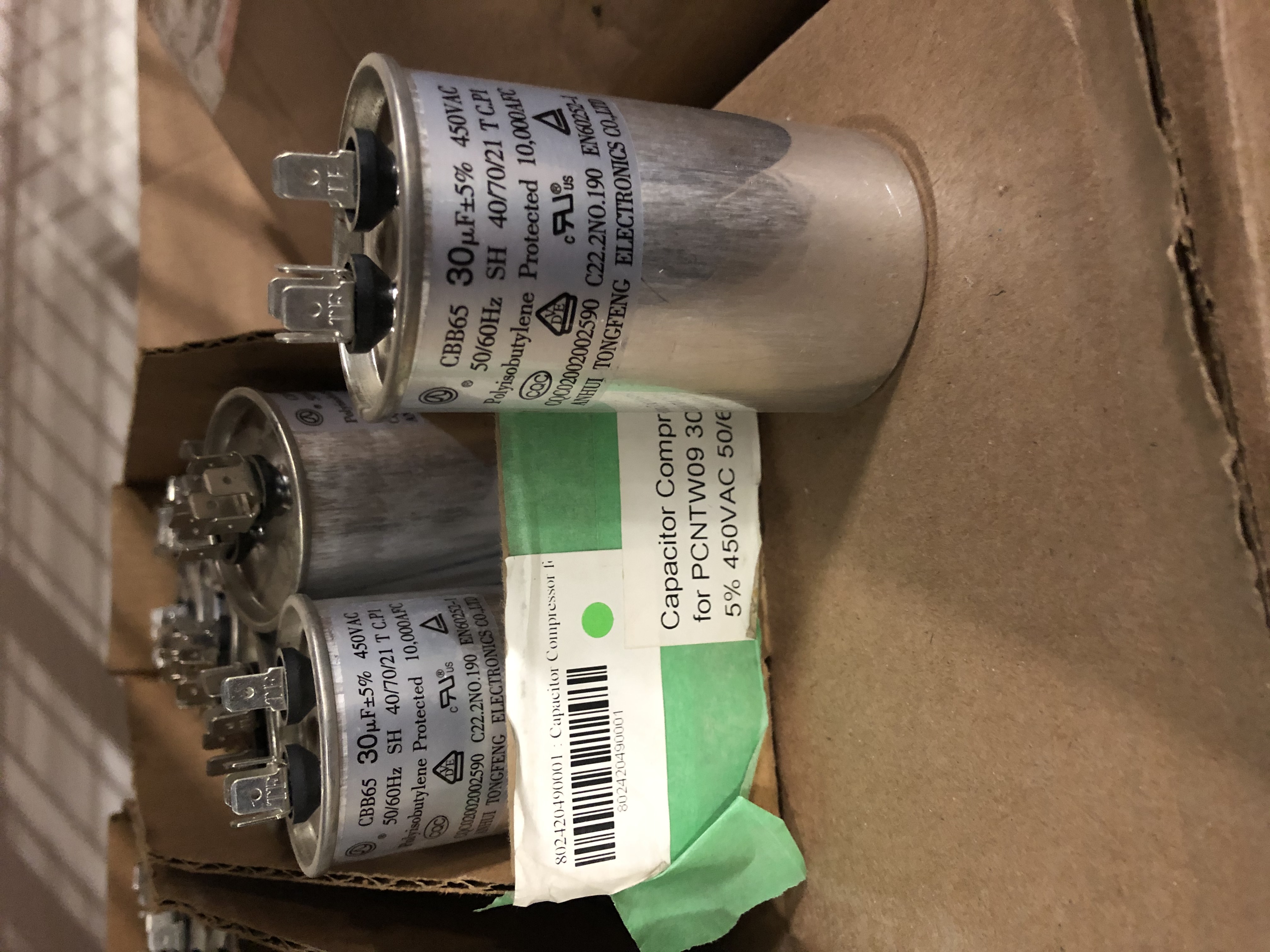

50 | Compressor capacitor |
802401000023 | 802401000039 | 802420490001 | 802401000039 |
51 | Indoor motor capacitor/ Outdoor motor capacitor |
802401100049/ 802401100037 |
802401100050/ 802401100037 |
802401100049/ 802401100037 |
802401100049/ 802401100037 |
52 | Air outlet protection grid |
802920890003 | 802920890003 | 802920890003 | 802920890003 |

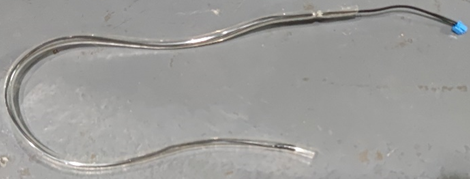

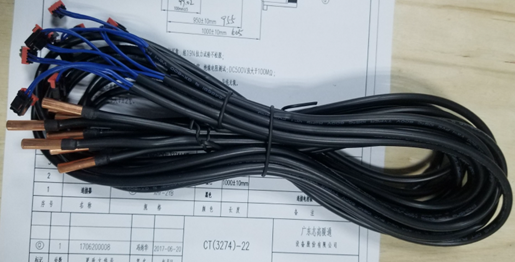

54 | Indoor temperature sensor" |
802300400077 | 802300400077 | 802300400077 | 802300400077 |
55 | Outdoor temperature sensor |
802300400129 | 802300400129 | 802300400129 | 802300400129 |
57 | Air return temp. sensor |
802300400128 | 802300400128 | 802300400128 | 802300400128 |
58 | LCDI Power cord |
802421290007 | 802421290007 | 802421290007 | 802421290007 |
59 | Compressor connecting wire |
802421290011 | 802421290011 | 802421290011 | 802421290011 |
PCNTW07K3H5T | PCNTW09K3H5T | PCNTW12K3H5T | PCNTW15K3H5T |
